Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JDR
-
Model Number:
-
FY017
-
Torque:
-
Requests
-
Color:
-
Ivory or Silvery
-
Function:
-
Driving
-
Size:
-
Compact, small
-
Shape:
-
Linear
-
Voltage:
-
12V/24V
-
Load capacity:
-
max 1200N
-
Speed:
-
5-40mm/s
-
Stroke:
-
50-1000mm
-
Limit switch:
-
Inner
-
Protection class:
-
IP65
Quick Details
-
Speed(RPM):
-
Variable Speed
-
Continuous Current(A):
-
0.1A-5A
-
Efficiency:
-
high precision
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JDR
-
Model Number:
-
FY017
-
Torque:
-
Requests
-
Color:
-
Ivory or Silvery
-
Function:
-
Driving
-
Size:
-
Compact, small
-
Shape:
-
Linear
-
Voltage:
-
12V/24V
-
Load capacity:
-
max 1200N
-
Speed:
-
5-40mm/s
-
Stroke:
-
50-1000mm
-
Limit switch:
-
Inner
-
Protection class:
-
IP65

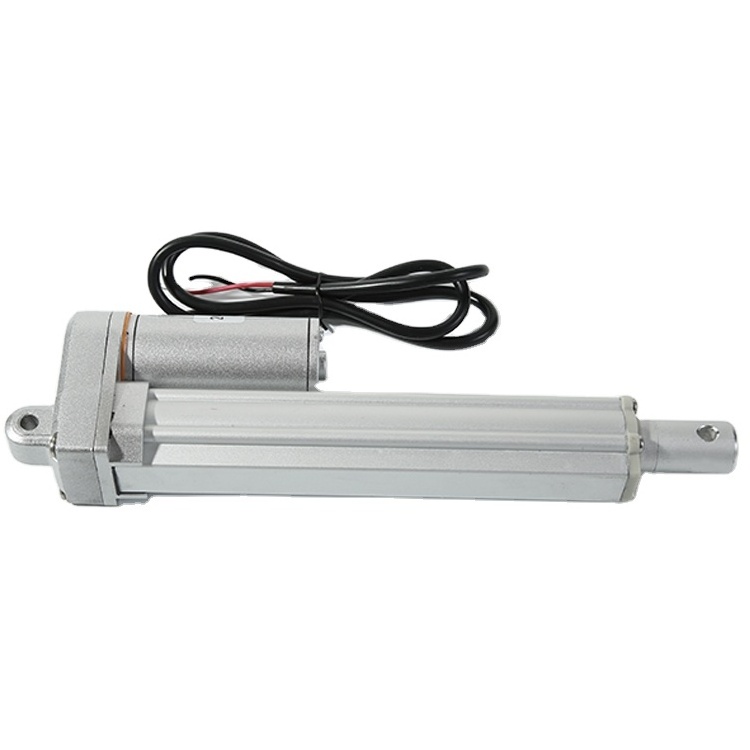

*Designed for use with torque arm system
*Compact size
*Safe, low voltage operator, 24v or 12V
Specifications:
1) Voltage: 24VDC or 12VDC
2) Capacity: 250N /500N/750N/1000N
3) Max Speed: 15mm/s
4) Stroke: 50mm ~ 650mm
5)Type of duty: 10% or 2 minutes continuous use followed
by 18 minutes not in use
6) Protection class: IP65
7) With potentiometer , 5 cable lines outside
7) Built-in limit switches, not adjustable after leave factory
8) Certification: CE, RoHS
Features :
1) Powder Coated Steel Outer Tube
2) Lubrication for life time
3) Aluminum extension and outer tubes
4) Enhanced Corrosion Resistance
5) Powder Coated Aluminum Alloy Housing
| The max load | 100-1500N |
| The max stroke length | 50-1000mm |
Quality Guarantee
We provide 1 year warranty for JDR Linear Actuators.
We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.
Maintenance service
No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.
JDR
QC Team
JDR QC team consists of more than 10 professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, by fax or by Instant message.
We will reply your email or fax within 18 hours.
Please feel free to call us at any time if there is any question.
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
