Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WBQ
-
Model Number:
-
WBQ DD76X1200L/1600L/1800L/2000L
-
Diameter:
-
76mm , 114mm
-
材料来源:
-
China Steel
-
Surface treatment:
-
DIN EN ISO 1461-1999
-
Application:
-
solar racking system, construction foundation
-
Certificate:
-
TUV/BV/CE/ISO9001
-
OEM/ODM:
-
Available
Quick Details
-
Material:
-
Steel
-
Length:
-
1800MM
-
Capacity:
-
5T
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WBQ
-
Model Number:
-
WBQ DD76X1200L/1600L/1800L/2000L
-
Diameter:
-
76mm , 114mm
-
材料来源:
-
China Steel
-
Surface treatment:
-
DIN EN ISO 1461-1999
-
Application:
-
solar racking system, construction foundation
-
Certificate:
-
TUV/BV/CE/ISO9001
-
OEM/ODM:
-
Available
Foundation Ground Screws Steel Earth Anchor Helical Piles
Parameter
| Specifications | |||||
| Shaft Size （inch) | Wall Thick(inch) | Helix Thick(inch) | Lead Length(ft) | Helix size (inch) | Extension Length(ft) |
| 2.875 OD | 0.262 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 3.00 OD | 0.238 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
|
3.50 OD |
0.254/0.300 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 4.50 OD | 0.290/0.337 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 5.50 OD | 0.362 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |
| 6.625 OD | 0.562 | 3/8 or 1/2 | 3ft/5ft/7ft/10ft | 8/10/12/14 | 3ft/5ft/7ft/10ft |

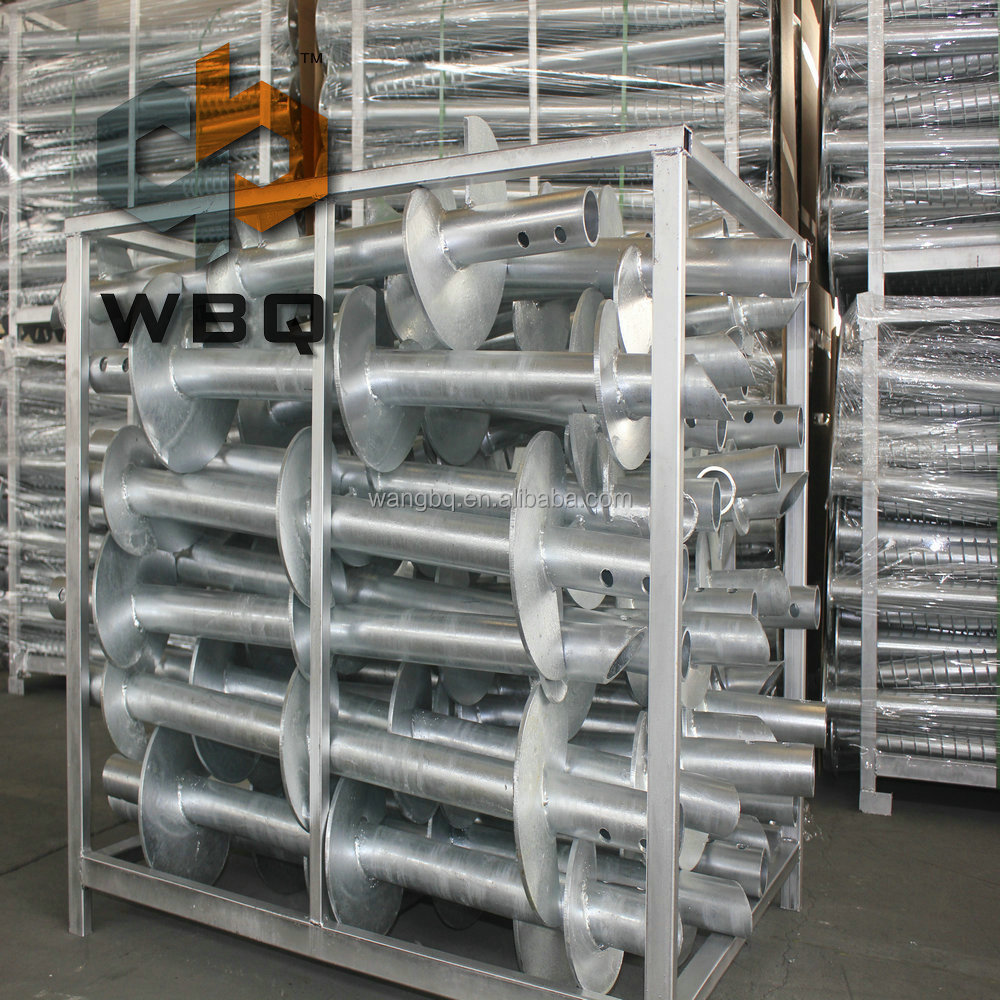

Products Picture Show
WBQ Ground Screw Series
Advantage of WBQ GROUND SCREW
|
1 ) The WBQ Ground Screw System sets new standards for safe, fast, and affordable construction projects |
|
2) The WBQ Ground Screws are installed in a matter of minutes with no digging and no concrete |
|
3 )The WBQ ground screw can be widely used in all types of soil (sandy, clay, and gobi desert ,rock and so on ).It cost only 1/4 abour and 1/3 raw material of that using cement foundation |
|
4 )OEM service available |
|
5 )The Ground Screws are statically tested and have been approved by LGA in Germany. |
Applications of ground screws:
1) Timber Construction
2) Solar Power Systems
3) City and Parks
4) Fencing Systems
5) Road and Traffic
6) Sheds and Containers
7 ) Flag Poles and Marks
8 ) Garden and Leisure
9 ) Boards and Banners
10 ) Event Structures
Ground Screw Process Technic:
About the WBQ Ground Screws:
1)Compatibility with all type of structures.
Our technical department will adapt the head of our ground screw piles to whatever the need of the customer is.
2)Foundation solution concrete free
There´s not necessary the use of concrete.
3) Surround areas remains unspoiled
The special configuration of our product allows the insertion without perfoming land preparation works, which allows a significant cost reduction.
4)Easy removel,simple and easy to relocate.
One of the main advantages of our ground screw piles is the possibility of removing them, reducing the environmental impact and minimazing the removing costs.
5)Quality
Our ground screw piles are manufactured with first quality materials (hot dip galvanized complying with the ISO 1461:1999). All our suppliers (certified under ISO 9001:2000) carry out strict quality controls in order to get the best quality performance as required by our internal procedures.
