Quick Details
-
Brand Name:
-
Zhenying
-
Voltage:
-
380V 220V or optional
-
Dimension(L*W*H):
-
500*500*1000MM as your require
-
Certification:
-
ISO9001:2008 CE
-
Colour:
-
white,blue as your demend
-
OEM:
-
Available
-
Instruction:
-
Available
-
Phase: 1.2.3 phase:
-
1.2.3 phase
-
Hopper size:
-
860x900x1800mm
-
Pipe angle:
-
General 0--25 degree special design is avaiable
-
Discharge Height:
-
General1800mm,and other size available
-
Mterial:
-
stainless steel or carbon steel
-
Design:
-
Well Design
-
Waranty:
-
13months
Quick Details
-
Power:
-
0.75-3kw
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhenying
-
Voltage:
-
380V 220V or optional
-
Dimension(L*W*H):
-
500*500*1000MM as your require
-
Certification:
-
ISO9001:2008 CE
-
Colour:
-
white,blue as your demend
-
OEM:
-
Available
-
Instruction:
-
Available
-
Phase: 1.2.3 phase:
-
1.2.3 phase
-
Hopper size:
-
860x900x1800mm
-
Pipe angle:
-
General 0--25 degree special design is avaiable
-
Discharge Height:
-
General1800mm,and other size available
-
Mterial:
-
stainless steel or carbon steel
-
Design:
-
Well Design
-
Waranty:
-
13months

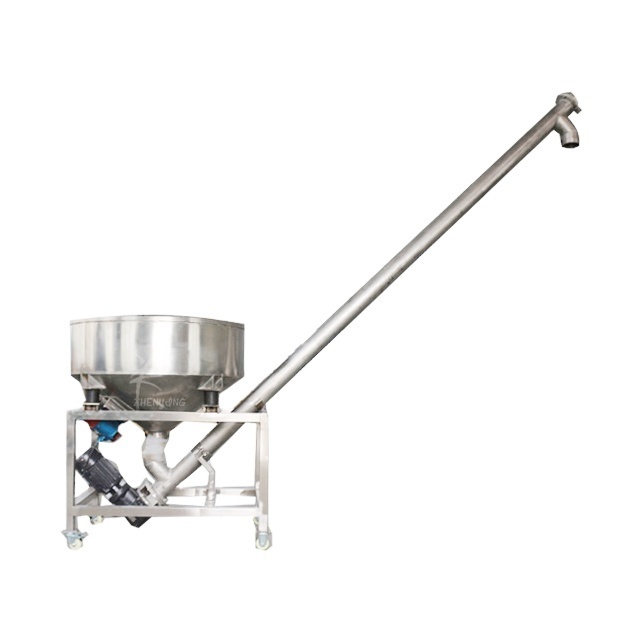

Small grain screw augers conveyor with hopper
Screw conveyor machine
Screw sprial and hopper
Stainless steel hopper for screw conveyor
Description
Small grain screw augers conveyor with hopper are of simple, relatively low cost construction compared to other conveyor systems.
It consist of a helical flight fastened around a pipe or solid shaft, mounted within a tubular or U-shaped trough. As the screw rotates,material heaps up in front of the advancing flight and is pushed through the trough.Particles in the heap next to the flight surface are carried part way up the flight surface,and then flow down on the forward-moving side of the heap.Products can be conveyed and elevated at the same time by mounting a screw conveyor at an incline. This is often desirable because it covers two operations with one piece of equipment therefore saving space and reducing downtime,maintenance cost, etc. A standard Electric Screw Conveyor will often operate normally at angles up to 15º with only a small loss in capacity.
Application
Small grain screw augers conveyor with hopper suitable for bulk material(cement, sand, gravel, grain, fertilizer, sugar, salt, cookies etc).
Features
1.The large bearing capacity, safe and reliable.
2.Strong adaptability, easy installation and maintenance, long service life.
3.The machine is small in size, high speed, ensure rapid delivery uniformity.
4.The discharge end is equipped with cleaning device, low noise, strong adaptability, in and out of the mouth position arranged flexibly.
5.Good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity.
Parameter
|
Screw conveyor Model |
Main Motor Power (KW) |
Products Pushing Motor (KW) |
Tube Diameter (MM) |
Screw Speed (RPM)
|
Control Type |
Conveying Height (MM) |
Capacity (kg/h) |
Loading Hopper Dimension
|
||
|
GX-100 |
1.5 |
N/A |
89 |
360 |
Adjustable Accel/Decel |
1900 |
50-100 |
600 |
600 |
600 |
|
GX-300 |
1.5 |
N/A |
102 |
360 |
Adjustable Accel/Decel |
1900 |
200-300 |
600 |
600 |
600 |
|
GX-1000 |
1.5-6 |
0.55 |
114 |
360 |
Adjustable Accel/Decel |
2500 |
1000 |
800 |
880 |
800 |
|
GX-1500 |
2.2-10 |
N/A |
141 |
360 |
Adjustable Accel/Decel |
2800 |
1000-1500 |
800 |
800 |
1000 |
Production flow:
For our standard Small grain screw augers conveyor with hopper m odel
