Quick Details
-
Place of Origin:
-
Henan, China
-
Product name:
-
Industrial Remote Control
-
Model:
-
C-E1Q
-
Usage:
-
Crane/Hoist/Lifting machine/elevator/
-
Frequency:
-
310.0325-331.165MHz(VHF)
-
Feature:
-
Water Proof
-
Transmitter Voltage:
-
6V
-
Receiver Voltage:
-
AC380/220V/36V, DC24V
-
Control distance:
-
Up to 100m
-
Certificate:
-
CE FCC ISO-9001
Quick Details
-
Function:
-
Waterproof, Single Speed
-
Brand Name:
-
Electronic
-
Model Number:
-
C-E1Q
-
Place of Origin:
-
Henan, China
-
Product name:
-
Industrial Remote Control
-
Model:
-
C-E1Q
-
Usage:
-
Crane/Hoist/Lifting machine/elevator/
-
Frequency:
-
310.0325-331.165MHz(VHF)
-
Feature:
-
Water Proof
-
Transmitter Voltage:
-
6V
-
Receiver Voltage:
-
AC380/220V/36V, DC24V
-
Control distance:
-
Up to 100m
-
Certificate:
-
CE FCC ISO-9001
Product Overview

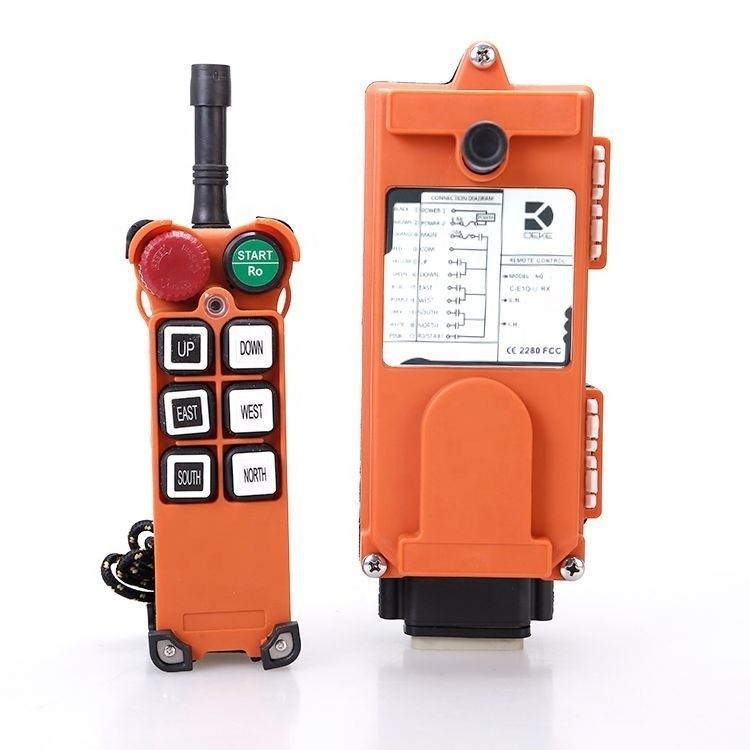

The industrial radio remote control operates exactly like the pendant but operates using a radio frequency instead of control cables attached to the crane ,the radio control system is comprised of two main components: the radio transmitter (handheld device) and the radio receiver( control box attached to crane or hoist) the radio control incorporates numerous safety features and allows the operator a greater range mobility than a pendant station.
Technical data
Housing Materail
|
glass fiber-reinforced nylon-6
|
Protection Degree
|
IP65
|
Operation temperature
|
-35°C ~ +85°C(Regardless of the battery temperature tolerance)
|
Power Supply for emitter
|
Two 1.5 volts Batteries(AA Size)
|
Number of buttons
|
6 Single speed buttons,1 START button,1 mushroom button
|
I.D.Code
|
over 4.3 billion
|
Operating Frequency
|
310.0325-331.165MHz
425.5925-446.9925MHz |
Channel Spacing
|
0.2675MHz
|
Channel
|
80CH
|
RF Power
|
<10DBm
|
Number of relay
|
8
|
Maximum control distance
|
200M
|
Voltage for receiver
|
AC380/220/110/36V or DC24/12/6V
|
Power consumption
|
Less than 3W
|
Output Capacity
|
5 A Fully Sealed Relay Output (Use AC 250V / 10A Relay, 5 A Fuse)
|
Size and Weight
|
Emitter
|
Receiver
|
Size
|
156x56x49mm
|
187x86x79mm
|
Weight
|
211g
|
624g
|
Product packaging
1. One transmitter;
2. One receiver;
3. One 1m cable connect with receiver
4. One operation and maintain manual(English Version).
2. One receiver;
3. One 1m cable connect with receiver
4. One operation and maintain manual(English Version).
Company profile
Henan Dirk Electronic Co., Ltd was established in November 2015.We are a new &high-tech company that specializes in the research and development, production and selling of industrial wireless remote control products and components. The production and office area is nearly 2,000 square meters .We have more than 100 employees , including 30 junior ,intermediate and senior engineers. Average age of staff is about 26 years old and we are a dynamic, vigorous and young team.
Dirk electronic have three advanced production lines : SMT production line,BGA professional production line ,DIP production line .
1.SMT production line:Automatic Unloader machine,printing machine, Chip Mounter, reflow soldering , AOI detector.
2.BGA professional production lines are: constant temperature humidity chamber, ovens, X-Ray specialized detector, BGA rework station.
3.DIP production line : plug-in line, wave soldering, final welding line
1.SMT production line:Automatic Unloader machine,printing machine, Chip Mounter, reflow soldering , AOI detector.
2.BGA professional production lines are: constant temperature humidity chamber, ovens, X-Ray specialized detector, BGA rework station.
3.DIP production line : plug-in line, wave soldering, final welding line
Advanced production equipment, high-quality products and efficient team make company greatly enhance its overall strength and top in the same industry-leading level .Dirk Electronic initiated mold design, manufacturing, injection molding production lines in 2015 ,too. They provide comprehensive facilities bases for company's own remote control production. From parts to finished product, we can complete design independently and sell directly.
Our products have approval of ISO9001-2008 international quality management system certification . Knowledgeable and professional management team make products more scientific, standardized and humane from the design, stereotypes, production, testing, sales to after-sales service . And Our products have accessed CE , FCC ,"utility model patents", "Design Patent" and many other authoritative certificates . Enterprise sticks to the business philosophy of " Pursuing survival with quality, Promoting Development with Technology" , which promotes our products towards the path of subtilized and fine .
Keeping on “advanced technology ” , focus on technology research and development, to maintain product innovation are all our concept all the time, and we achieved fruitful results. Now the company has a stable and strong partner in supplier and marketing, meanwhile, more strategic partner in the high-tech filed make us lay a solid foundation for the continuous development of Dirk Company.
