Quick Details
-
Voltage:
-
220V/380V, 380V
-
Dimension(L*W*H):
-
Refer to specifications
-
Weight:
-
KG
-
Product name:
-
vibrating gold sluice
-
Application:
-
Alluvial Gold Washing
-
Usage:
-
Mining Concentration
-
Capacity:
-
20-35 m3/h
-
Installation:
-
Technical Guidance
-
Water consumption:
-
40-80 m3/h
Quick Details
-
Production Capacity:
-
90%
-
Place of Origin:
-
China
-
Brand Name:
-
Oasis
-
Voltage:
-
220V/380V, 380V
-
Dimension(L*W*H):
-
Refer to specifications
-
Weight:
-
KG
-
Product name:
-
vibrating gold sluice
-
Application:
-
Alluvial Gold Washing
-
Usage:
-
Mining Concentration
-
Capacity:
-
20-35 m3/h
-
Installation:
-
Technical Guidance
-
Water consumption:
-
40-80 m3/h
Product Description

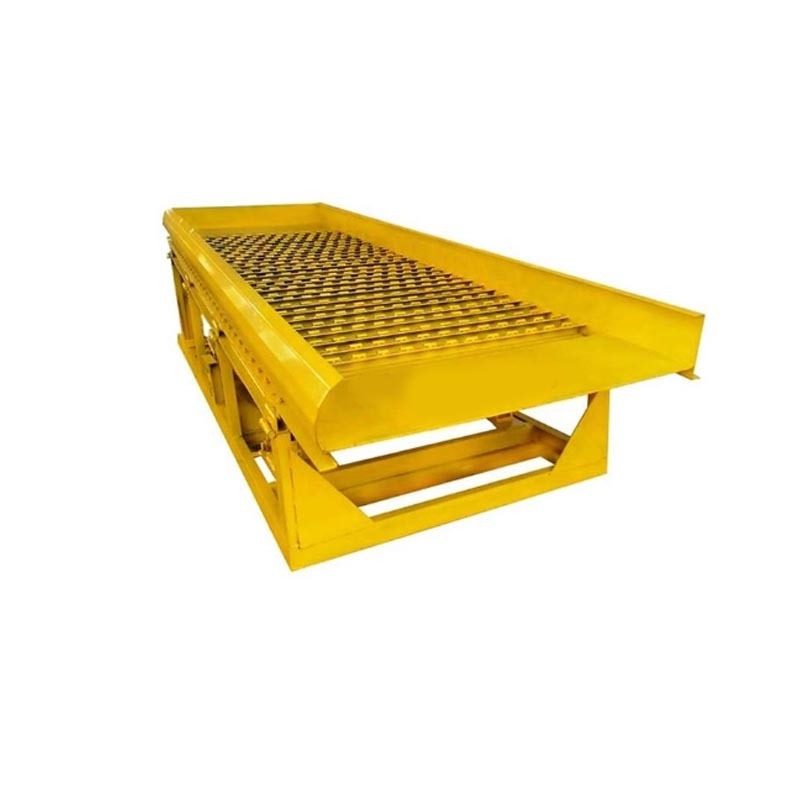

The vibrating gold sluice is composed by the mine tank,sluice box,rubber plate,push frame,lifting device,transmission and motor etc.
Descriptions
The vibrating gold sluice is composed by the mine tank,sluice box,rubber plate,push frame,lifting device,transmission and motor etc. Most of gold exists as the micro fine gold in the nature. The fixed sluice box and gold rush grass are suitable for coarse gold,but not the micro fine gold.The fine gold is easy to floating on the water and discarded as tailings.
Descriptions
The vibrating gold sluice is composed by the mine tank,sluice box,rubber plate,push frame,lifting device,transmission and motor etc. Most of gold exists as the micro fine gold in the nature. The fixed sluice box and gold rush grass are suitable for coarse gold,but not the micro fine gold.The fine gold is easy to floating on the water and discarded as tailings.
How to recycling the micro fine gold effectively? Vibrating sluice has motor power,vibrating frequency with 28-30 per minutes,small angle installation slope,water flow is lower,thus micro fine gold easily deposition. Grooved sluice box has new designed grid and riffles,causing lots of eddy currents increasing the gold separation time as well as polishing and washing the gravel and solids.
Application
1.Reasonable structural design, convenient for transporting;
2.High degree of automation, Multi-machine joint working high gold handling capacity with the daily capacity up to 2,000 m3;
3.Suitable for various areas, washing and separation are excellent in muddy areas of mines; It can also be suitable for processing minerals that may contain gravels and boulders;
4.Applicable to recycling bar gold, nuggets,slices and gold particles;
5.High degree of washing and recovery rate.
Specification
|
Model
|
FGS-12
|
FGS-15
|
|
Dimension (mm)
|
3200x1200x730
|
4000x1500x730
|
|
Capacity (m³/h)
|
20-25
|
30-35
|
|
Feeding size (mm)
|
<20
|
<20
|
|
Slurry density (%)
|
30
|
30
|
|
Water required (m³/h)
|
40-50
|
60-80
|
|
Motor power (KW)
|
Driving motor 1.1kw
Lifting motor 0.8KW
|
Driving motor 2.2kw
Lifting motor 0.8KW
|
|
Recovery (%)
|
90
|
90
|
|
Frequency (shift/min)
|
28-30
|
28-30
|
|
Slope angle for installation
|
6°-7°
|
6°-7°
|
|
Concentration Cleaning Up Cycle (h)
|
4
|
4
|
|
Weight (kg)
|
750
|
1100
|
