Quick Details
-
Brand Name:
-
NEW KCLKA
-
Power:
-
150kw
-
Weight:
-
23800KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Application:
-
Sole
-
Applicable to:
-
Make Sports Shoes
-
Raw material:
-
EVA RAW MATERIAL
-
Advantage:
-
High Speed
-
Workstations:
-
2/4/6/8/10 Stations
-
Moulding place:
-
Toe Cap
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Turkey, Peru, Mexico
-
Certification:
-
CE
Quick Details
-
Production Capacity:
-
4000-8000p
-
Voltage:
-
380v/220v.3p.50hz/60hz
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NEW KCLKA
-
Power:
-
150kw
-
Weight:
-
23800KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Application:
-
Sole
-
Applicable to:
-
Make Sports Shoes
-
Raw material:
-
EVA RAW MATERIAL
-
Advantage:
-
High Speed
-
Workstations:
-
2/4/6/8/10 Stations
-
Moulding place:
-
Toe Cap
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Turkey, Peru, Mexico
-
Certification:
-
CE

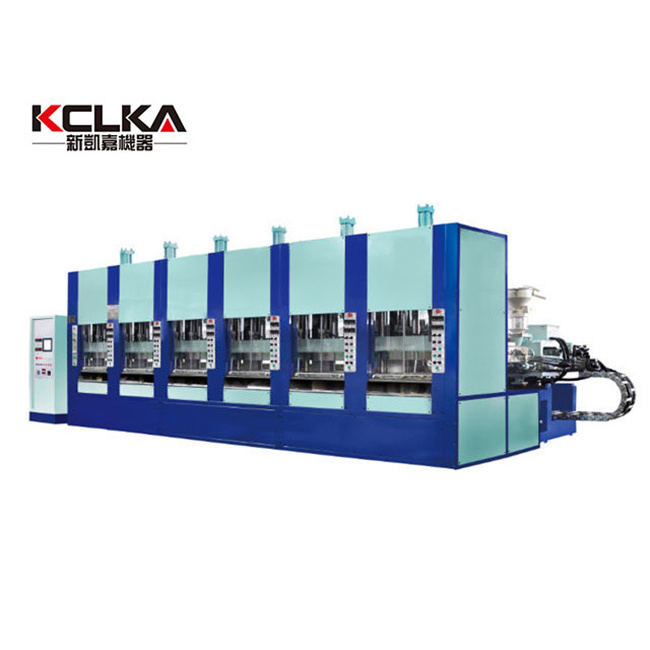

EK3-6E2: Full-Automatic Foam EVA shoe Injection Molding Machine
Technical Description
|
Mould Closing System |
Unit |
|
|
Work Stations |
|
6 |
|
Clamping Force |
kg |
180 |
|
Mould-Opening Stroke |
mm |
350 |
|
Standard Thickness of Mould |
mm |
100-2 1 0 |
|
Mould Plate Size |
mm |
2(290*550) |
|
Height of Injection Nozzle |
mm |
6 5 |
|
Method of Heating |
|
ele c tric |
|
Heating Power |
kw |
8.04 |
|
Injection System |
|
|
|
Injectors |
set |
2 |
|
L/D Ratio of Screw |
|
23 |
|
Diameter of Screw |
mm |
6 5 |
|
Max Injection Capacity |
cc |
9 20 |
|
Injection Pressure |
|
1100 |
|
Injection Speed |
cm/sec |
10 |
|
Rotating Speed of Screw |
r.p.m |
0-190 |
|
Temperature Control |
section |
4 |
|
Electricity Consumption |
|
|
|
kw |
1 9.6 |
|
|
Motor for Injector Moving |
kw |
1.5 |
|
Heating Board of Mould |
kw |
76.8 |
|
Hydraulic System |
kw / 50hz |
40.5 |
|
Vacuum Pump |
kw |
2.2 |
|
Cooling Fan of Barrel |
HP |
1 |
|
Total Electricity |
kw |
150 |
|
Oil Tank Size |
L |
1000 |
|
Machine Weight |
kg |
2 3800 |
|
M achine size |
m m |
65 00 *45 00 *28 00 |
