Shear Reinforcement For Engine And Exhaust Systems Kevlar Carbon Fiber Fabric

Shear Reinforcement For Engine And Exhaust Systems Kevlar Carbon Fiber Fabric

FOB Reference Price: Get Latest Price

≥1 Meters

US $1.12

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Use:: Industry, Shoes, Bedding, Accessories, Fashion Accessories-Luggage

Place of Origin:: China, Jiangsu

Product name:: 3k Carbon Fiber Fabric

Model Number:: T300

Color:: Black

Weave:: 3K Twill/3K Plain

Application:: Aerospace Industry

Type:: Structures Material

Shape:: Customized Shape

Size:: Customized Size

Weave Pattern:: Z Shape

Quick Details

Pattern:: SOLIDS

Material:: 100% Carbon Fiber

Feature:: Waterproof, Brushed Sueded, DIMENSIONAL, Organic, Sustainable, stain Resistant, Stain Repellent, Stretch, wicking, Wrinkle Resistant, Shrink-Resistant

Use:: Industry, Shoes, Bedding, Accessories, Fashion Accessories-Luggage

Place of Origin:: China, Jiangsu

Product name:: 3k Carbon Fiber Fabric

Model Number:: T300

Color:: Black

Weave:: 3K Twill/3K Plain

Application:: Aerospace Industry

Type:: Structures Material

Shape:: Customized Shape

Size:: Customized Size

Weave Pattern:: Z Shape

Product Overview

Unidirectional Carbon Fiber Cloth

Description
Carbon fiber cloth is a type of unidirectional carbon fiber reinforcement product. It uses high-performance carbon fiber cloth matched with resin impregnated adhesive to bond to the surface of concrete members, utilizing the excellent tensile strength of carbon fiber materials to enhance the load-bearing capacity and strength of the members. There are usually two qualities: 200g and 300g. Carbon fiber cloth has the advantages of high strength, durability, low density, thin thickness, wide application, and convenient construction. It is widely used in the reinforcement, repair, seismic reinforcement, and structural reinforcement of nodes for various types and shapes of structures, such as buildings, bridges, and tunnels .

Features

* Light weight, easy and convenient for construction, does not increase structural load

* High strength, flexible for use in bending resistance, closed stirrups, and shear reinforcement

* Good flexibility, not limited by the shape of the structure (beams, columns, ventilators, pipes, walls, etc.

* X-ray translucent, chemical resistant, heat resistant, and low-temperature resistant

* To be used in conjunction with specialized carbon fiber impregnating adhesive

PRODUCT SPECIFICATIONS

Item	Typical Data	Reference Standard
Virgin Yarn	≤12k	GB50728-2011
Tensile Strength	≥3400MPa	GB3354-2014
Tensile Elastic Modulus	230GPa	GB3354-2014
Elongation Rate	≥1.6%	GB3354-2014
Flexural Strength	≥700MPa	GB3354-2014
Interlaminar Shear Strength	≥45MPa	GB3354-2014
Tensile Bond Strength between Fiber Composite and Concrete under Upward Application	≥2.5MPa with cohesive failure in concrete	GB50728-2011

Dimensions

Product Grade	High Strength Ⅰ						High Strength Ⅱ
Fiber Direction	Unidirectional	Unidirectional	Unidirectional	Unidirectional	Unidirectional	Unidirectional
Product Model	VSUC30-3K	VSUC30-3KS	VSUC-3K	VSUC-3KA	VSUC-3KB	VSUC-3KC
Product Specification(g/㎡)	300	300	300	300	300	300
Product Thickness(mm/ Layer)	0.167	0.167	0.167	0.167	0.167	0.167
Product Width (mm)	100-500	100-500	100-500	100-500	100-500	100-500
Cloth Length (m)	100	100	100	100	100	100
Warp Yarn Density (Strand /cm)	36	36	37	40	36	47

Note：Special size and packing are available as request.

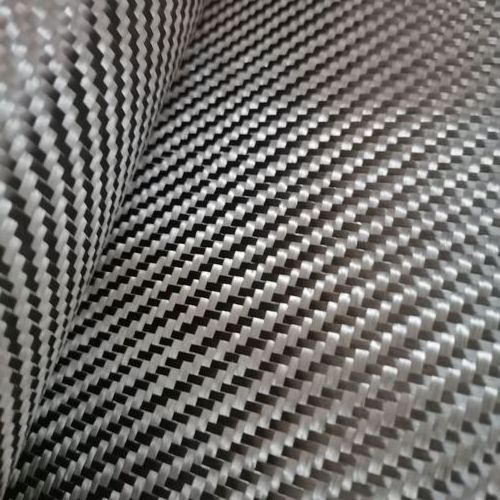

Product Pictures

Application fields

Company Show

Suzhou Volsun Electronics Technology Co.,Ltd. was founded in 2006. We keep focusing on the R&D, production and sales in insulation, sealing & protection solutions for over 18 years.
Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification such as IATF16949, ISO9001 etc.
Up to now, Volsun cooperated with customers from 88 countries, we offer suitable sealing, waterproof solutions for some well-know enterprises in communication,Automobile, Power industry etc.
