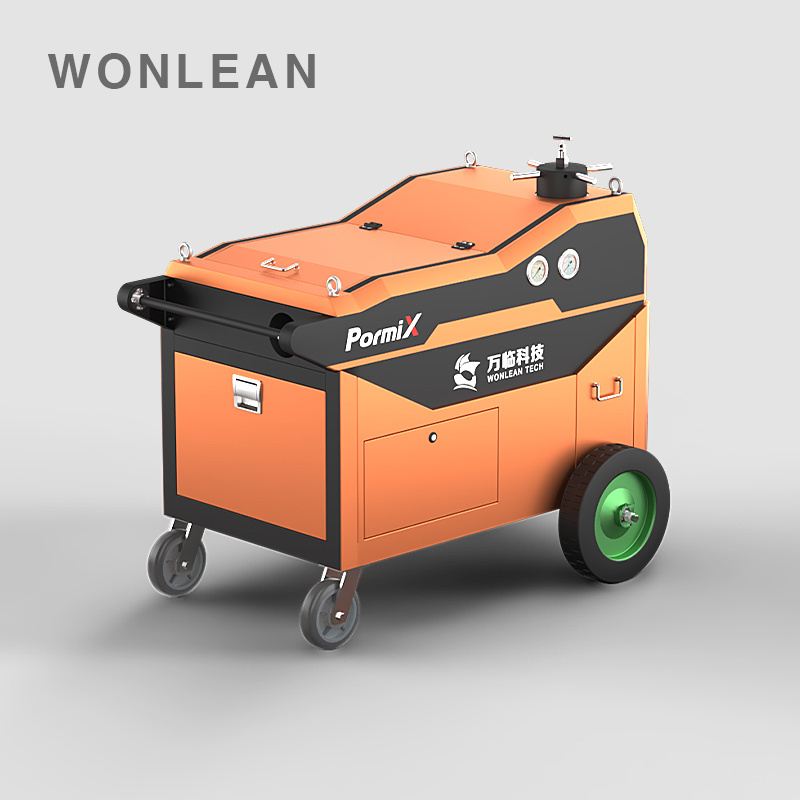

WONLEAN Pormix Waterjet Cutting Machine Portable Water Jet Cutting Machine

WONLEAN Pormix Waterjet Cutting Machine Portable Water Jet Cutting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $26000

≥2 Sets

US $25000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Rated Power:: 15KW

Dimension(L*W*H):: 1240MM*740MM*900MM

Weight (KG):: 380 KG

Name:: Portable Water Jet Cutting Machine

Type:: hydro blasting machine

Application:: tank removal, chemical plant demolition, on site pipe cutting

Max. pressure:: 50MPA

Max. water flow rate:: 30L/min

Motor power:: 15KW

Explosion-proof level:: Exd II BT4

Certification:: CE ISO

MOQ:: 1

Quick Details

Place of Origin:: Liaoning, China

Brand Name:: WONLEAN

Voltage:: 380V

Rated Power:: 15KW

Dimension(L*W*H):: 1240MM*740MM*900MM

Weight (KG):: 380 KG

Name:: Portable Water Jet Cutting Machine

Type:: hydro blasting machine

Application:: tank removal, chemical plant demolition, on site pipe cutting

Max. pressure:: 50MPA

Max. water flow rate:: 30L/min

Motor power:: 15KW

Explosion-proof level:: Exd II BT4

Certification:: CE ISO

MOQ:: 1

Product Description

15 Years Experience

PORTABLE WATERJET

CUTTING MACHINE

✔Support non-standard customization

✔ Provide free sample trial cutting service for you

The cold cutting characteristics of WONLEAN Pormix Waterjet Cutting Machine and the cutting method with high efficiency and environmentally friendly can fundamentally eliminate the risk of dangerous goods cutting and make the cutting operation of dangerous goods safe, simple and efficient. It is an epoch-making significance for the cutting field of dangerous goods. WONLEAN Pormix Waterjet Cutting Machine has been widely used in many fields, such as petroleum, chemical industry, coal mine, weapon destruction, emergency rescue and so on.

Electric integrated host

✔ Exd II BT4 explosion-proof level.

✔ Unique valve design eliminates sand blocking.

✔ Small size is easy to move, flexible and light.

✔ Oversized load-bearing wheels and universal wheels can adapt to various road surfaces.

✔ Powerful integration capabilities can adapt to various complex cutting conditions.

✔ Capacity of sand tank can be customized.

Electric split host

✔ Exd II BT4 explosion-proof level.

✔ Powerful cutting performance.

✔ Unique valve design prevents sand blocking.

✔ Split design is suitable for two places to operate.

✔ Light weight Capacity of sand tank can
be customized.

Gasoline engine

✔ Integrated design, flexible movement.

✔ Special valve body design does not block sand.

✔ Equipped with oversized load wheels and universal wheels.

✔ Gasoline powered without power.

✔ Remote control.

model	WL-QSM2007DY	WL-QSM3011DY	WL-QSM5015DY
Max. pressure	25 MPa	30 MPa	50 MPa
Operating pressure	20 MPa	25 MPa	45 MPa
Max. water flow rate	15L/min	20L/min	30L/min
Motor power	7.5KW	11KW	15KW
Power supply	380V/50Hz
External dimension	1240mm length ×740 mm width × 900mm height
Equipment weight	380KG

Magnetic Track Cutter

✔ Exd II BT4 explosion-proof level.

✔ Lightweight body design. ✔ Ingenious structure design can adapt to a ✔ large diameter range above 110mm. ✔ Equipped with large suction and strong magnetic wheels to adapt to various complicated working conditions. ✔ Equipped with an adjustable flexible track to eliminate the unevenness of the cutting surface and cause it to fall. ✔ Equipped with guide wheels to ensure cutting straightness. ✔ Waterproof .

Chain Track Cutter

✔ Exd II BT4 explosion-proof level.

✔ Lightweight body design.

✔ Detachable chain design. ✔ Gear transmission does not slip, high precision. ✔ Size: 290 × 305 × 285mm.

✔ Waterproof.

✔ Electric, pneumatic and hydraulic power.

Tapping Cutter

✔ Exd II BT4 explosion-proof level.

✔ Strong magnetic or vacuum adsorption, firm and stable. ✔ Equipped with adjustable height universal feet to adapt to various working conditions. ✔ Custom opening size.

Linear Cutter

✔ Exd II BT4 explosion-proof level.

✔ Linear Cutter.
✔ Strong magnetic or vacuum adsorption, firm and stable.
✔ Equipped with adjustable height universal feet to adapt to various working conditions.

✔ Custom cutting strokes.
✔ Waterproof design.
