Quick Details
-
Brand Name:
-
sybx
-
Connection:
-
male thread
-
Valve body material:
-
Nickel plated brass
-
Work pressure:
-
0.1-0.5Mpa
-
Flow rate (1 bar pressure drop):
-
0.7Cb.m./H (Same as 11.67L/Min)
-
Adjustable range:
-
35-45 C
-
hot inlet Temp.:
-
50-85 C
-
cold inlet Temp.:
-
4-29 C
-
Adjustment Accuracy:
-
+/- 2 C
-
G.W:
-
0.35
Quick Details
-
Port Size:
-
1/2", 1/2"
-
Place of Origin:
-
China
-
Model Number:
-
DN15M
-
Brand Name:
-
sybx
-
Connection:
-
male thread
-
Valve body material:
-
Nickel plated brass
-
Work pressure:
-
0.1-0.5Mpa
-
Flow rate (1 bar pressure drop):
-
0.7Cb.m./H (Same as 11.67L/Min)
-
Adjustable range:
-
35-45 C
-
hot inlet Temp.:
-
50-85 C
-
cold inlet Temp.:
-
4-29 C
-
Adjustment Accuracy:
-
+/- 2 C
-
G.W:
-
0.35
Shenyang Beixin Energy Saving Equipment Co.,Ltd

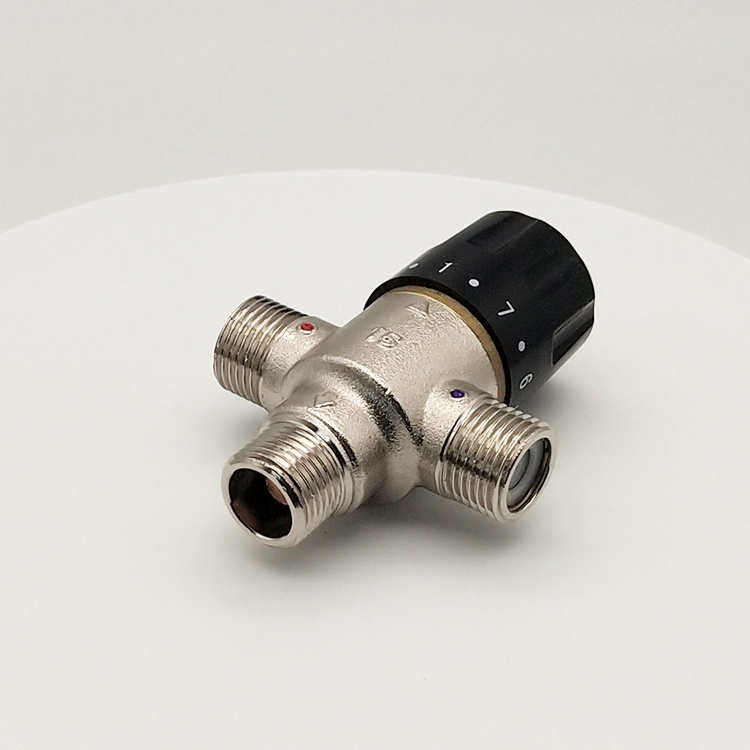

THERMOSTATIC MIXING VALVE
Model No. DN15M
Specs:
|
Body: |
Brass with nickel plated |
|
Shutter: |
PPO |
|
Springs: |
Stainless steel |
|
Seals: |
EPDM |
|
Temperature setting range: |
35-45 C |
|
Hot water inlet temperature range |
Below 100 C |
|
Cold water inlet temperature range |
5-29 C |
|
Temperature stability: |
+/-2 C |
|
Hydrostatic pressure |
10bar |
|
Max working pressure(dynamic): |
5bar |
|
Working pressure: |
0.03-1Mpa |
|
Ideal working pressure |
0.1-0.5Mpa |
|
Connections: |
1/2", Inlets: M, Outlet: M |
|
Flow rate (1 bar pressure drop) |
11.67 L/min |
1. Technical Data
Model : DN15M
a.Working pressure:0.03-1Mpa
b.Ideal working pressure:0.1-0.5Mpa
c.Maximum working temperature : below 99 C
d.Hot water inlet temperature range:50-99 C
e.Cold water inlet temperature range:5-29 C
f.Outlet Temperature range:35-45 C
g.Adjustment Accuracy:+/-2 C
h.Rated outlet flow on 1 bar pressure drop:11.7L/Min
|
Position |
Min |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
Max |
|
Temperature(℃) |
- |
30 |
33 |
35 |
37 |
39 |
42 |
45 |
-
|
Flow Rate and Pressure Drop :
valve , mixing valve ,thermostatic mixing valve
2. Materials of Construction
a.Valve body:Nickel plated brass
b.Shutter:PPO
c.Spring:Stainless steel
d.O-ring:EPDM
e.Connection:Inlets-M,outlet-M
3. Features:
a. Fail-safe on Hot or Cold Supply Failure
b. Delivers Stable Mixed Water Temperature
c. Extended Mix Temperature Range : 35-45C
d. Idea for Domestic and Public Water Application
e. Tamper-Proof Cap
valve , mixing valve ,thermostatic mixing valve
4. What is the thermostatic mixing valve?
A Thermostatic Mixing Valve is a valve that blends hot water (stored at temperatures high enough to kill bacteria) with cold water to ensure constant, safe outlet temperatures preventing scalding.
They shut-off rapidly in the event of a hot or cold supply failure to prevent scalding or thermal shock.
TMVs accurately control water temperatures for bathing, showering and hand-washing. They maintain pre-set temperatures - even if water pressure varies when other appliances are used. TMVs can be fitted under baths and basins, be part of shower fittings, or as a feature of exposed hot and cold water mixers.
5. Usage of TMVs
Point of use mixing for wash hand basins, bidets, baths and showers in hospitals, schools, sport and leisure facilities, prisons and other public buildings.
valve , mixing valve ,thermostatic mixing valve
6. Installation Precaution:
a.All installations should be carried out by a Licensed Professional.
b.Install in accordance with markings on valve body. i.e. hot water inlet-marked H, cold water inlet-marked C.
c.After temperature setting, if inlets temperature or pressure fluctuates, outlet temperature variation is within +/-2 C.
d. The external check valves at inlets prevent cross-flow of hot&cold water when inlets pressure is not the same.
e. If the ratio between two inlets is too large, one flow-limiting valve should be fixed at the side of higher pressure.
f.Prior to installation, provisions should be made to flush the piping of any debris or other foreign materials to ensure proper system operation.
Product Introduction
When the hot water failed, the cold inlet port will close automatically.
When the cold failed, the hot will close too.
When the hot water temp reduces below the set temp, the cold flow will stop and hot water continues.
