Quick Details
-
Output Speed:
-
300rpm
-
Applicable Industries:
-
machinery industry
-
Weight (KG):
-
2 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sumtor
-
Name:
-
nema 23 planetary reducer gearbox
-
Model:
-
57XG10-LH
-
rate:
-
10:1
-
Weight:
-
0.7kg
-
Length:
-
52.5mm
-
Rated input speed:
-
3000rpm
-
Max input speed:
-
8000rpm
-
Rated Ioad:
-
6N.m
-
Efficiency:
-
≥94%
-
normal using time:
-
20000h
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
25n.m
-
Input Speed:
-
3000rpm
-
Output Speed:
-
300rpm
-
Applicable Industries:
-
machinery industry
-
Weight (KG):
-
2 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sumtor
-
Name:
-
nema 23 planetary reducer gearbox
-
Model:
-
57XG10-LH
-
rate:
-
10:1
-
Weight:
-
0.7kg
-
Length:
-
52.5mm
-
Rated input speed:
-
3000rpm
-
Max input speed:
-
8000rpm
-
Rated Ioad:
-
6N.m
-
Efficiency:
-
≥94%
-
normal using time:
-
20000h

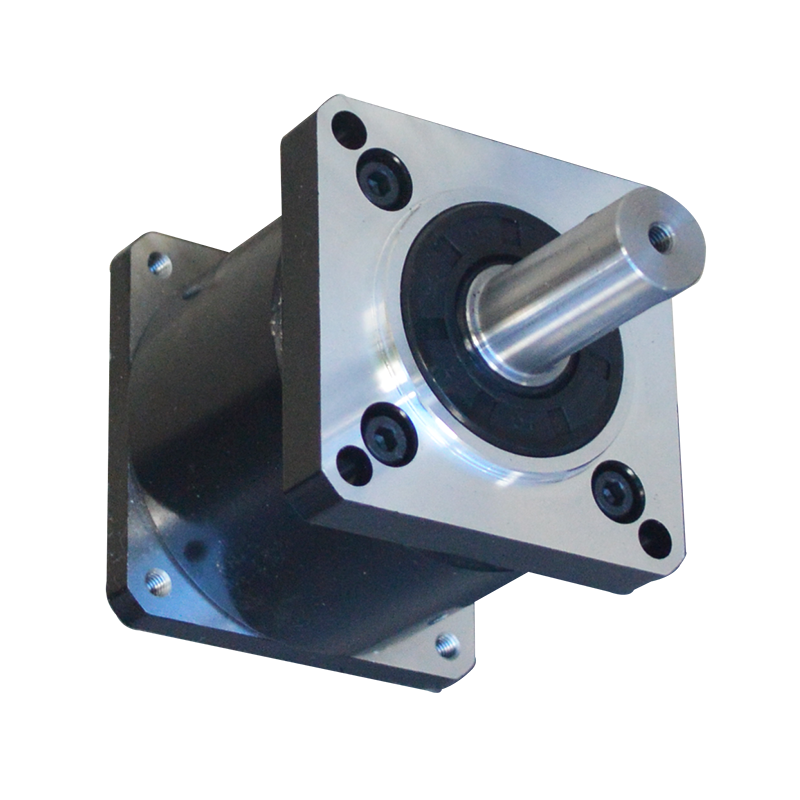

10:1 high Precision nema 23 speed reducer planetary gear set reduction gearbox for motor
Product Description
nema 23 planetary gearbox drawing
nema 23 planetary gearbox parameters (for nema 23 stepper motor)
|
ratio level
|
level one
|
|
level two
|
|
||
|
ratio
|
4,5,10
|
|
16,20,25,40,50,100
|
|
||
|
transmission effencicy
|
≥94%
|
|
≥92%
|
|
||
|
return gap
|
6-8
|
|
10-15
|
|
||
|
weight
|
0.7kg
|
|
0.95kg
|
|
||
|
body length
|
52.5mm
|
|
69mm
|
|
||
|
inertia
|
0.065-0.135kgcm
2
|
|
0.035-0.045kgcm
2
|
|
||
|
max torque
|
12N.m
|
|
50N.m
|
|
||
|
rated torque
|
6N.m
|
|
25N.m
|
|
||
