Quick Details
-
Voltage:
-
380V
-
No Load Speed:
-
>=0.25M/S
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qiangxin
-
Model Number:
-
QX2000AB C
-
Warranty:
-
One year
-
Product name:
-
wet paint spray booth
-
Application:
-
for car painting and baking
-
Heating System:
-
luxurry high efficient heating lamps
-
intake and exhaust system:
-
CE approve centrifugual air fans
-
Lighting System:
-
energy saving cost-effective LED lights
-
Certification:
-
ce
-
Wall Panel:
-
blue, white, red
-
Filtration:
-
4 filters
-
Size:
-
customized accepted
-
Basement:
-
slope type or flat type
Quick Details
-
Power:
-
44KW
-
External Size:
-
7000*5000*3300mm
-
Internal Size:
-
6900*3900*2650mm
-
Voltage:
-
380V
-
No Load Speed:
-
>=0.25M/S
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qiangxin
-
Model Number:
-
QX2000AB C
-
Warranty:
-
One year
-
Product name:
-
wet paint spray booth
-
Application:
-
for car painting and baking
-
Heating System:
-
luxurry high efficient heating lamps
-
intake and exhaust system:
-
CE approve centrifugual air fans
-
Lighting System:
-
energy saving cost-effective LED lights
-
Certification:
-
ce
-
Wall Panel:
-
blue, white, red
-
Filtration:
-
4 filters
-
Size:
-
customized accepted
-
Basement:
-
slope type or flat type
Customer Feedback
Product Description

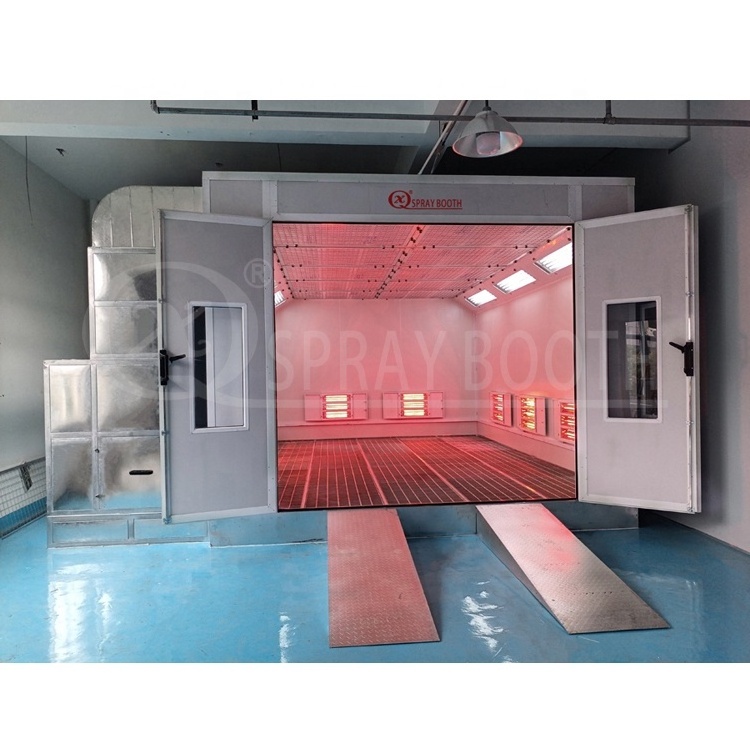

QX2000AB C+ Spray Booth (Luxury and Environmental)
|
Inside Dimension
|
6900 x 3900 x 2650(mm)(LxWxH)
|
|
Outside Dimension
|
7000 x 5500 x 3300(mm)(LxWxH)
|
|
Doors
|
Front entrance door for cars:
1 set 3 folds door powder coated aluminum door frame(thickness:1.8mm)
door size:2830x2600(mm)(WxH) ,With strengthen door hinge,door
lock bar and durable door handle, tempered glass observation window.
Side small door for man:
1 set side hung door size:700 x 1700mm(WxH)
|
|
Wallboard
|
High density of 16kg / m³ sandwich panel, 50mm EPS(epispastics polystyrene) insulation material with S=0.476mm two side steel panel
|
|
Lighting System
|
• Temper glass lamp boxes are 45° fixed on upper two side, with 8 group*4pcs=32pcs 18w energy saving LED lamp
• Compared with traditional lighting, it can save up to 65% of energy and lifetime mmore than 30,000 hours
|
|
Air intake and exhaust System
|
• With 2pcs centrifugal air blowers,total parameter:2 sets*4kw 12500m³/h, (axial type, durable cooper motor, easy installation)
• With 1pc centrifugal air blowers, total parameter:5.5KW. 20000㎡/h, (centrifugal type, durable cooper motor, easy installation)
|
|
Heating System
|
• Equipped with 10 groups infrared lamps, 3pcs in 1 group. 1pc/1000w. Total is 30KW. Can set partial group on or off.
• The operating temperature:50℃-60℃. Max temperature:75℃
|
|
Filtration System
|
High efficient 4 filters to provide dust-free space for painting and meet with environmental protection:
Air inlet with prefilter: dust holding capacity 400g/㎡; class G4; Filtration precision ≥5μm; Flammability (GB/T1759-2006) F1.
Ceiling equipped with CC-G650 type high-efficiency filter: dust holding capacity 600g/㎡; class F5; Filtration precision ≥1μm;Flammability (GB/T1759-2006) F1.
With floor filter.
Outlet with filter cotton: dust holding capacity 550g/㎡; Class according(DIN en779) G2、G3、 G4; Filtration precision ≥5μm.
|
|
Control System
|
Switch for painting, baking, light switch, breakdown indicator, power switch, emergency stop switch
|
|
Basement
(foundation)
|
High performance full antirust treatment grille galvanized (5 rows grilles).
Square tube column.2pcs antirust treatment ramps:2000*630mm(L*W).
Slope type inner basement / flat basement can be optional.
|
|
Voltage Frequency
|
380V 50HZ three phase
|
|
Total Power
|
44KW
|
|
Customized
|
1, Dimension can be customized.
2, Wallboard color: all in white or all in red or all in blue, or entrance door in red/blue.
3, Rock wool wallboard is other optional.
4, Light can be normal LED or anti explosion light.
5, Floor filter can be added.
6, Put your logo on the booths.
7, Different language on the control box.
8, CE standard manufacture standard, AU/NZ standard manufacture standard.
9, Can add device for waterborne painting fast dry
10, Heating system can changed into diesel burner.
Product price will be different if you have customized requirements.
Send your inquiry message to us now, let's talk in details.
|
Project Photo:
Recommend Products
Installation Support
We have sent engineers to different countries to guide the installation of spray booths ovens. Of course, basically the customer took the detailed drawings of the installation provided by us, and can completed the assembly very successfully, and at the same time enjoyed the free online technical guidance for life.
