Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Customized
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Hongfa
-
Voltage:
-
380V customized
-
Dimension(L*W*H):
-
7100*1600*2610mm
-
Marketing Type:
-
Other
-
Weight (KG):
-
5300 kg
-
Name:
-
Concrete Block Making Machine
-
Molding Cycle:
-
15-25s
-
Pallet Size:
-
1020X570mm
-
Demension:
-
7100x1600x2160mm
-
Raw material:
-
sand, cement, crushed stone, coal fly ash, construction wates, etc
-
Brick type:
-
hollow block, brick, paving brick, curb stone, etc
-
Power:
-
27.5kw
-
HS Code:
-
8474802000
-
Trademark:
-
Hongfa
-
Color:
-
Customized
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other, Automatic Brick Making Machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
Holow Block 400*200*200mm: 5800-7600pcs / 8 hours, Brick 240*115*53mm : 47500-53700pcs / 8 hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Customized
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Hongfa
-
Voltage:
-
380V customized
-
Dimension(L*W*H):
-
7100*1600*2610mm
-
Marketing Type:
-
Other
-
Weight (KG):
-
5300 kg
-
Name:
-
Concrete Block Making Machine
-
Molding Cycle:
-
15-25s
-
Pallet Size:
-
1020X570mm
-
Demension:
-
7100x1600x2160mm
-
Raw material:
-
sand, cement, crushed stone, coal fly ash, construction wates, etc
-
Brick type:
-
hollow block, brick, paving brick, curb stone, etc
-
Power:
-
27.5kw
-
HS Code:
-
8474802000
-
Trademark:
-
Hongfa
-
Color:
-
Customized

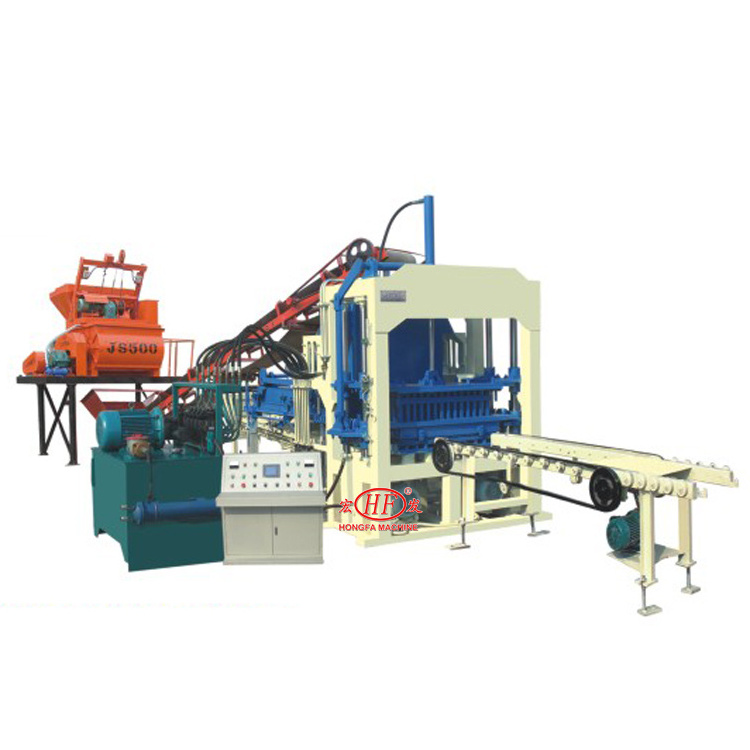

HFB575A-4-15C Full Automatic Cement Paving Brick Curb Stone Concrete Hollow Block Making Machine
Brief introduction:
QT4-15C is a kind od automatic product developed by our company newly, adopts flat vibration manufactures the blocks with average density and high srength and the unique dose charging device and strong material-distributing structure ensure the bolck's quality if various materials. It adopts PLC control, and realized the pallets-supplying material-distributing, and brick-distributing, with high automatic efficiency, it is the ideal equipment to manufacture the new style wall materials.
Productivity(can change moulds):
| Item | Size(mm) | Molding cycle | Pcs/Mold | Pcs/hour | Pcs/8hours |
| Hollow block | 400*200*200 | 15-20s | 4 | 720-960 | 5800-7700 |
|
Solid brick
|
240*115*53 | 15-17s | 28 | 5930-6700 | 47500-53600 |
| Paving brick | 220*110*50 | 20-25s | 16 | 2310-2880 | 18500-23000 |
Note: The forming cycle above capacity we counted by average 20 seconds per pallet.
Technical Parameter:
| Overall Dimension | 7100*1600*2610(mm) |
| Rated pressure | 16MPa |
| Main vibration form | Platform vibration |
| Cycle Time | 15-25seconds |
| Vibrating Frequency | 4600 rolls/minute |
| Overall weight | 5300kg |
| Motors Power | 27.5KW |
| Pallet Size | 1020*570(mm) |
The raw materials:
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes.
Applied Products:
Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Hongfa Group Established in 1990.
A leader developer& Manufacturer of Construction Material Machinery.
Main business Range & Products:
Lightweight Panel Production Line, AAC Block Production Line, Full Automatic Concrete Block Production Line, Artificial Quartz Plate Production Line, Concrete Pipe Machine, Concrete Tile Machine, Concrete pipe machine, Bidirectional Hydraulic Brick Maker, Mining Machinery, Concrete Batching plant, Stereo Parking Equipment, etc.
A leader developer& Manufacturer of Construction Material Machinery.
Main business Range & Products:
Lightweight Panel Production Line, AAC Block Production Line, Full Automatic Concrete Block Production Line, Artificial Quartz Plate Production Line, Concrete Pipe Machine, Concrete Tile Machine, Concrete pipe machine, Bidirectional Hydraulic Brick Maker, Mining Machinery, Concrete Batching plant, Stereo Parking Equipment, etc.
Main Products :
concrete block machine, EPS Light weight wall panel machine , AAC block production line , concrete batching plant, Artificial quartz stone plate production line , Culcium Silicate Board Production Line , wall panel making machine, concrete terrazzo tile machine and concrete pipe machine, EPS insulation concrete block production line . etc.
Automatic Block Making:
QT12-15D QT12-15 QT10-15D QT10-15 QT9-15 QT8-15D
QT8-15B QT6-15D QT6-15C QT6-15B QT4-15D QT4-15C
QT4-15B QT4-20C QTJ4-25
Semi-automatic:
QTJ4-35B2 QTJ4-40B2
Semi-automatic egg-laying machine:
QTY4-30 QMJ4-45 QTJ2-45 JMQ-6A
Color Paver Color tile forming machine:
QT3-20 SMY8-150
HF-800 pipe-making machine HF-2000 pipe-making machine
Concrete Mixing Plant:
HZS25 HZS35 HZS50 HZS60 HZS series
AAC Block production line : 50000~500000m³/Year
Brief intruduction of automatic concrete block making machine:
a) full automatic brick plant is a compact oil hydraulic machine according to the standard of international. Many parts from abroad which ensure the quality of the machine and take fro the power.
b) The vibration system contains platform vibration and mould vibration so the products are very close grained and produced quickly.
c) The novel feeding system gives material exactly and average and assures the products having a high density.
Control system
a) PLC intelligent control. human-computer interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple trainning to the operator.
b) Product scope: It produces various bricks/blocks including color-face bricks (layered material feeding), through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks, hollow blocks, perforated bricks and standard bricks etc.
a) full automatic brick plant is a compact oil hydraulic machine according to the standard of international. Many parts from abroad which ensure the quality of the machine and take fro the power.
b) The vibration system contains platform vibration and mould vibration so the products are very close grained and produced quickly.
c) The novel feeding system gives material exactly and average and assures the products having a high density.
Control system
a) PLC intelligent control. human-computer interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple trainning to the operator.
b) Product scope: It produces various bricks/blocks including color-face bricks (layered material feeding), through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks, hollow blocks, perforated bricks and standard bricks etc.
Hongfa Strengths
More than 30 years experience. 1500 employee (50+engineers)
2) Total 4 factories with 440,000M2 and annual sell above USD100 Million .
3) 10,000 customers and fulfillment to over 120 countries.
4) Continuous service and logistics system.
5) High quality products and competitive price.We hope we can cooperate with each other and establish a win-win business relationship.
We will provide the following service for you:
1.Analyzing:Plant size, budget, automatic degree, local condition....analyzing all of your requirements
2. We offer technical support until the workers know how to operate.
3. The operating instruction will go to the customers with the equipment. Technology data and relative files for production line
4.We provide lifelong guidance . Visiting clients in regular times.
More than 30 years experience. 1500 employee (50+engineers)
2) Total 4 factories with 440,000M2 and annual sell above USD100 Million .
3) 10,000 customers and fulfillment to over 120 countries.
4) Continuous service and logistics system.
5) High quality products and competitive price.We hope we can cooperate with each other and establish a win-win business relationship.
We will provide the following service for you:
1.Analyzing:Plant size, budget, automatic degree, local condition....analyzing all of your requirements
2. We offer technical support until the workers know how to operate.
3. The operating instruction will go to the customers with the equipment. Technology data and relative files for production line
4.We provide lifelong guidance . Visiting clients in regular times.
Exhibitions & cooperations
Hongfa, as a top brand enterprise in China, our products are also exported to Russia, Brazil, Thailand, Indonesia, Vietnam,Angola, Bangladesh, India, Australia, Sudan, etc., 132 countries and regions, deeply welcomed by clients from all around the world.
