Quick Details
-
Drilling Speed:
-
10/10/10 m/min
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
TAIJIN
-
Model Number:
-
TJ-T600
-
Voltage:
-
200V/380V
-
Dimension(L*W*H):
-
1800*2470*2370
-
Power (kW):
-
3.7/5.5
-
Weight (KG):
-
3300 KG
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
System
-

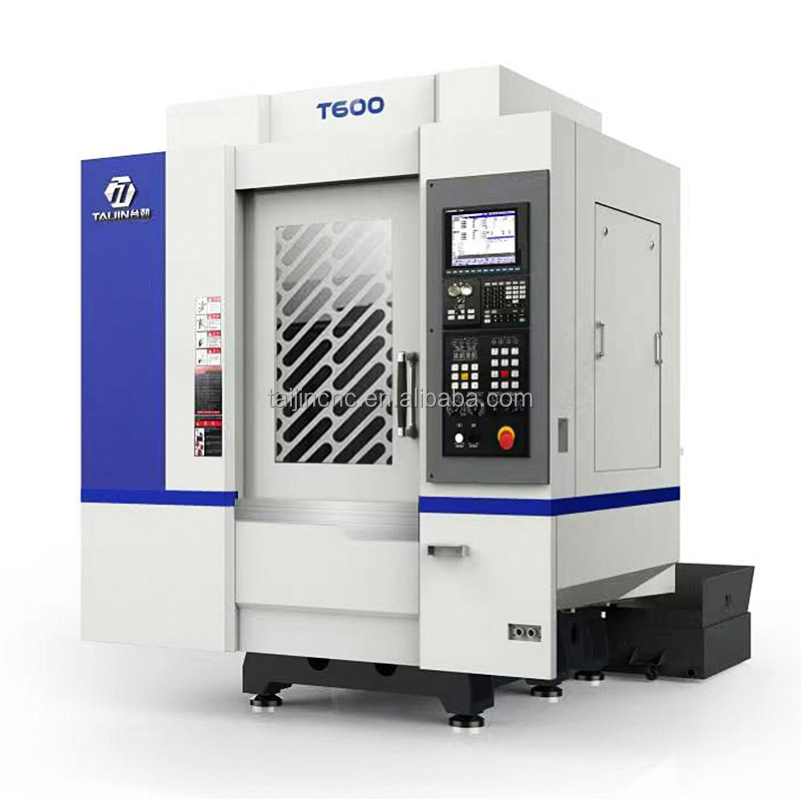

Product name:
-
Vertical Drilling Tapping Machine
-
After-sales Service Provided:
-
Overseas Service Provided
-
Machine type:
-
Drilling and Tapping Equipment
-
Certification:
-
ISO, CE
-
Advantage 1:
-
High Accuracy Machining
-
Advantage 2:
-
Competitive Prices
-
Advantage 3:
-
High Speed Machining
-
Keyword:
-
CNC Vertical Drilling Milling Tapping Machine
-
Model:
-
TJ-T600
-
Brand:
-
TAIJIN from Taiwan
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
60
-
Range of Spindle Speed(r.p.m):
-
1 - 20000 r.p.m
-
Drilling Speed:
-
10/10/10 m/min
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
TAIJIN
-
Model Number:
-
TJ-T600
-
Voltage:
-
200V/380V
-
Dimension(L*W*H):
-
1800*2470*2370
-
Power (kW):
-
3.7/5.5
-
Weight (KG):
-
3300 KG
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
System
-
Product name:
-
Vertical Drilling Tapping Machine
-
After-sales Service Provided:
-
Overseas Service Provided
-
Machine type:
-
Drilling and Tapping Equipment
-
Certification:
-
ISO, CE
-
Advantage 1:
-
High Accuracy Machining
-
Advantage 2:
-
Competitive Prices
-
Advantage 3:
-
High Speed Machining
-
Keyword:
-
CNC Vertical Drilling Milling Tapping Machine
-
Model:
-
TJ-T600
-
Brand:
-
TAIJIN from Taiwan
Product Description
Specification
|
Three Axis Travel (X/Y/Z)
|
mm
|
600/400/300
|
|
Distance from Spindle Nose to Worktable Surface
|
mm
|
150-450
|
|
Workbench Size(Length*Width)
|
mm
|
700*400
|
|
Maximum Load of Workbench
|
|
|
|
T-slot (Number of Slots - Slots Width * Spacing)
|
/
|
3-14*120
|
|
Spindle Speed
|
rpm
|
20000
|
|
Spindle Taper Hole
|
/
|
BT30
|
|
Spindle Motor Power (Mitsubishi)
|
Kw
|
3.7/5.5
|
|
Rapid Movement Speed (X/Y/Z)
|
m/min
|
48/48/48
|
|
Cutting Feed Rate (X/Y/Z)
|
m/min
|
10/10/10
|
|
Number of Tools
|
Grasp
|
21
|
|
Maximum Tool Diameter/Length/Weight
|
/
|
Φ60mm/200mm/3kg
|
|
Maximum Tool Diameter (Full/Empty Adjacent Tool)
|
mm
|
60/80
|
|
Positioning Accuracy (X/Y/Z)
|
mm
|
±0.003/300
|
|
Repetitive Positioning Accuracy
|
mm
|
±0.003
|
|
Air Source/Pressure
|
/
|
280L/min 6-8bar
|
|
Total Electrical Capacity of the Machine Tool
|
KVA
|
15
|
|
Water Tank Capacity
|
L
|
160
|
|
Machine Tool External Dimensions (Length*Width*Heigh)
|
mm
|
1800*2470*2370
|
|
Machine Weight
|
kg
|
3300
|
