- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V~50Hz
-
Max. air volume:
-
450m³/h
-
Rated air volume:
-
350m³/h
-
Rated power:
-
135W
-
Max. power:
-
220W
-
Net fresh air volume:
-
340m³/h
-
Net fresh air rate of air supply:
-
97%
-
Heating Enthalpy efficiency:
-
77%
-
Rated noise:
-
36dB(A)
-
Cooling enthalpy efficiency:
-
69%
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Menred
-
Model Number:
-
P5
-
Voltage:
-
220V~50Hz
-
Max. air volume:
-
450m³/h
-
Rated air volume:
-
350m³/h
-
Rated power:
-
135W
-
Max. power:
-
220W
-
Net fresh air volume:
-
340m³/h
-
Net fresh air rate of air supply:
-
97%
-
Heating Enthalpy efficiency:
-
77%
-
Rated noise:
-
36dB(A)
-
Cooling enthalpy efficiency:
-
69%

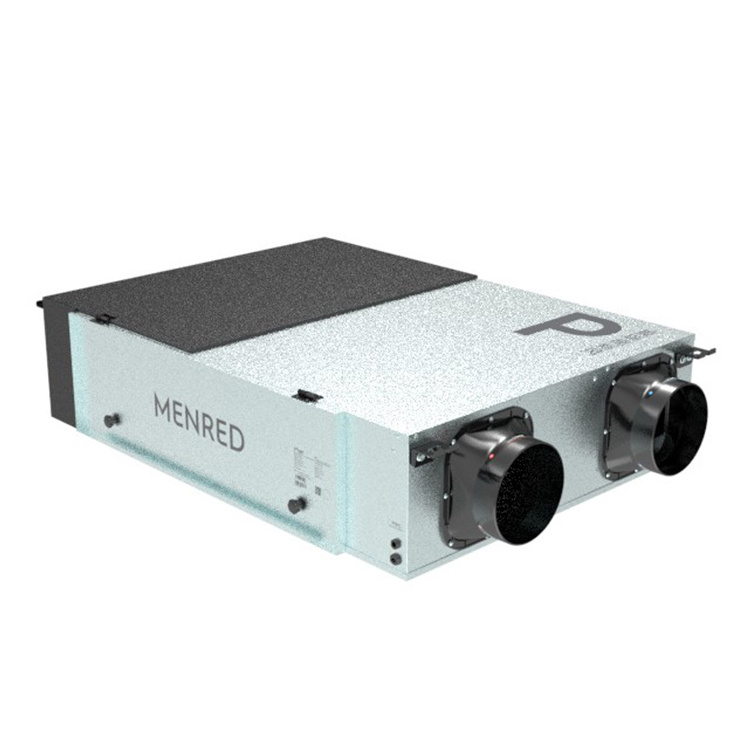

Recuperator ventilation is a mechanical system that controls air circulation and provides fresh air in rooms. It has several functions, including:Expelling foul air Warm air from outside is passed through filters to remove dirt, dust, and pollen;
Providing fresh air Warm air is supplied with specific parameters, such as temperature, moisture, and efficiency. Recovering heat and humidify:Recuperators recover heat and humidification from polluted air. Recuperators can be used for Energy recovery in home, schools, pharmaceutical industries, and hospitals.
The Energy Recovery Ventilation System will exhaust stale air out of the home and bring fresh air from the outside back in the home. These two air streams are directed through a highly developed air-to-air energy exchange core. The air streams are physically separated by many layers of plates so there is no mixing or contamination of the fresh air.
The unique moisture transfer capability of the ERV core also eliminates condensation and frost build up in most applications.
|
Voltage：
|
220V～50Hz
|
|
|
|
|||
|
Max. air volume：
|
450m
3
/h
|
|
|
|
|||
|
Rated air volume:
|
350m
3
/h
|
|
|
|
|||
|
Rated power:
|
135W
|
|
|
|
|||
|
Max. power:
|
220W
|
|
|
|
|||
|
Net fresh air volume:
|
340m
3
/h
|
|
|
|
|||
|
Net fresh air rate of air supply:
|
97%
|
|
|
|
|||
|
Outside residual pressure during supply air:
|
80Pa
|
|
|
|
|||
|
Outside residual pressure during exhaust air:
|
50Pa
|
|
|
|
|||
|
Cooling enthalpy efficiency:
|
69%
|
|
|
|
|||
|
Heating Enthalpy efficiency:
|
77%
|
|
|
|
|||
|
Rated noise:
|
36dB(A)
|
|
|
|
|||
|
Filtration efficiency:
|
97%
|
|
|
|
|||
|
Power consumption per unit of fresh air volume:
|
0.38(w(m
3
/h))
|
|
|
|
|||
