Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Taoxing
-
Dimensions(L*W*H):
-
1600*1350*1280mm
-
Weight:
-
480 KG
-
Max printing size:
-
700*1000mm
-
Max frame size:
-
1000*1300mm
-
Min frame size:
-
550*650mm
-
table size:
-
800*1100mm
-
Frame lift height:
-
300mm
-
Height from Table to ground:
-
820mm
-
Printing Thickness:
-
0-50mm
-
Max Printing Speed:
-
1200p/h
-
Air Pressure (Mpa):
-
0.3-0.5
-
Marketing Type:
-
Hot Product 2021
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
2.2KW/220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Taoxing
-
Dimensions(L*W*H):
-
1600*1350*1280mm
-
Weight:
-
480 KG
-
Max printing size:
-
700*1000mm
-
Max frame size:
-
1000*1300mm
-
Min frame size:
-
550*650mm
-
table size:
-
800*1100mm
-
Frame lift height:
-
300mm
-
Height from Table to ground:
-
820mm
-
Printing Thickness:
-
0-50mm
-
Max Printing Speed:
-
1200p/h
-
Air Pressure (Mpa):
-
0.3-0.5
-
Marketing Type:
-
Hot Product 2021
Product Overview
Application for oblique arm screen printing machine
t
his series of flat screen printer is widely used in the packaging industry (such as the packages of cigarettes, wine, gift,cosmetic, etc.),the printing of brand, calendary, oil painting, keyboard, New Year pictures, transfer papers, pressure-sensitive adhesive, Non-woven bag and credit card.
PRODUCT SPECIFICATIONS
|

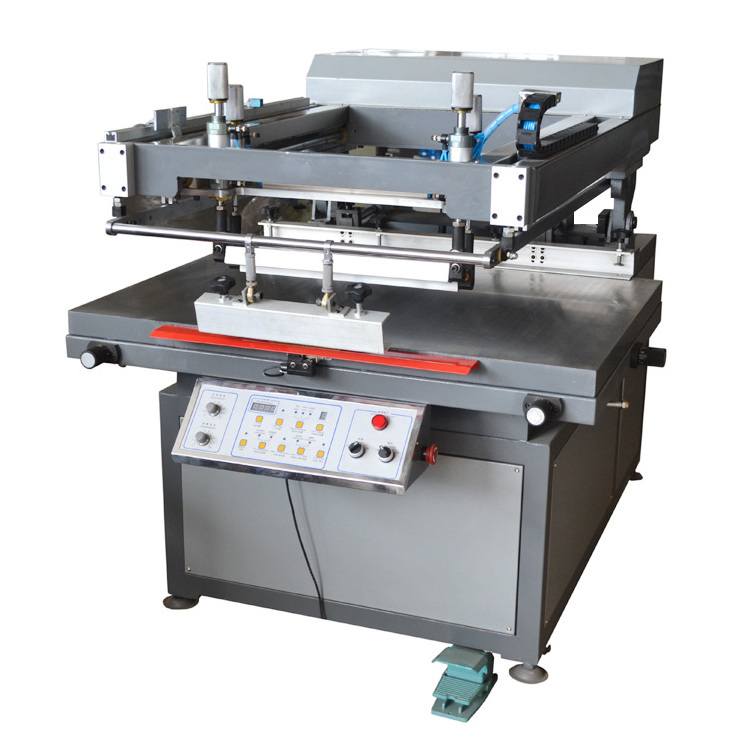

SPECIFICATIONS FOR TX-XB7010 Oblique Arm Screen Printing Machine
|
|
|
|
|||
|
Max Printing Size
|
700*1000mm
|
|
|
|||
|
Table size
|
800*1100mm
|
|
|
|||
|
Max Frame Size
|
1000*1400mm
|
|
|
|||
|
Max Printing Speed
|
1000p/h
|
|
|
|||
|
Power
|
2.2KW/220V
|
|
|
|||
|
Air Pressure (Mpa)
|
0.3-0.5
|
|
|
|||
|
Outside Dimension
|
1600×1350×1280mm
|
|
|
|||
|
Electric Source:
|
220V 50Hz
|
|
|
|||
Features and Performance:
1.Oblique arm structure, the rise and fall decelerator is made in Taiwan, and the printing arm drives up and down independent.
2. The whole machine adopts Mitsubishi PLC, controlled by non-contact sensing photoelectric eyes.
3.The key electrical control components all adopt imported products, which guarantees stable and reliable performance
4.stainless steel bonded worktable, widely distributed by ∮1.0～1.5 Precision adsorption holes.
5. absorbed by powerful vacuum pump automatically .
6.the level and vertical orientation of printing platform can be set with the direction of fine tuning, guarantees the precision
of multi-color overprinting.
7. printing frame is driven by variable frequency drive system, the speed of printing/ink reclaiming can be set by digital setting
and controlling, which is convenient to adjust the printing stroke .
1.Oblique arm structure, the rise and fall decelerator is made in Taiwan, and the printing arm drives up and down independent.
2. The whole machine adopts Mitsubishi PLC, controlled by non-contact sensing photoelectric eyes.
3.The key electrical control components all adopt imported products, which guarantees stable and reliable performance
4.stainless steel bonded worktable, widely distributed by ∮1.0～1.5 Precision adsorption holes.
5. absorbed by powerful vacuum pump automatically .
6.the level and vertical orientation of printing platform can be set with the direction of fine tuning, guarantees the precision
of multi-color overprinting.
7. printing frame is driven by variable frequency drive system, the speed of printing/ink reclaiming can be set by digital setting
and controlling, which is convenient to adjust the printing stroke .
Machine Details
Printing Sample
Outer packaging
.
Card
Packing&Delivery
★ Packing & Delivery
1. Packing: Plywood Case for Each Machine 2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：3-35 business days after received the payment. 4. Delivery means: By sea from Shanghai or Ningbo Port
1. Packing: Plywood Case for Each Machine 2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：3-35 business days after received the payment. 4. Delivery means: By sea from Shanghai or Ningbo Port
FAQ
Q: Are you a factory or trading company?
Q: Can you do the production as customized?
A:
We are a professional manufacturing factory specialize in printing equipment with more
than 18 years experience, committed to supplying our customer top quality and dedication to the constant improvements of quality,reliability, productivity and the competitiveness of our products and services.
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color,thickness, quantity, etc.
Q: Can you do the production as customized?
A:
Yes, we have a professional technique team, we could produce the machine depends on your requirements.
Q: What are your terms of payment?
A:
We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A:
All products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
Our Company
Hangzhou Taoxing Printing Machiner Co.,
ltd is a High-tech lead company, integrated with science, industry and trade. We have strong technical support, advanced production equipment and professional staff who dedicate to products research,development,manufacture, installation, test and maintenance.
Foreign Cooperative Partners
Photo of Factory
Cetefications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*custom contact us
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*custom contact us
After-Sales Service
*1 year warranty
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*1 year warranty
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
