Quick Details
-
Model Number:
-
JP-ET022
-

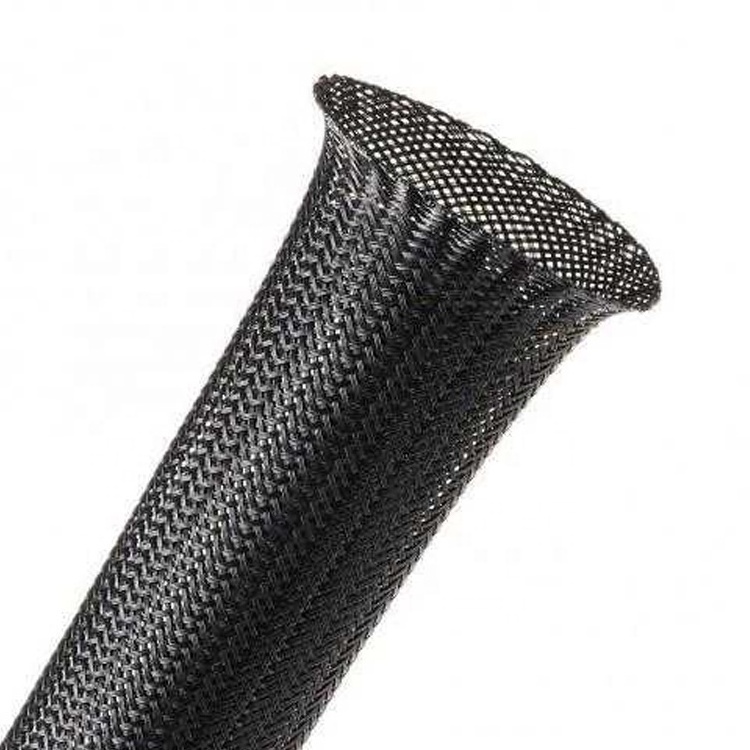

Product Name:
-
pet expandable braided sleeving
-
Keyword:
-
expandable braided cable sleeve
-
Flammability:
-
UL94-V2
-
Peak temperature:
-
+175℃
-
Melting point:
-
250 ℃
-
Meterial:
-
Polyester 0.22mm monofilament expandable braided sleeve
-
Sample:
-
for free
-
Colors:
-
Black, grey, other color available on request.
-
Length:
-
customizable
-
Logo:
-
customizable
Quick Details
-
Material:
-
PET
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
JAS
-
Model Number:
-
JP-ET022
-
Product Name:
-
pet expandable braided sleeving
-
Keyword:
-
expandable braided cable sleeve
-
Flammability:
-
UL94-V2
-
Peak temperature:
-
+175℃
-
Melting point:
-
250 ℃
-
Meterial:
-
Polyester 0.22mm monofilament expandable braided sleeve
-
Sample:
-
for free
-
Colors:
-
Black, grey, other color available on request.
-
Length:
-
customizable
-
Logo:
-
customizable
Technical Data
|
Property |
Test Method |
Values |
|
|
Physical |
Peak temperature |
|
+175 ℃ |
|
Melting point |
|
+250 ℃ |
|
|
Flammability
|
FMVSS 302 |
Self extinguishing |
|
|
D451333 |
Type B |
||
|
UL94 on compound |
V-2 |
||
|
NF F 16-101&102 |
I2-F1 |
||
|
EN 45545-2 |
R22&R23 |
||
|
|
Halogen free |
||
|
Abrasion resistance |
S215101&D441959 PSA/RSA |
CAT B |
|
|
Chemical |
Fluid resistance |
D471924 |
Unaffected by most chemicals |
Dimensions
|
As Supplied (mm) |
Range of use(mm) |
Standard Packing (m/roll) |
|
3.0 |
1-4 |
2000 |
|
4.0 |
2-6 |
2000 |
|
5.0 |
3-7 |
2000 |
|
6.0 |
4-9 |
2000 |
|
8.0 |
5-11 |
1000 |
|
10.0 |
7-14 |
1000 |
|
12.0 |
8-16 |
1000 |
|
15.0 |
10-20 |
1000 |
|
20.0 |
14-25 |
1000 |
|
25.0 |
18-30 |
500 |
|
30.0 |
20-40 |
500 |
|
40.0 |
30-52 |
250 |
|
50.0 |
40-65 |
250 |
|
65.0 |
45-105 |
100 |
|
76.0 |
64-120 |
100 |
