- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Lumiax
-
Model Number:
-
MPPT3050-DC32LiG
-
Work Time (h):
-
Dusk to Dawn/ Timer
-
Max PV Power:
-
60W
-
Max PV Voltage:
-
34V
-
Warranty:
-
2 years
-
Battery type:
-
Lithium
-
Battery voltage:
-
3.2V
-
Output votlage:
-
12~34V
-
Output current:
-
0.1~1.5A
-
Output power:
-
25W/60W
-
MPPT tracking efficiency:
-
99.9%
-
Charge conversion:
-
93%
-
Ambient temperature:
-
-35℃~60℃
-
Ambient humidity:
-
0~100%RH
-
Protection degree:
-
IP67
Quick Details
-
Type:
-
MPPT
-
Application:
-
Solar street light
-
Place of Origin:
-
China
-
Brand Name:
-
Lumiax
-
Model Number:
-
MPPT3050-DC32LiG
-
Work Time (h):
-
Dusk to Dawn/ Timer
-
Max PV Power:
-
60W
-
Max PV Voltage:
-
34V
-
Warranty:
-
2 years
-
Battery type:
-
Lithium
-
Battery voltage:
-
3.2V
-
Output votlage:
-
12~34V
-
Output current:
-
0.1~1.5A
-
Output power:
-
25W/60W
-
MPPT tracking efficiency:
-
99.9%
-
Charge conversion:
-
93%
-
Ambient temperature:
-
-35℃~60℃
-
Ambient humidity:
-
0~100%RH
-
Protection degree:
-
IP67
Product Description

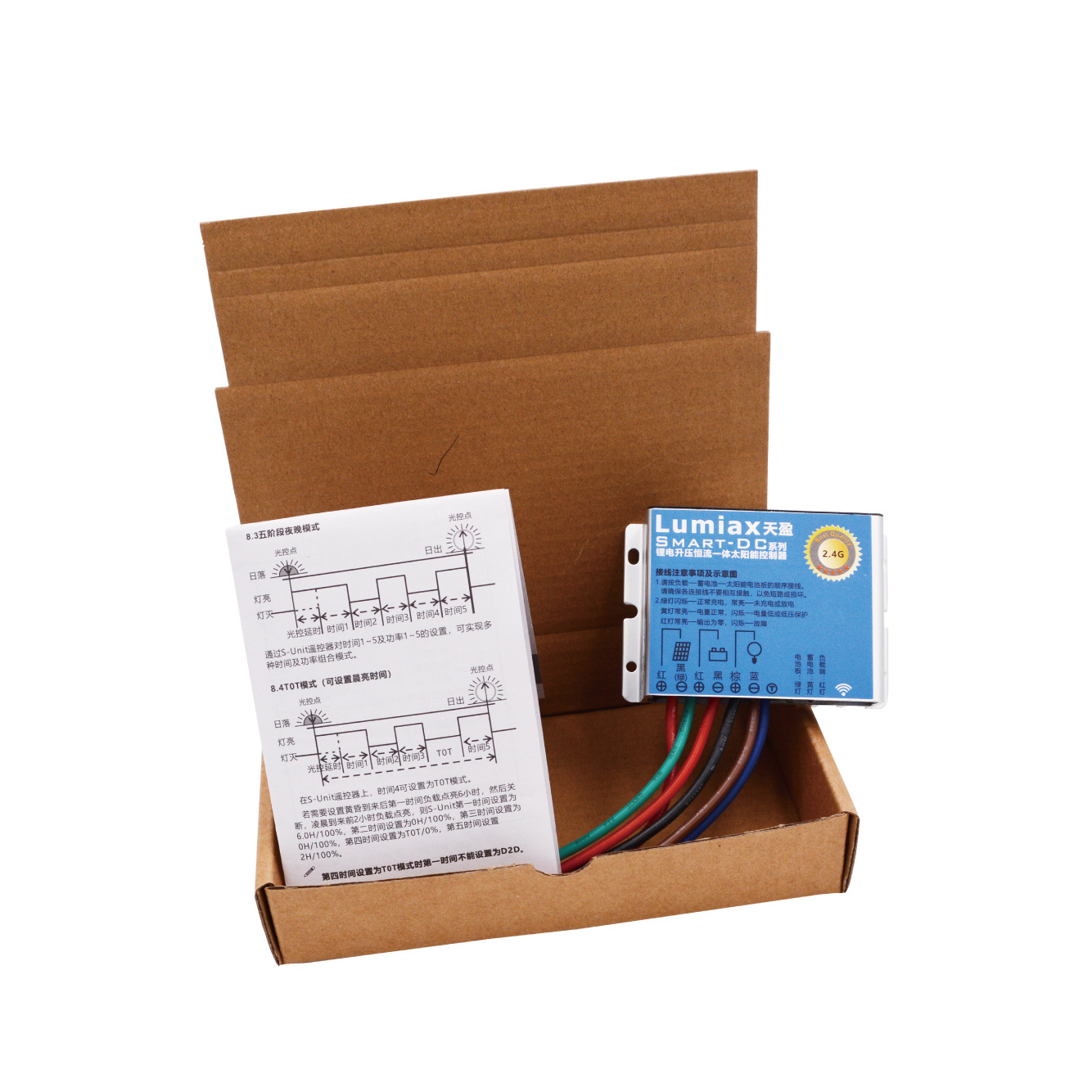

3.2V mppt solar street light controller
Suit for 25W,60W LED
Output constant current
5 stages timer and dimming percentage
Remote control to monitor and set parameters
IP67
Specification
|
|
MPPT2050-DC32Li
|
MPPT3050-DC32LiG
|
|
|
Max charging current
|
20A
|
30A
|
|
|
Charging voltage target
|
3.5~5.0V(Programmable)
|
|
|
|
Charging voltage recovery
|
2.9~4.9V(Programmable)
|
|
|
|
Low voltage disconnect
|
2.4~4.0V (Programmable)
|
|
|
|
Low voltage reconnect
|
2.6~4.2 (Programmable)
|
|
|
|
Max battery voltage
|
10V
|
|
|
|
Battery type
|
Lithium
|
|
|
|
0℃ Charging protection
|
Yes, Slow, No(Programmable)
|
|
|
|
Max volt on PV terminal
|
25V
|
34V
|
|
|
Max input power
|
65W
|
100W
|
|
|
MPPT tracking range
|
(Vb+1.0V)~Voc*0.9
|
|
|
|
Day/Night threshold
|
1.0~3.0V (Programmable)
|
|
|
|
Day/Night delay time
|
0~30min(Programmable)
|
|
|
|
Output power
|
1~25W
|
10~60W
|
|
|
Output voltage
|
12~34V
|
|
|
|
Output current
|
0.1~1.5A(Programmable)
|
|
|
|
Min power
|
0.3W(Dimming)
|
|
|
|
Current precision
|
±2%
|
|
|
|
Auto dimming
|
Yes,No,365
|
|
|
|
Voltage of start dimming
|
10.0 ~ Charging voltage target(Programmable)
|
|
|
|
Dimming percentage
|
1~20%(Programmable)
|
|
|
|
Max tracking efficiency
|
>99.9%
|
|
|
|
Max charge conversion
|
93%
|
95%
|
|
|
Max LED driver efficiency
|
93%
|
95%
|
|
|
Self consumption
|
23mA
|
|
|
|
Protection degree
|
IP67
|
|
|
|
Max altitude
|
4000m
|
|
|
|
Size(mm)
|
85.8*81*23.1
|
112*76*30mm
|
|
|
Weight(g)
|
280g
|
450g
|
|
