Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BISON
-
Model Number:
-
BS9500DSE
-
Weight:
-
220KG
-
Product name:
-
Diesel Generator
-
Color:
-
Customer Required
-
Engine model:
-
BS1100F
-
Engine type:
-
Single Cylinder
-
Rated Power:
-
8.5KW
-
Max. power:
-
8KW
-
Fuel tank capacity:
-
25L
-
Function:
-
Generator Provide Electric Power
-
Certification:
-
CE/ISO9001
Quick Details
-
Rated Voltage:
-
110V, 220V, 230V, 240V, 380v, 400V, 480V
-
Rated Current:
-
12V/8.3A
-
Frequency:
-
50/60HZ
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BISON
-
Model Number:
-
BS9500DSE
-
Weight:
-
220KG
-
Product name:
-
Diesel Generator
-
Color:
-
Customer Required
-
Engine model:
-
BS1100F
-
Engine type:
-
Single Cylinder
-
Rated Power:
-
8.5KW
-
Max. power:
-
8KW
-
Fuel tank capacity:
-
25L
-
Function:
-
Generator Provide Electric Power
-
Certification:
-
CE/ISO9001

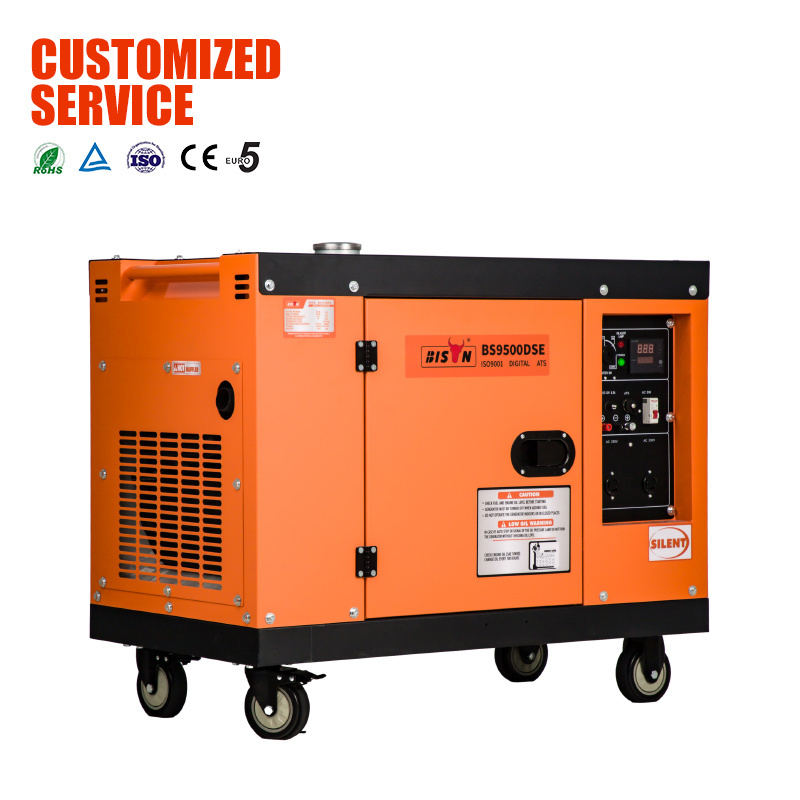

Bison Exporters 240V 415V 1100F Three Phrase 8Kw 8000Watt Low Noise Diesel Generator
|
Model
|
BS6500DSE
|
BS7500DSE
|
BS8500DSE
|
BS9500DSE
|
BS10500DSE
|
||||
|
Max Output(kW)
|
5
|
6.5
|
7.5
|
8.5
|
9.5
|
||||
|
Rated Output(kW)
|
4.5
|
6
|
7
|
8
|
9
|
||||
|
Rated AC Voltage(V)
|
110/120,220,230,240,120/240,220/380,230/400,240/415
|
|
|
|
|
||||
|
Frequency(Hz)
|
50/60
|
|
|
|
50
|
||||
|
Engine Speed(rpm)
|
3000/3600
|
|
|
|
3000
|
||||
|
Power Factor
|
1
|
|
|
|
|
||||
|
DCOutput(V/A)
|
12V/8.3A
|
|
|
|
|
||||
|
Phase
|
Single Phase or Three Phase
|
|
|
|
|
||||
|
Alternator Type
|
Self-Excited, 2-Pole, Single Alternator
|
|
|
|
|
||||
|
Starting System
|
Electric
|
|
|
|
|
||||
|
Noise Level(dB at 7m)
|
68-70
|
|
|
|
70-73
|
||||
|
Fuel Tank Capacity(L)
|
16
|
16
|
16
|
25
|
25
|
||||
|
Continuous Work(hr)
|
8.5
|
8
|
7.5
|
8
|
7.5
|
||||
|
Engine Model
|
186FA
|
192F
|
195F
|
1100F
|
1103F
|
||||
|
Engine Type
|
Single-Cylinder,Vertical, 4-Stroke Air-Cooled Diesel Engine
|
|
|
|
|
||||
|
Displacement(cc)
|
418
|
495
|
531
|
660
|
720
|
||||
|
Bore×Stroke(mm)
|
86×72
|
92×75
|
92×75
|
100×84
|
103×88
|
||||
|
Fuel Consumption Rate(g/kW/h)
|
≤280
|
≤280
|
≤280
|
≤230
|
≤230
|
||||
|
Fuel Type
|
0# or -10# Light Diesel Oil
|
|
|
|
|
||||
|
Lubrication Oil Volume(L)
|
1.65
|
|
|
2.5
|
|
||||
|
Combustion System
|
Direct Injection
|
|
|
|
|
||||
|
Standard Features
|
Voltmeter, AC Output Socket, AC Circuit Breaker, Oil Alert
|
|
|
|
|
||||
|
Optional Features
|
Four Sides Wheels, Digital Meter, ATS,Remote Control
|
|
|
|
|
||||
|
Dimension(LxWxH)(mm)
|
920×560×820
|
|
|
1110×760×920
|
|
||||
|
Gross Weight(kg)
|
156
|
163
|
164
|
220
|
225
|
||||
