Quick Details
-
Dimension(L*W*H):
-
4500x2800x5800mm
-
Weight:
-
5T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
Raymond Mill
-
color:
-
as per request
-
structure:
-
Three-dimensional
-
screen-passing rate:
-
can reach 99%
-
transmission device:
-
airtight gear case and zonal wheel
-
electric system:
-
Centralized control
-
Spare parts supplying:
-
Available
-
After sale service:
-
Available
-
Test&Installation:
-
Professional Engineer Assigned
-
Local Service Location:
-
Philippines
-
Certification:
-
ISO
Quick Details
-
Capacity(t/h):
-
0.6-1.8
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UNIQUE
-
Dimension(L*W*H):
-
4500x2800x5800mm
-
Weight:
-
5T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
Raymond Mill
-
color:
-
as per request
-
structure:
-
Three-dimensional
-
screen-passing rate:
-
can reach 99%
-
transmission device:
-
airtight gear case and zonal wheel
-
electric system:
-
Centralized control
-
Spare parts supplying:
-
Available
-
After sale service:
-
Available
-
Test&Installation:
-
Professional Engineer Assigned
-
Local Service Location:
-
Philippines
-
Certification:
-
ISO

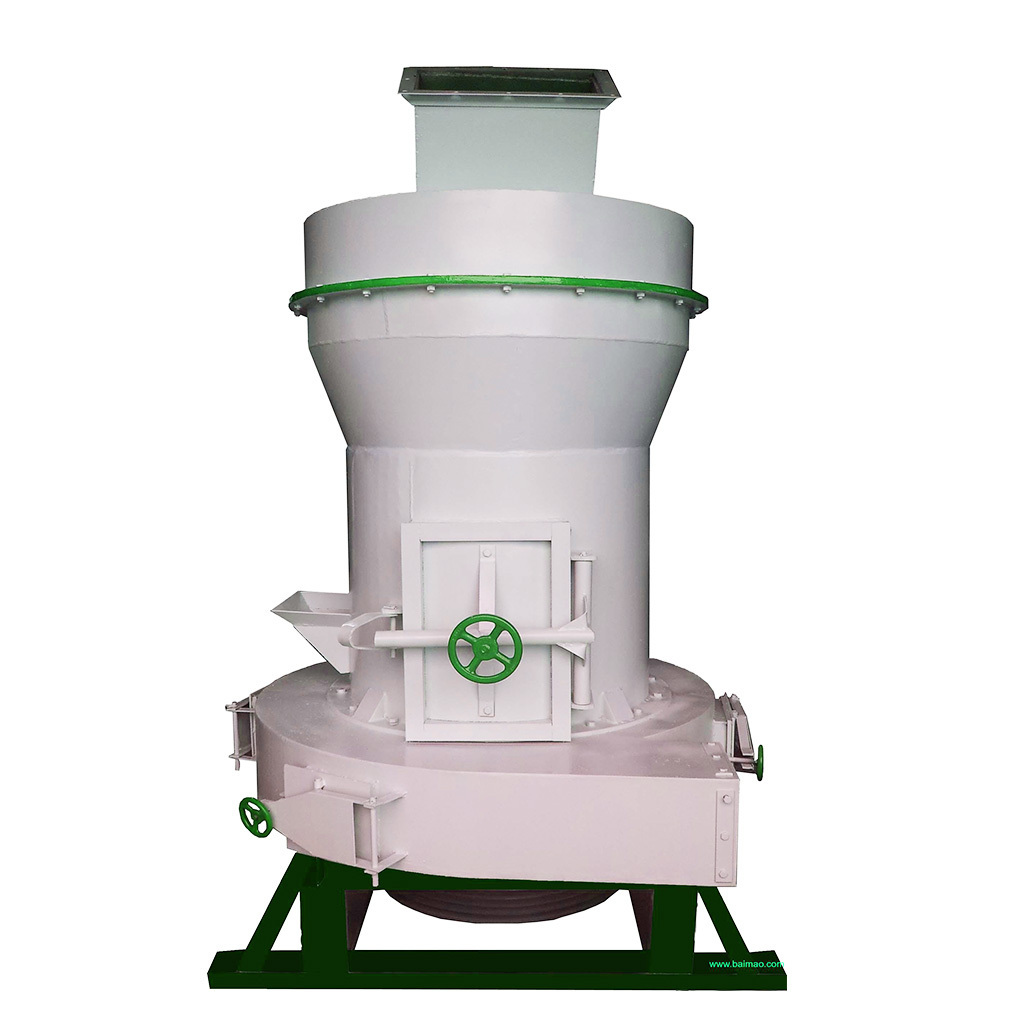

Popular small raymond grinding mill in stock
Based on sound quality products and good sales service, Unique company supplies Raymond mill which is suitable for grinding barite, calcite, potash feldspar, talcum, marble, limestone, ceramics, etc.
Raymond mill is a calssic type mill, which can be used to grind non-flammable and non-explosive materials in the fields of building materials, mining, metallurgy and chemical industry with raw material hardness less than 7.3 in Moh’s scale and humidity less than 6%.
Features
Three-dimensional structure
Land-saving
The screen-passing rate can reach to 99%
The transmission is steady and reliable
The transmission device of mainframe adopts airtight gear case and zonal wheel
Centralized control for the electric system, convenient to operate.
Model with specifications:
| Model | 3R2714 | 4R3216 | 5R4119 | 6R4525 |
| Mill roller quantity(piece) | 3 | 4 | 5 | 6 |
| Feeding size(mm) | 15-20 | 20-25 | 20-25 | 25-30 |
| Final product size(mm) | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 | 0.044-0.125 |
| Capacity(t/h) | 2-10 | 4-45 | 8-78 | 16-176 |
| Speed of centre shaft(r/min) | 150 | 130 | 105 | 82 |
| Diameter of Mill ring(mm) | 930 | 1073 | 1400 | 1770 |
| Diameter of mill roller(mm) | 270 | 320 | 410 | 450 |
| Height of mill roller(mm) | 140 | 160 | 190 | 250 |
| Power(kw) | 22 | 37 | 75 | 132 |
Packaging: Standard Container Packs or in Bulk.
Shipping: we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
After-sale service
1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply
