Quick Details
-
Product name:
-
Fpv Video Transmitter
-
Function:
-
Long-distance transmission 1500-2000 meters
-
Material:
-
Aluminum Alloy
-
Power:
-
DC 12v
-
Keyword:
-
Working frequency: 1.2G-1.3G 5.8GHz
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
600mW FPV Video Transmitter
-
Type:
-
Drone remote control
-
Product name:
-
Fpv Video Transmitter
-
Function:
-
Long-distance transmission 1500-2000 meters
-
Material:
-
Aluminum Alloy
-
Power:
-
DC 12v
-
Keyword:
-
Working frequency: 1.2G-1.3G 5.8GHz
|
Specification for TS832 Transmitter:
|
Specification for RC832 Receiver:
|
|
Modulated: Wideband FM Modulation
|
Power Supply: DC 12V
|
|
40 channels: Cover A, b, E, F, r bands
|
Working Frequency: 5.8GHz
|
|
Supply current: 220 mA
|
Sensitivity: ≤-90 dBm
|
|
Frequency: 5.8GHz 5 bands 40 channels, with Raceband: 5658-5917MHz
|
Type Standard: NTSC/PAL
|
|
Transmitting distance: > 3000m (open area)
|
Consumption Current: 200mA, Max
|
|
Transmitter connector:RP SMA female
|
Receiver connector: RP SMA female
|
|
Antenna connector: RP SMA male
|
Antenna connector: RP SMA male
|
|
Audio carrier Frequency: 6.5 MHz
|
Available Channel: 40CH
|
|
Audio Input Level: 0.5 ,2.0 Vp-p
|
Antenna Gain: 2dbi
|
|
Audio Input Impedance: 10K Ohm
|
Audio Carrier: 6.5MHz
|
|
Output Impedance: 50 Ohm
|
Audio Output Level: 1.0 Vp-p Typ 10 K Ohm
|
|
Operating Voltage:7-16V
|
Antenna impedance: 50 Ohm
|
|
Operating Temperature: -10 +85 ℃
|
Antenna Input Impedance: 50 Ohm TYP
|
|
Output Power: 27-28 dBm
|
Video impedance: 75 Ohm
|
|
Video Format: NTSC/PAL
|
Video Format : NTSC/PAL
|
|
Video Band Width: 0-8.0 MHz
|
Video Output Level: 1.0 Vp-p Typ 75 Ohm
|
|
Video Input Level: 0.8,1.0,1.2 Vp-p
|
Dimension: 80x65x15mm
|
|
Video Input Impedance: 75 Ohm
|
Weight: 85g
|
|
Weight: 22g
|
Dimension (L×W×H): 3.15×2.56×0.59 inches
|
|
Dimension (L×W×H): 2.12×1.23×0.39 inches
|
|
|
Features:
40 channels: 5 bands and all frequencies compatible
Two switching buttons: easy to change frequency channels and bands
Two digital display: real-time positioning which frequency band and which channel received
Power off memory: replay the very last frequency band and channel
|
|

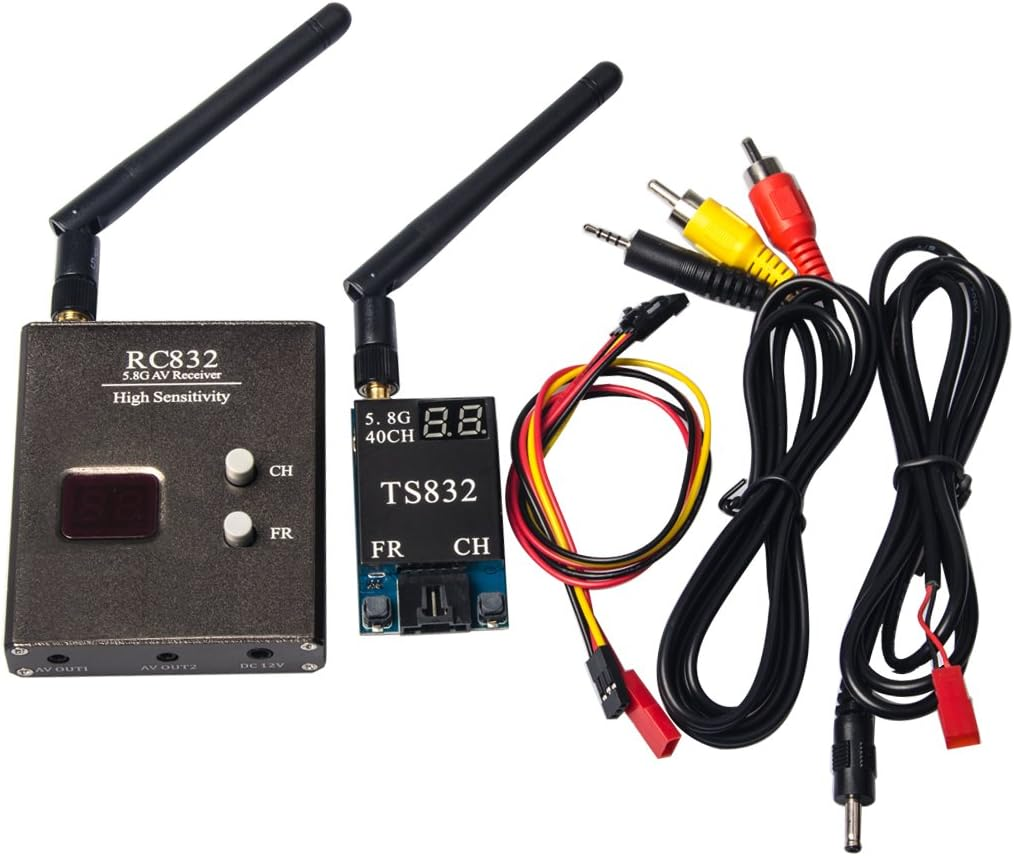

Package:
1 x WR832 5.8GHz 40CH FPV Receiver
1 x WT832 5.8GHz 40CH FPV Transmitter
2 x Antenna
2 x Power cable
1 x AV cable
1 x User manual
|
