Quick Details
-
Range of adjustable measurement:
-
-6.0mm~+6.0mm(0.05mm/step)
-
Diameter of processed lenses:
-
22mm ~100mm
-
Dimension of figure:
-
510(L)*490(W)*400(H)mm
-
Power:
-
500W
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Perlong
-
Model Number:
-
LE-300
-
Range of adjustable measurement:
-
-6.0mm~+6.0mm(0.05mm/step)
-
Diameter of processed lenses:
-
22mm ~100mm
-
Dimension of figure:
-
510(L)*490(W)*400(H)mm
-
Power:
-
500W

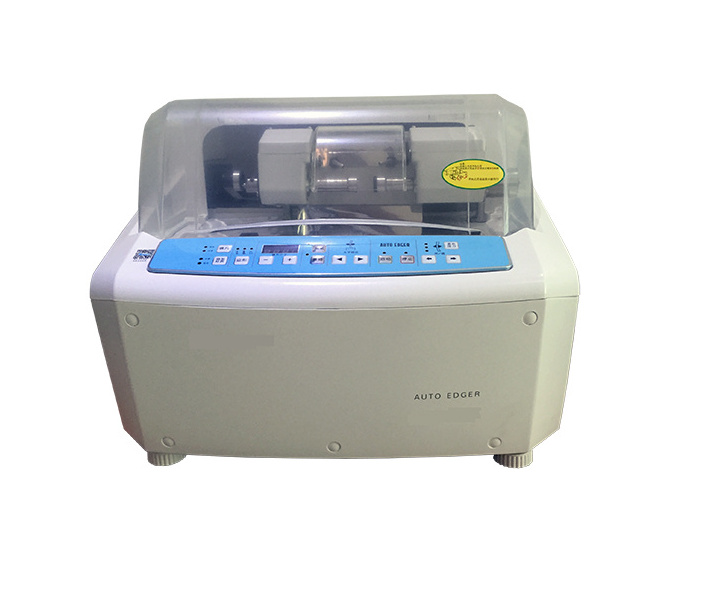

Auto Lens Edger with excellent quality double/single bevel
Added the automatic emendation system in this new model .it can do automatic emendation when
the machine start up assure the size of lens (left and right )is uniform and improve the precision
Automatic correction system is used. Carry on revision of initialization when machine is started every time. Base on LE-300, LE-320 added bevel polishing function.
Technical parameter:
Diameter of processed lenses: min: 22mm; max: 100mm
Range of adjustable measurement: -6.0mm~+6.0mm (scale: 0.05mm)
Dimension of figure: 510(l) 490(w) 400(h)mm
Weight: 49kg
Eectrical source: AC110V/ 220V, 50hz
Power: 500w
Model:LE-300/320P/400/420
Specification
|
Model
|
LE-300
|
|
The size of Diamond wheel:
(The diameter and width of Grinding wheel)mm |
CR Wheel : 110x16 Glass Wheel :100x16
V Groove Wheel:100x23 Polishing Wheel: 100x11 |
|
Available lens range:
|
22mm~100mm
|
|
The processing type:
|
pointy edges, platband , flat polishing
|
|
The lens material:
|
CR, Glass
|
|
Production size:
|
510Lx490Wx400H (mm)
|
|
Package size:
|
770Lx710Wx630H (mm)
|
|
Weight:
|
49KG
|
|
Voltage:
|
Voltage:220V±10% frequency:50Hz
|
|
Power:
|
500W
|
1.What is payment term?
T/T, Western Union, L/C
2.What about quality assurance?
Production / Inspection report before your order packed.We offer 1 year warranty period beginning from the time of shipment for medical equipment .
3.What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 7-8 days after receiving your payment.
4.What about the price level?
Our prices are competitive compared with those at the same quality level, and we keep striving to provide the best pricing to our customers.
