Quick Details
-
Brand Name:
-
ZUPPER
-
Model Number:
-
CP-700AL
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
N/A
-
Cable Length:
-
N/A
-
Outlet Size:
-
N/A
-
Power:
-
N/A
-
Type:
-
hand
-
Max output pressure:
-
70Mpa
-
Output of the oil:
-
11cc
-
Capacity of oil:
-
900cc
-
Direction of piston:
-
double
-
package:
-
steel case
-
Measurement(LxWxH):
-
510x140x150mm
-
weight:
-
9kg
-
Certification:
-
ISO9001:2000
-
Feature:
-
hydraulic operated pump
Quick Details
-
Application:
-
Other
-
Pressure:
-
Other
-
Voltage:
-
220V
-
Brand Name:
-
ZUPPER
-
Model Number:
-
CP-700AL
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
N/A
-
Cable Length:
-
N/A
-
Outlet Size:
-
N/A
-
Power:
-
N/A
-
Type:
-
hand
-
Max output pressure:
-
70Mpa
-
Output of the oil:
-
11cc
-
Capacity of oil:
-
900cc
-
Direction of piston:
-
double
-
package:
-
steel case
-
Measurement(LxWxH):
-
510x140x150mm
-
weight:
-
9kg
-
Certification:
-
ISO9001:2000
-
Feature:
-
hydraulic operated pump
Why Choose Us
Products Description

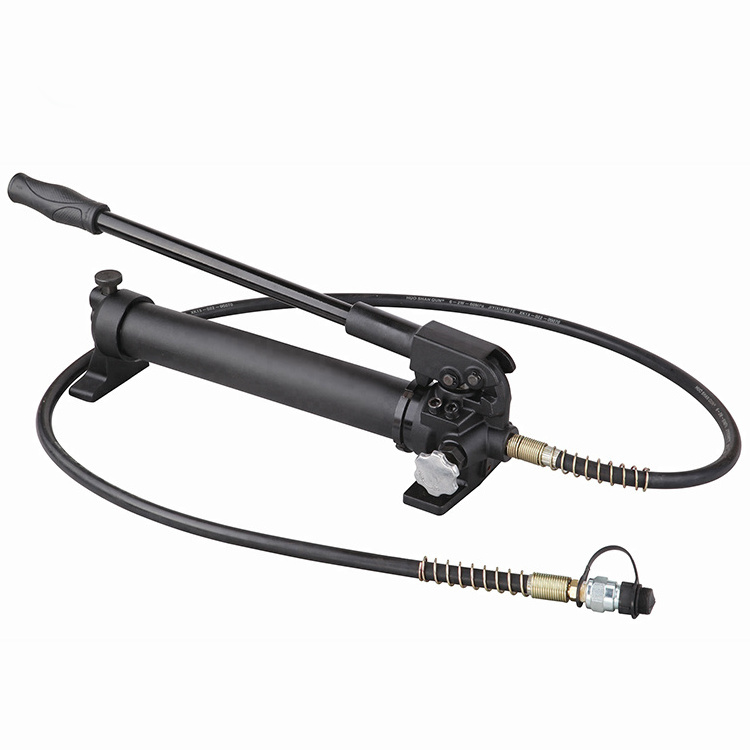

1. Hydraulic operated pump to drive crimping head, cutting heads and punching head including, high pressure hose and coupler plug
2. PT3/8? screw thread, the oil number is Shell Tellus T15, oil which must be changed every half year.
|
Item No
|
CP-700AL
|
|
Type
|
hand
|
|
Max output pressure
|
2Mpa(low pressure)70Mpa(high pressure)
|
|
Output of the oil
|
11cc(low pressure)1.4cc(high pressure)
|
|
Capacity of oil
|
940cc
|
|
Direction of piston
|
double
|
|
Weight
|
approx.9kg
|
|
Measurement(L x W x H)
|
510 x140x150mm
|
