- Product Details
- {{item.text}}
Quick Details
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
4.5
-
Drive Wheel:
-
4X2
-
Brand Name:
-
ZHONGLIAN
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
3850*2200*1000mm
-
Product name:
-

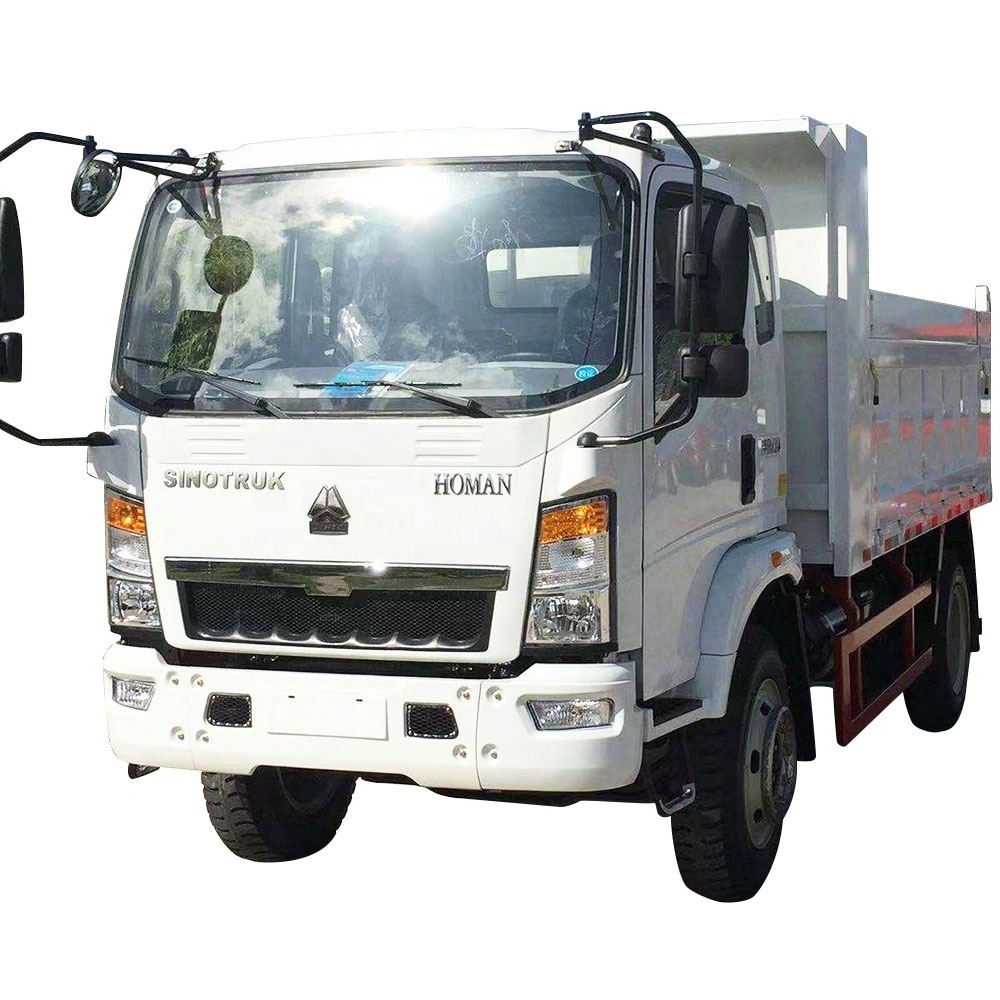

New 10 15 20 40 tons 4 wheel rc 20 cubic meters mining dump truck
-
Engine:
-
YC4D130-33, 130hp, Euro III emission
-
Cabin:
-
1880 cabin with one sleeper, with A/C, safety belts, with EVB
-
Transmission:
-
WLY653H, manual, 6 forwards & 1 reverse
-
Steering:
-
GY95, hydraulically assisted
-
Front axle:
-
1090N, 4.5T, drum brake
-
Rear axle:
-
1094D, 12T, central single reduction
-
Tire:
-
8.25R20, with one spare tire
-
Fuel tank:
-
120L
-
Box size:
-
3850*2200*1000mm
Quick Details
-
Condition:
-
New
-
Horsepower:
-
150 - 250hp
-
Emission Standard:
-
Euro 2
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
4.5
-
Drive Wheel:
-
4X2
-
Brand Name:
-
ZHONGLIAN
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
3850*2200*1000mm
-
Product name:
-
New 10 15 20 40 tons 4 wheel rc 20 cubic meters mining dump truck
-
Engine:
-
YC4D130-33, 130hp, Euro III emission
-
Cabin:
-
1880 cabin with one sleeper, with A/C, safety belts, with EVB
-
Transmission:
-
WLY653H, manual, 6 forwards & 1 reverse
-
Steering:
-
GY95, hydraulically assisted
-
Front axle:
-
1090N, 4.5T, drum brake
-
Rear axle:
-
1094D, 12T, central single reduction
-
Tire:
-
8.25R20, with one spare tire
-
Fuel tank:
-
120L
-
Box size:
-
3850*2200*1000mm
New 10 15 20 40 tons 4 wheel rc 20 cubic meters mining dump truck
| Vehicle Dimensions (mm) | |
| Wheelbase | 3450 |
| Front overhang | 1280 |
| Rear overhang | 1310 |
| Wheel track of front axle | 1750 |
| Wheel track of rear axle | 1720 |
| Chassis length | 5785 |
| Approach angle (o) | 28 |
| Departure angle (o) | 22 |
| Maximum driving speed (km/h) | 80 |
| Maximum gradeability (%) | 31-33 |
| Minimum ground clearance (mm) | 350 |
| Minimum turning diameter (m) | <16.5 |
| Fuel consumpon (L/100km) | 25-28 |
| Cargo body size | 3850*2200*1000 |
| Overall Dimension | 6040*2300 *2850 |
