Quick Details
-
Power (kW):
-
3.7
-
Range of Spindle Speed(r.p.m):
-
2200 - 4580 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DZJX
-
Voltage:
-
220V/380V/450/Customizable
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
150 KG
-
Keyword:
-
Universal Crusher
-
Speed:
-
220r/min-4500r/min
-
After-sales Service:
-
Free spare parts, Field installati
-
Weight:
-
280KG-1050KG
-
Power:
-
4000W-37000W
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
ISO,CE,BV
Quick Details
-
Output (kg/h):
-
30 - 3000 kg/h
-
Feeding Size (mm):
-
2 - 60 mm
-
Output Size (mesh):
-
12 - 325 mesh
-
Power (kW):
-
3.7
-
Range of Spindle Speed(r.p.m):
-
2200 - 4580 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DZJX
-
Voltage:
-
220V/380V/450/Customizable
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
150 KG
-
Keyword:
-
Universal Crusher
-
Speed:
-
220r/min-4500r/min
-
After-sales Service:
-
Free spare parts, Field installati
-
Weight:
-
280KG-1050KG
-
Power:
-
4000W-37000W
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
ISO,CE,BV
Products Description

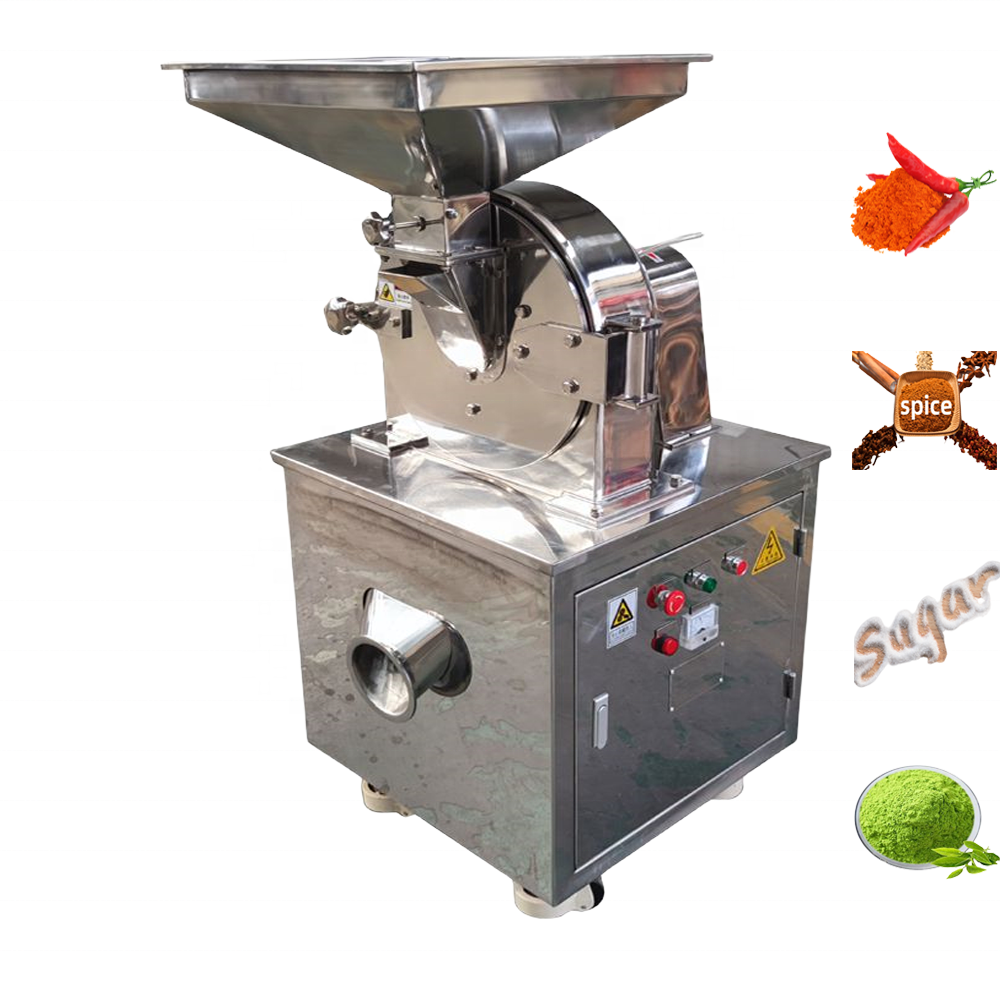

DZJX Stainless Steel Cinnamon Spice Grinding Milling Machine Ultrafine Powder Pulverizer Ginger Sugar Salt Cocoa Grinder
*
The
Pulverizer
mill is widely used in chemical, pharmaceutical, food and other industries, especially suitable for crushing spices (fennel, turmeric, chili, pepper, chickpea, cinnamon, etc.), tea leaf,
moringa leaf,
coffee beans, salt, sugar,
chemical raw material
etc.
* The machine is made up of feeding material part , crush part and dust collect part.
*
Low noise, no dust pollution and simple operation.
*
The crushing size ranges from 10 mesh to 500 mesh (8mm-25um), and the crushing size can be achieved by replacing the screen.
* Machine material is 304 stainless steel, meet GMP requirements, with CE certification.
* 6 types(chain hammer ,hammer mill , air cooling ,turbo wheel ,blade cut and refiner disc) of crushing disk, can be changed according to customer needs.
Product details
Hammer type :
E
specially suitable for the crushing of hard materials containing less fiber.
Air cooling type : The air volume in the machine cavity is large, and the machine cavity is not easy to heat. It has the advantages of smooth operation, convenient disassembly and cleaning, low noise and good crushing effect.
Turbo wheel type : e specially suitable for oil, viscosity, heat sensitive, fiber and other low hardness material crushing. High output, fine particle size, low noise, low energy consumption.
Refiner disc type : is main use for make food condiments, such as spice, ginger, curry flour.
Blade cut type : has special effect on material with fiber, like herb.
Air cooling type : The air volume in the machine cavity is large, and the machine cavity is not easy to heat. It has the advantages of smooth operation, convenient disassembly and cleaning, low noise and good crushing effect.
Turbo wheel type : e specially suitable for oil, viscosity, heat sensitive, fiber and other low hardness material crushing. High output, fine particle size, low noise, low energy consumption.
Refiner disc type : is main use for make food condiments, such as spice, ginger, curry flour.
Blade cut type : has special effect on material with fiber, like herb.
Inlet
Outlet
Screen mesh
Ventilation opening
Lock
Cold water pipe
Products Show
Application
The crusher mill machine is widely used in pharmaceutical, food, chemical, it can crush various of material.
Technical Parameter
|
Model
|
DZ20
|
DZ30
|
DZ40
|
DZ50
|
DZ80
|
||||
|
Capacity(kg/h)
|
20-50
|
30-300
|
40-400
|
80-500
|
200-1000
|
||||
|
Speed(r/min)
|
4500
|
3800
|
3400
|
2900
|
2200
|
||||
|
Feed size(mm)
|
<6
|
<10
|
<12
|
<12
|
<15
|
||||
|
Crush size(mesh)
|
12-320
|
12-120
|
12-120
|
12-120
|
12-120
|
||||
|
Power(kw)
|
4
|
5.5
|
7.5
|
11
|
37
|
||||
|
Weight(kg)
|
150
|
250
|
280
|
350
|
600
|
||||
|
Dimensions(mm)
|
670*670*1120
|
700*700*1340
|
750*820*1400
|
840*860*1550
|
2400*1100*2000
|
||||
Packing & Delivery
Related Products
About us
FAQ
Q:What factors I need to get a quotation?
A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity
distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage &Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of
cost.(note: Vulnerable parts do not include.)
A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity
distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage &Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the gurantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of
cost.(note: Vulnerable parts do not include.)
