Quick Details
-
Product name:
-
Tuner to IP Gateway
-
Input:
-
Tuners + ASI
-
Tuner Section:
-
DVB- S/S2, DVB-C/T/T2 /ISDB-T/ATSC
-
Output 1:
-
512 SPTS IP
-
Output 2:
-
16 MPTS IP output
-
BISS Descrambling:
-
Support
-
Power Supply:
-
100~240VAC, 50/60Hz
-
DisEqc Function:
-
Yes
-
Environment:
-
0~45℃(work);-20~80℃(Storage)
-
Dimensions:
-
482mmx410mmx44mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FNET
-
Model Number:
-
FN3508-8
-
Product name:
-
Tuner to IP Gateway
-
Input:
-
Tuners + ASI
-
Tuner Section:
-
DVB- S/S2, DVB-C/T/T2 /ISDB-T/ATSC
-
Output 1:
-
512 SPTS IP
-
Output 2:
-
16 MPTS IP output
-
BISS Descrambling:
-
Support
-
Power Supply:
-
100~240VAC, 50/60Hz
-
DisEqc Function:
-
Yes
-
Environment:
-
0~45℃(work);-20~80℃(Storage)
-
Dimensions:
-
482mmx410mmx44mm
8/16/24 FTA Digital Video Encoder Tuner with IP ASI Output Supports DVB-S/S2 DVB-C/T/T2 ISDB-T/ATSC Input HD Audio to IP Gateway
|
nput
|
Optional 1:16 tuners input +2 ASI input---SPTS output
Optional 2:14 tuners input +2 ASI input --- MPTS output Optional 3:16 tuners input --- MPTS output |
|
|
|
|||
|
Tuner Section
|
DVB-C
|
Standard
|
|
J.83A(DVB-C), J.83B, J.83C
|
|||
|
|
|
Frequency In
|
|
30 MHz~1000 MHz
|
|||
|
|
|
Constellation
|
|
16/32/64/128/256 QAM
|
|||
|
|
DVB-T/T2
|
Frequency In
|
|
30MHz ~999.999 MHz
|
|||
|
|
|
Bandwidth
|
|
6/7/8 M bandwidth
|
|||
|
|
DVB-S/S2
|
Input Frequency
|
|
950-2150MHz
|
|||
|
|
|
Symbol rate
|
|
DVB-S: QPSK 2~45Mbauds;
DVB-S2:QPSK1~45Mbauds, 8PSK 2~30Mbauds |
|||
|
|
|
Code rate
|
|
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
|
|||
|
|
|
Constellation
|
|
QPSK, 8PSK
|
|||
|
|
ISDB-T
|
Input Frequency
|
|
30-1000MHz
|
|||
|
|
ATSC
|
Input Frequency
|
|
54MHz~858MHz
|
|||
|
|
|
Bandwidth
|
|
6M bandwidth
|
|||
|
Output
|
512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast
|
|
|
|
|||
|
|
16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port (IP address and port number
of GE1 and GE2 are different), Unicast and Multicast |
|
|
|
|||
|
BISS Descrambling
|
Mode 1, Mode E (Up to 850Mbps) (descramble individual program)
|
|
|
|
|||
|
Miscellaneous
|
Dimension
|
|
482mm×410mm×44mm (W×L×H)
|
|
|||
|
|
Approx weight
|
|
3.6kg
|
|
|||
|
|
Environment
|
|
0~45℃(work);-20~80℃(Storage)
|
|
|||
|
|
Power requirements
|
|
100~240VAC, 50/60Hz
|
|
|||
|
|
Power consumption
|
|
20W
|
|
|||
Product Description

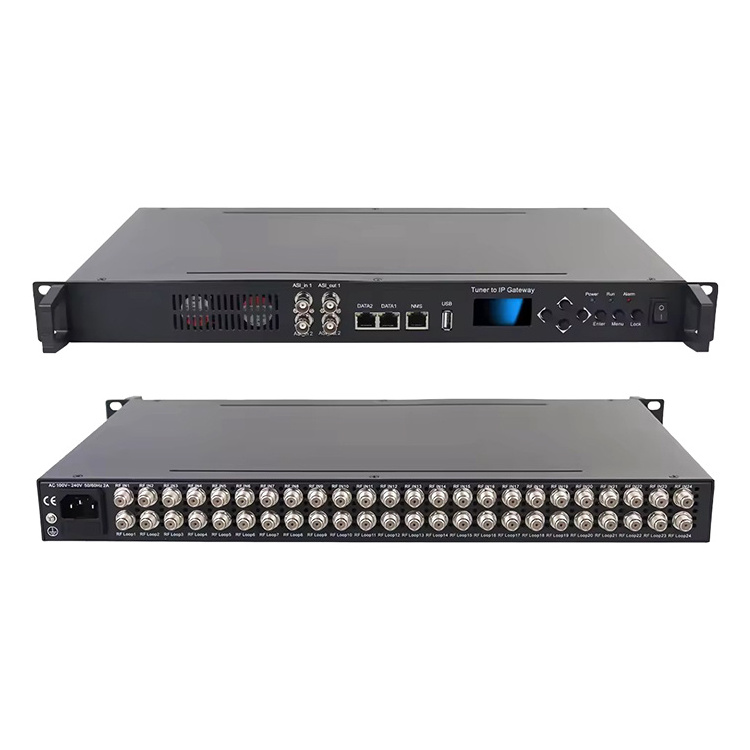

FN3508 Tuner to IP Gateway is a head-end interface conversion device which supports MPTS and SPTS output switchable. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 16 tuners into IP package, or directly convert the TS from ASI input and tuner into IP package, then output the IP package through different IP address and ports. BISS function is also embedded for tuner input to descramble your tuner input programs.
Features
* Support 16 FTA DVB- S/S2 (DVB-C/T/T2 /ISDB-T/ATSC optional )input, 2 ASI input
* Support BISS descrambling
* Support DisEqc function
* 16 MPTS or 512 SPTS output (MPTS and SPTS output switchable)
* 2 GE mirrored output (IP address and port number of GE1 and GE2 are different), up to 850Mbps---SPTS
* 2 independent GE output port, GE1 + GE2---MPTS
* Support PID filtering, re-mapping (Only for SPTS output)
* Support “Null PKT Filter” function (Only for MPTS output)
* Support Web operation
* Support BISS descrambling
* Support DisEqc function
* 16 MPTS or 512 SPTS output (MPTS and SPTS output switchable)
* 2 GE mirrored output (IP address and port number of GE1 and GE2 are different), up to 850Mbps---SPTS
* 2 independent GE output port, GE1 + GE2---MPTS
* Support PID filtering, re-mapping (Only for SPTS output)
* Support “Null PKT Filter” function (Only for MPTS output)
* Support Web operation
