Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Golden House
-
Model Number:
-
GH-0051
-
Door Type:
-
Entry doors
-
Color:
-
Customized Color
-
Certificate:
-
WHI/FM/UL
-
Infilling:
-
Mineral Fire Board
-
Accessories:
-
Lock+handles+hinge
-
Opening direction:
-
Inward/Outward
-
Packing:
-
Carton Box+Foam+Plastic Bag
-
Function:
-
Fire Rating And Sound insulation
-
Sliding Door Type:
-
Closet Doors
-
Position:
-
Commercial
Quick Details
-
Door Material:
-
MDF
-
Feature:
-
Decoration
-
Main Material:
-
Moulded Board
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Golden House
-
Model Number:
-
GH-0051
-
Door Type:
-
Entry doors
-
Color:
-
Customized Color
-
Certificate:
-
WHI/FM/UL
-
Infilling:
-
Mineral Fire Board
-
Accessories:
-
Lock+handles+hinge
-
Opening direction:
-
Inward/Outward
-
Packing:
-
Carton Box+Foam+Plastic Bag
-
Function:
-
Fire Rating And Sound insulation
-
Sliding Door Type:
-
Closet Doors
-
Position:
-
Commercial

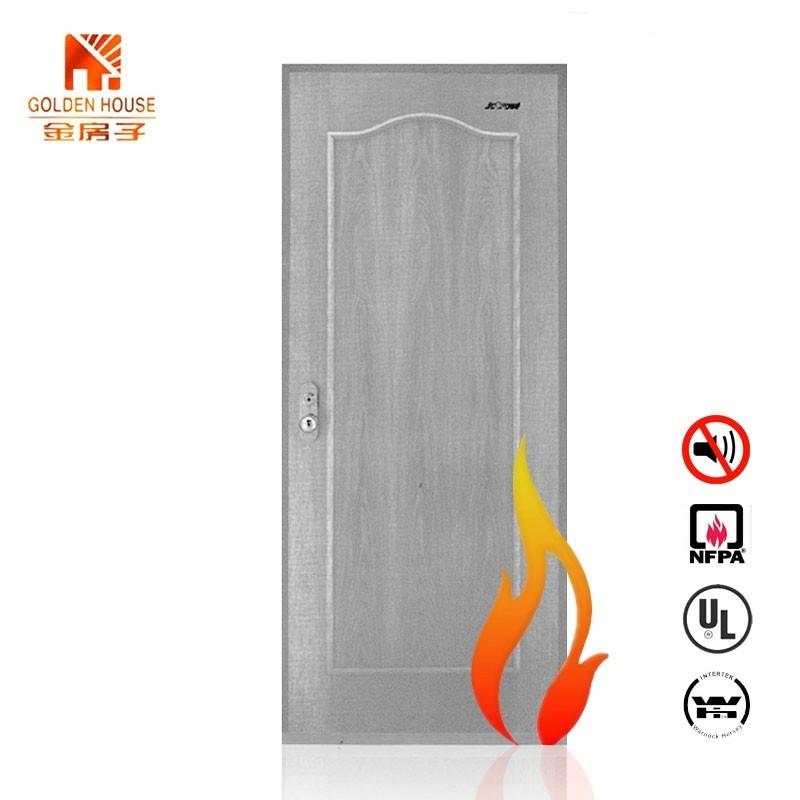

38 DB Hotel Acoustic Wood Fire Rated Door Soundproof Door For Clubs
GH Wooden Fire Rated Door Features:
- 20mins 45mins 90mins or more fire rated time label(UL ,WHI).
- sound insulation class 38 db .
- MDF board+natrual veneer or enigneered veneer or laminated melamine finished.
- perlite mineral fireboard filling core with stronger fireproof grade.
- Surface treatment be primer or lacquer painting or half full sealed painting.
- Door comes pre-drilled and mortised for added convenience
- Steel metal jamb frame or wodden Frame (HDF+LVB+MDF) with melamine fiish or natrual veneer.
- Knock-down shipment or pre-hung shipment is possible.
Specification:
| Product name | 90 minutes fire rating and STC solid wooden door standard | |
| Size | Standard size(width not beyond 1200mm, | |
| Height not beyond 2800mm, | ||
| leaf thickness:45-60mm | ||
| frame thickness:80-120mm | ||
| Opening | Left hand, Right hand, Left hand reverse, Right hand reverse | |
| Design | Single/Double/Un-equal Door | |
| Flush type | ||
| Material of leaf | MDF with acoustic filling core | |
| Material of frame | HDF /MDF with acoustic seal | |
|
Fire rated time
STC |
Class A | ≥90mins |
| Class B | ≥45mins | |
|
Class C sound transmission class |
≥20mins 38 DB |
|
| Filling material | Mineral Fire Board and dumboard | |
| Surface Finish | veneered PU painting or lacquar Painting or melamine lamimated | |
| Color | RAL color list or customized | |
| Accessories | Hinges | 3 -8pcs, ball bearing hinges, spring hinges, hidden hinges |
| Lock: | cylinder lock, mortise lock, panic lock, electric lock, magnetic lock | |
| Rubber seal | Fireproof and STC rubber seal | |
| Door Closer | UL list | |
| other hardwares | customized | |
Finish:
-
Flush wood veneer, the structure is consist of MDF/ptywood with veneer, stile and rail, solid wood
edge, chipboard or mineral fireboard to be inside core, and it can be primer paint or stained
painting finish. - High pressure decorative laminate door
-
(Visible surface) Same as face material laminated (1.0mm) with edge-before-face construction.
Optional edges are: unfinished or finished at factory, and painted at factory with a mill option
hardwood edges for staining or painting. -
Clearances: 1/8" top. 1/8" lock and hinge stiles. See NFPA-80 6.3.1.7,1,2013 Edition. Bottom
clearance is 3/4" max. (Bottom of the door to top finish floor) See NFPA-80 4.8.4.1, 2013 edition.
Hollow metal frame:
Frames are manufactured to accommodate any wall condition, including masonry frame
and drywall frame type. A wide variety of frame anchors are available. Width up to and
including 4'0"
,
height up to and including 8'0"
- Available in knock down frame and welded frame.
- Material have cold roller or galvanized steel
- Steel thickness have 16ga. 14ga
- Fire rating from 45mins to 180mins
- Surface painting can match with wooden door color
1991--Golden house started production of metal and wood fire door.
1998-- expanded production plant , a large production line covering area is 1, 200,000 sq.
2003—imported German solid wood and metal door production line.
2006--become the first factory who possesses INTERTEK WH and UL FM fire certificates.
2007--Set up a distribution center with big warehouse containing 6000 doors in Los Angeles USA.
2012--Set up a distribution center with warehouse containng 5000 doors in Vancouver Canada.
2015--Authorized WHI fire label with fire-rated 3 hours on double steel door and UL fire label with fire-rated 20 minutes on wooden door.
2018--Authorized UL fire label with fire-rated 90 minutes on steel doors.
2019--Authorized WHI fire label with fire-rated 90 minutes on wooden door matched steel frame.
2020--Authorized UL fire label with fire-rated 3 hours on steel door and frame.
2021--Authorized the 34dB sound insulation steel door certificate.
2022--Fire Door Glass Light Frames holder is UL certified
1.Are you factory or trading company ?
A:Of course we are a professional leading door factory loated in DALIAN city ,china .
2.can be mixed different colors and models together in one order?
A:Surely yes. Mixed colors and models are acceptable in One 20GP or in one 40HQ we suggested 3-6 models.
3.What’s your policy for samples?
A:For small mini sample,we can offer for free.For completely doors .we shall charge some cost on several sample doors ,and we will refund the sample charge to you if you place bulk order next .
4.What’s your trade terms and payment term?
A:Our trade term is EXW,FOB,CFR and CIF. Payment term is 50% deposit by T/T before mass production,the balance to be paid before delivery .
5.What’s your special service ?
A:Overseas installation quiding service.
6.Can you fabricate the doors according to our drawing?
A:Yes,can be customized under your drawing .But customer should send us drawing to check firstly,then we shall reponse you the correct drawing for your confirmation before official production.
7.How about your warranty?
A:our Warranty is over five years.
