AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with
3-year international warrnaty
.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Foldable Professional Video Switcher
-
Input:
-
3G-SDI *4, HDMI 2.0 / DVI/ USB*2
-
Input Format:
-
SD/HD/3G-SDI 1080p@60hz, HDMI 4K@60
-
PVW Output:
-
3G-SDI*1 (AUX)
-
PGM Output:
-
3G-SDI *3, HDMI*2
-
Multiview Output:
-
HDMI*1
-
Output Format:
-
Up/down Scaling
-
Audio Mixer:
-
3 channel, 7 source
-
Dimension:
-
310*180*70mm
-
PGM Video Record:
-
SD Memory Card
Quick Details
-
Model Number:
-
VS0605U
-
Brand Name:
-
AVMATRIX
-
Place of Origin:
-
Fujian, China
-
Product name:
-
Foldable Professional Video Switcher
-
Input:
-
3G-SDI *4, HDMI 2.0 / DVI/ USB*2
-
Input Format:
-
SD/HD/3G-SDI 1080p@60hz, HDMI 4K@60
-
PVW Output:
-
3G-SDI*1 (AUX)
-
PGM Output:
-
3G-SDI *3, HDMI*2
-
Multiview Output:
-
HDMI*1
-
Output Format:
-
Up/down Scaling
-
Audio Mixer:
-
3 channel, 7 source
-
Dimension:
-
310*180*70mm
-
PGM Video Record:
-
SD Memory Card
Brief Introduction

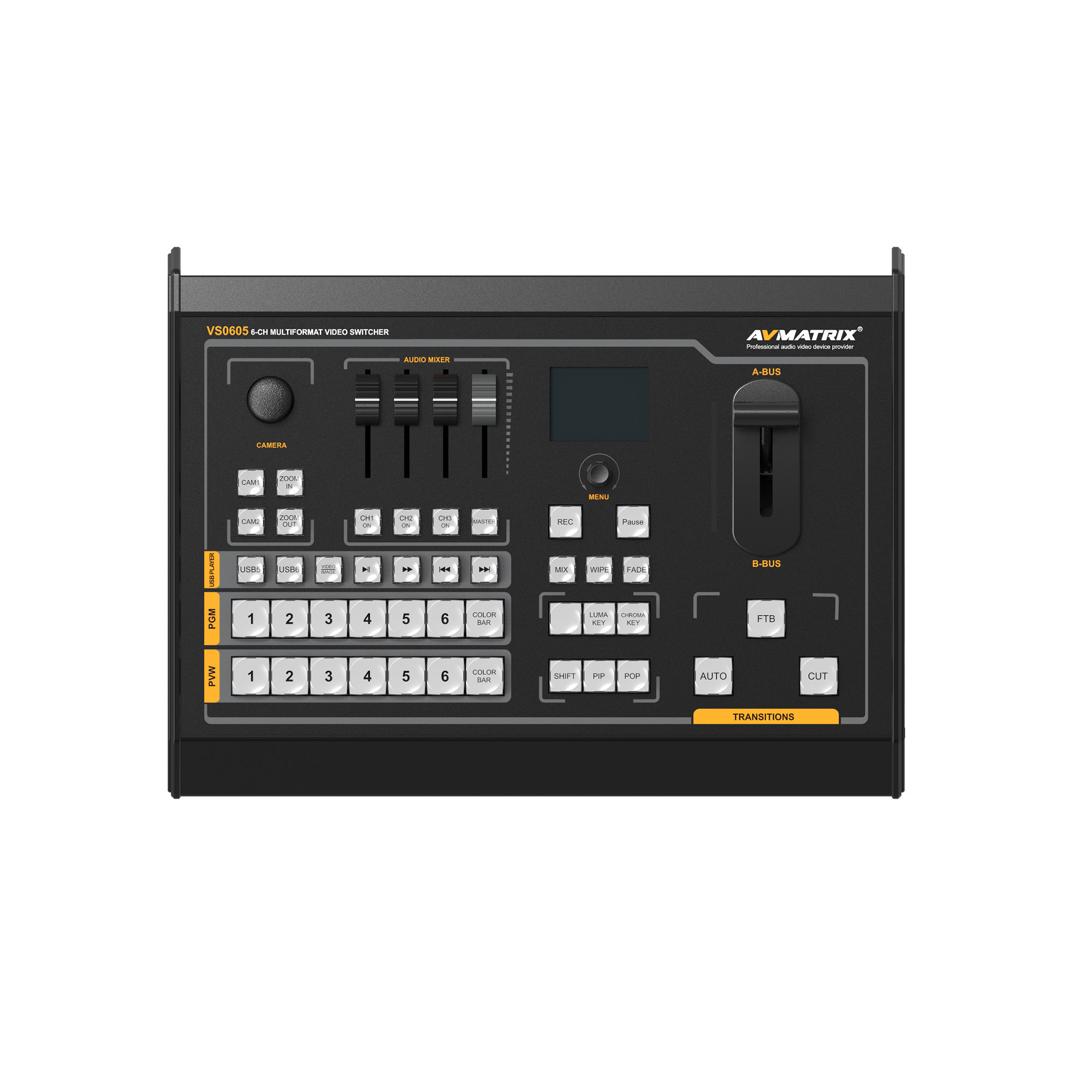

VS0605U
6 Channel Portable AIO Video Switcher Mixer with Recorder
|
Features
|
Main Features
* Uncompressed capture for live streaming, comply with UVC & UAC * 6 channel inputs: 4×SDI and 2×DVI-I/ HDMI/ VGA/ USB player * 3×SDI/ HDMI PGM outputs, 1×SDI AUX output, 2×SDI/ HDMI multiview outputs * T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects * Luma Key/ Chroma Key for virtual studio * Record PGM video to SD card, up to 1080p60 * Remote PTZ camera control: Visca & Pelco D/P protocols * PiP & PoP mode size and position is adjustable * Audio mixer: XLR/ RCA audio & SDI/ HDMI/ USB embedded audio * Tally port for multiple camera system |
|
|
|
|
|
|
|
|
|
Product Description
Multiview Monitoring
Multiview output make it easy to monitor 6 channels sources as well as PVW and PGM simultaneously on one display. Besides, a real time clock and menu list are located in the lower right corner of the multiview.
Multi-format & Scaler
6 different SD and HD format video sources can be detected and displayed at the same time. And the PGM output can be up/down scaled including 1080i and 1080p.
PiP/PoP
To insert a second picture into/outside the main picture. Simply adjust its size and postion, then push program.
Chroma/Luma Key
Support real-time background matting, user can use Chroma key to cutout PVW green or blue background. And use the Luma Key to cutout black background.
Transition Effects
Transtion between PVW and PGM with WIPE / MIX / FADE effect through T-Bar & AUTO. And there are 3 transition rates for AUTO transition.
Audio Mixer
A built-in audio mixer can mix 2 external stereo XLR & RCA audio and 6 channels of embedded audio. It's easy to control 3 stereo channels individually through the faders and corresponding buttons.
SD Card Recarding
No external recorder needed, because the switcher has a built-in SD card slot for PGM recording. It's simple to have an immediate high quality (up to FHD 1080P 60hz) recording of the event from this switcher.
USB Media Players
The channel 5 and 6 support different signals such as USB media player, USB media player supports video and images.
PTZ Camera Control
The switcher also has a PTZ control feature. Two cameras' pan. tilt, zoom function can be controlled by a joystick and buttons through RS422 / RS485 port. Setting the cameras' address and select VISCA & PELCO D/P protocols from menu.
Widespread Application
The all-in-one 6 channel video switcher can be widely used in various field events, such as live sports, virtual studio, Education, internet, concert, and so on
Techniacl Parameter
About AVMATRIX
After-Sales Service
About AVMATRIX
AVMATRIX is specialized in processing high definition video signals for years. we have developed and produced a series of pro video devices, including signal converter, multi-viewer, optical fiber converter, signal distribution amplifier, signal generator and matrix switcher, etc.
