Quick Details
-
Item:
-
forklift safety devices
-
Type:
-
proximity warning system
-
Application:
-
forklift truck, excavator, crane, mining machine, etc.
-
Color:
-
White
-
MOQ:
-
1 set
-
Keyword:
-
forklift alarm system
-
Brand:
-
CareDrive
-
Dimension / Weight:
-
120 x 120 x 61(mm) / 270g
-
Working Temperature:
-
0 ° to 60° Centigrade
-
Shell Enclosure:
-
ABS, Water proof, with metal base
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CareDrive
-
Model Number:
-
UA350
-
Item:
-
forklift safety devices
-
Type:
-
proximity warning system
-
Application:
-
forklift truck, excavator, crane, mining machine, etc.
-
Color:
-
White
-
MOQ:
-
1 set
-
Keyword:
-
forklift alarm system
-
Brand:
-
CareDrive
-
Dimension / Weight:
-
120 x 120 x 61(mm) / 270g
-
Working Temperature:
-
0 ° to 60° Centigrade
-
Shell Enclosure:
-
ABS, Water proof, with metal base

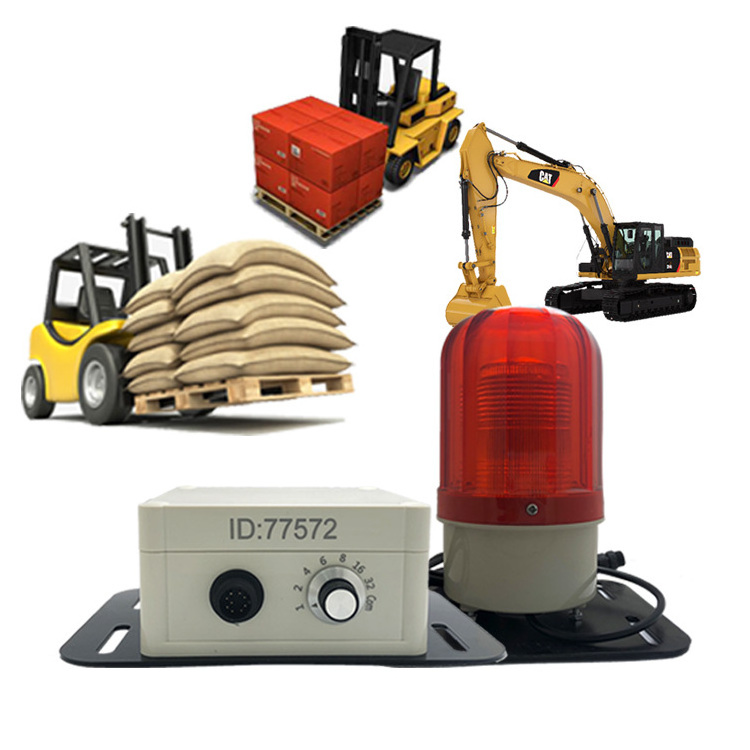

Proximity alarm avoidance warning system for Forklift and personnel usage vehicle
CareDrive Proximity Warning System is designed to be useful and convenient for field application:
- High ranging precision, up to 10cm;
- Fast response to time, Less than 400ms;
- Ultra Wide Power Supply Range, from 12VDC~48VDC;
- Modular anti-stay Design, easy for installation;
- Adjustable exclusion zone radius, from 0.5m to 32m;
- Two configuration Methods, flexible for different application.
- 360° detection around the vehicle, no blind zone left
Technical Data
|
Host |
|
|
Rated Voltage |
12V – 48V DC |
|
Dimension / Weight |
120 x 120 x 61(mm) / 270g |
|
Working Temperature |
0 ° to 6 0° Centigrade |
|
Frequency & Range |
UWB(Ultra-Wide Band) 3.5G-6.5Ghz; No License Fees Required |
|
Range: 10-70 feet |
|
|
Tags Limit |
Maxima Tags Detecting: 30 |
|
Antenna |
Built-in |
|
Shell Enclosure |
ABS, Water proof, with metal base |
|
Mounting |
Horizontally mounted to the outside top of the forklift using cable tie provided. |
|
Power Supply |
Embedded 500mAh Lithium battery |
|
Dimension / Weight |
40×40×20(mm) / 38g |
|
Work Temperature |
0° to 5 0° centigrade |
|
Frequency & Range |
UWB(Ultra-Wide Band) 3.5G-6.5Ghz; No License Fees Required |
|
Range: 10-70 feet |
|
|
Antenna |
Built-in |
|
Battery Charge |
Fully charge the battery before using it (takes around six hours). The Tag LED will be off when it is fully charged. Re-charge the battery every TWO weeks if the tag usage is eight hours per day. The Tag LED will flash when the battery is low, indicating for re- charge. |
|
Dormant Status |
If a Tag doesn’t move for over 10 seconds (even it is within the detected range), this Tag will enter into Dormant Status and the alarming between the host and this Tag will pause. The Tag will restart to work automatically when it starts moving again. |
|
Enclosure |
ABS |
|
Mounting |
USB interface face down, mounted on the helmet by Velcro. |
