Quick Details
-
Model Number:
-
PT-201
-
Output signals:
-
4~20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C
-
Accuracy:
-
0.2%F.S, 0.5%F.S
-
Pressure range:
-
0-60bar
-
Protection class:
-
IP65
-
Ex-proof:
-
ExiaII CT4/CT6, ExidIICT6
-
Housing material:
-
304SST
-
Power Supply:
-
24VDC/12VDC/5VDC/3.3V
-
Electrical connection:
-
Packard, M12, DIN43650, Cable
-
Keywords:
-
pressure transmitter/Pressure sensor
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
shaanxi, China
-
Brand Name:
-
Atech
-
Model Number:
-
PT-201
-
Output signals:
-
4~20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C
-
Accuracy:
-
0.2%F.S, 0.5%F.S
-
Pressure range:
-
0-60bar
-
Protection class:
-
IP65
-
Ex-proof:
-
ExiaII CT4/CT6, ExidIICT6
-
Housing material:
-
304SST
-
Power Supply:
-
24VDC/12VDC/5VDC/3.3V
-
Electrical connection:
-
Packard, M12, DIN43650, Cable
-
Keywords:
-
pressure transmitter/Pressure sensor

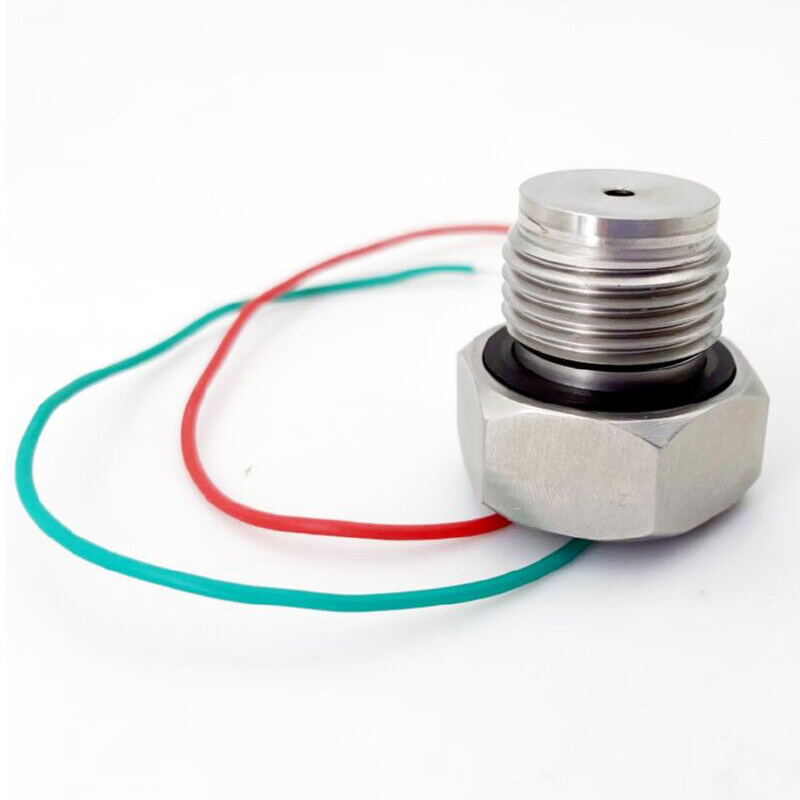

PT201 Silicon Economical Pressure Transmitter Atech Silicon Pressure sensor
Related products PT-208 >>>> Contact Us
|
PT208 pressure ranges:0~5...400bar overload pressure:150%FS Broken Pressure:250%FS output signal:1%FS (standard) 2%FS 0.5%FS accuracy:1%FS (standard) 2%FS 0.5%FS |
|
PT201 series of pressure transmitter is a standard and most popular transmitter applied in air and liquid pressure measuing are cost effective products featuring mass production and low cost.
The products are made of stainless steel. the pressure sensing elements chips are selected from well-known international brands. Special circuits are adopted to zero and full range conveniently. The products are approved with CE, intrinsically safe, and explosion proof certificates. Customized structures and output formats can be designed according to special application requirements .
| pressure medium | gas liquid compatible stainless steel |
| pressure ranges | 0~5...400bar |
| overload pressure | 150%FS |
| Broken Pressure | 250%FS |
| output signal | 4~20mA, 0.5~4.5V,0-10V,0-2V,4.5-5.5v |
| accuracy | 1%FS (standard) 2%FS 0.5%FS |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), >100KΩ (voltage output) |
| long term stability | 0.5%FS/year |
| supply voltage | 10~30V |
| compensated temperature range | -10~80°c |
| operating temperature range | -40~+120°c |
| storage temperature range | -40~+140°c |
| insulation resistance | >100MΩ@ 50VDC |
| response time | 10ms |
| EMC | EMI:EN50081-1/-2, EMS:EN50082-2 |
| process connection | G1/4 or others |
| electrical connection | DIN 43650 or others |
| material of wetted part | 1Cr18Ni9Ti |
| material of pressure membrane | ceramic |
| material of housing | 1Cr18Ni9Ti |
| weight | 88g |
Applications
-Automobile, Compressor and Refrigeration Industry-Engineering machinery
-Pressure control and monitor
-Water treatment system
-Hydraulic and Pneumatics
-HAVC and BAS Control
-Pump, fitness equipment,household appliances
-Factory Automation
-Fluid Control and Instrumentation Systems
