Quick Details
-
Brand Name:
-
Liyond
-
Model Number:
-
RCSK-1-44
-
Max. Current:
-
DC220V/5A, AC380V/8A
-
Operating Temperature:
-
≤120℃
-
Protection Level:
-
IP40
-

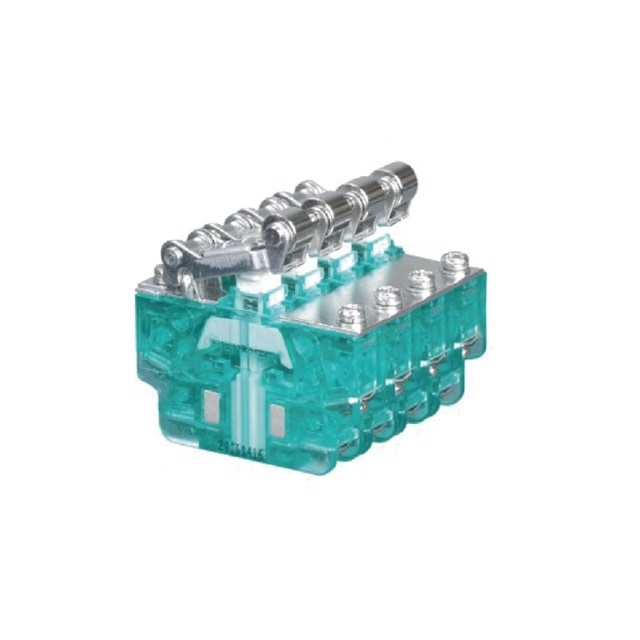

Product name:
-
magnetic switch
-
Material:
-
Plastic
-
Rated current:
-
5A
-
Rated voltage:
-
DC250V
-
Withstand voltage:
-
AC1500V
-
Insualtion resistance:
-
≥100MΩ
-
Mechanical life:
-
1000000 times
-
Terminal resistance:
-
1.2N
-
Certification:
-
ccc
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
AC380V/DC220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Liyond
-
Model Number:
-
RCSK-1-44
-
Max. Current:
-
DC220V/5A, AC380V/8A
-
Operating Temperature:
-
≤120℃
-
Protection Level:
-
IP40
-
Product name:
-
magnetic switch
-
Material:
-
Plastic
-
Rated current:
-
5A
-
Rated voltage:
-
DC250V
-
Withstand voltage:
-
AC1500V
-
Insualtion resistance:
-
≥100MΩ
-
Mechanical life:
-
1000000 times
-
Terminal resistance:
-
1.2N
-
Certification:
-
ccc
Product Description
Characteristic
The inner of switch has a one block instant move structure, it is valid, blowout few, flexible operating, slight, the contacts are made of silver-base Alloy, and itself is made of high quality project plastic, which is a wide range of contacts, easy to radiate. The material of shell is made of PC. It has a high mechanical strength, good in heat-resistant, cold-resistant, anti-aging and good in electrical features.
PS: Products with special requirements, specifications and dimensions that need to be improved can be designed and manufactured according to user requirements.
Parameters
|
Rated voltage
|
DC 250V
|
|
Rated current
|
5A
|
|
Heat distortion temperature
|
≤120℃
|
|
Insulation resistance
|
≥100MΩ
|
|
Withstand voltage
|
AC 1500V
|
|
Initial contact resistance
|
≤50mV
|
|
OF
|
≥600g
|
|
RF
|
≥200g
|
|
PT
|
3mm±1mm
|
|
Mechanical life
|
1000000 times
|
|
Electrical life
|
50000 times
|
|
Terminal resistance
|
1.2N
|
Drawing
