Quick Details
-
Brand Name:
-
Hongjin
-
Product name:
-
Drying box precision oven
-
Usage:
-
Universal Testing Equipment
-
Size:
-
Custom Size
-
Power supply:
-
220V/380V
-
Keyword:
-
Drying box precision oven
-
Port:
-
Shen Zhen
-
Certificate:
-
CE ISO FCC
-
Weight:
-
80kg
-
Color:
-
Customizied
Quick Details
-
Warranty:
-
12 MONTHS, 12 Months
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hongjin
-
Product name:
-
Drying box precision oven
-
Usage:
-
Universal Testing Equipment
-
Size:
-
Custom Size
-
Power supply:
-
220V/380V
-
Keyword:
-
Drying box precision oven
-
Port:
-
Shen Zhen
-
Certificate:
-
CE ISO FCC
-
Weight:
-
80kg
-
Color:
-
Customizied
specification
product description：

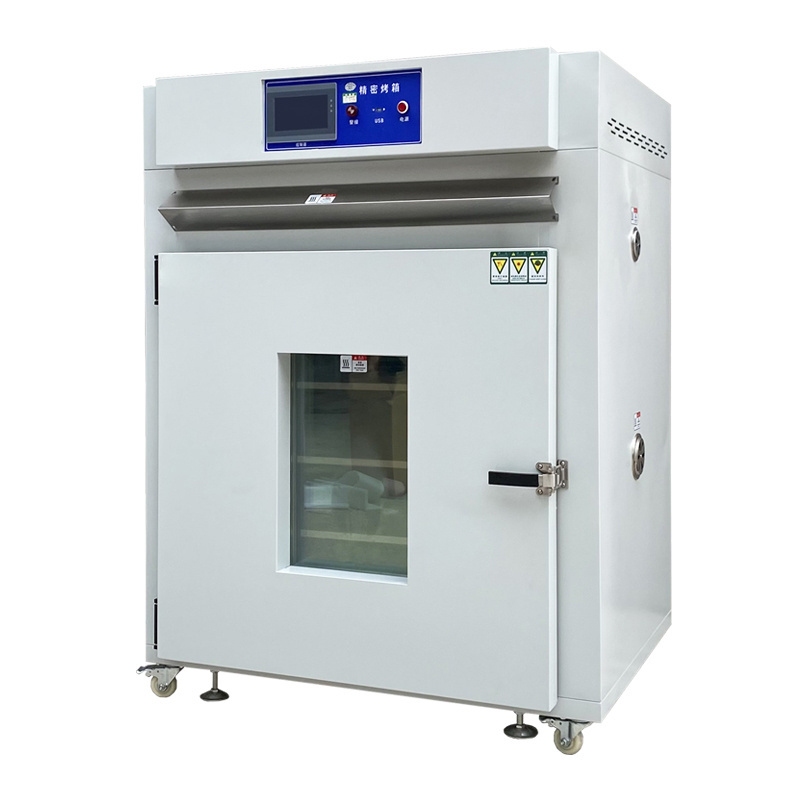

Drying box precision oven
Precision oven is suitable for baking chemical gas and food processing industry to bake goods, substrate stress removal, ink curing, paint film drying. Widely used in electronics, electrical, communications, electroplating, plastics, hardware chemical, food, printing, PC board, powder, including immersion, spraying, glass, ceramics, wood building materials and other items of precision baking, drying, tempering, preheating, shaping, processing.
Main indicators:
Use touch control system, data recording function, shell spray or stainless steel, stainless steel liner.
Temperature control system:
1, temperature control instrument for PID digital display instrument (Taiwan Taisong instrument EM705), single point temperature control, automatic calculation,PV/SV display at the same time, key setting;
2, timer setting: 1-9999 (optional setting hour, minute, second) temperature to time, time to cut off the heating current (alarm device);
3. Temperature sensing line (k) type;
4, signal output is 3-32V;
5, heating control: solid-state relay SSR no contact;
6, the heating element is: high temperature resistance heating tube;
7, temperature range: RT+20~200° C;
8, heating rate: 100℃ for about 15 minutes
9, control accuracy: ±1.0℃;
10, display accuracy: 0.1℃;
11, temperature deviation distribution uniformity: ±2.5℃ (no-load test)
Safety protection system:
overtemperature protection system: when the temperature is out of control, over the set temperature of the overtemperature protector, automatically stop heating and power supply, so as to protect the safety of your products and machines; circuit protection: grounding protection, fast insurance, circuit breaker, etc.
Product Paramenters
|
Model
|
Dimension
|
Temperature
|
|
HJ-64
|
D400*W400*H400mm
|
Type c: RT+10-350 degrees, Type D: RT+10-450 degrees
|
|
HJ-150
|
D500*W500*H600mm
|
Type A: RT+10-200 degrees, Type B: RT+10-250 degrees
Type C: RT+10-350 degrees, Type D: RT+10-450 degrees |
|
HJ-240
|
D500*W600*H800mm
|
|
|
HJ-270
|
D500*W600*H900mm
|
|
|
HJ-480
|
D600*W800*H1000mm
|
|
|
HJ-672
|
D700*W800*H1200mm
|
|
