Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
AJK
-
Model Number:
-
AJK-B2709
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
10W
-
Outlet Size:
-
6MM
-
motor:
-
carbon brush/brushless
-
Usage:
-
Water
-
Type:
-
Micro Water Pump Made In ChinaC
-
Feature:
-
High Efficiency,Non-corrosive,Energy Saving
-
Flow Rate:
-
>500 ml/min
Quick Details
-
Application:
-
Automotive Industry, Developing World Water Solutions, Drinking water treatment, Food and Beverage Industry, Irrigation and Agriculture, Machining, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
DC12V 24V
-
Warranty:
-
1 years
-
Brand Name:
-
AJK
-
Model Number:
-
AJK-B2709
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
10W
-
Outlet Size:
-
6MM
-
motor:
-
carbon brush/brushless
-
Usage:
-
Water
-
Type:
-
Micro Water Pump Made In ChinaC
-
Feature:
-
High Efficiency,Non-corrosive,Energy Saving
-
Flow Rate:
-
>500 ml/min
Product show
Product description:

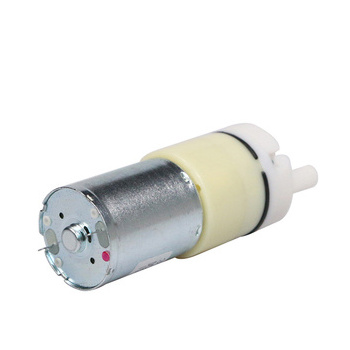

AJK small diaphragm water pump with innovative design, ideal for beverage makers and dispensers. It can be used to pump hot water as well.
Features:
AJK innovative engineering design enables the water pumps to perform efficiently in a compact and lightweight size.
AJK small water pump is also suitable for hot water pumping.
Easy assembly, low vibration and noise.
ISO9001, CB, PAHs, REACH, RoHS compliant.
AJK innovative engineering design enables the water pumps to perform efficiently in a compact and lightweight size.
AJK small water pump is also suitable for hot water pumping.
Easy assembly, low vibration and noise.
ISO9001, CB, PAHs, REACH, RoHS compliant.
Typical Applications:
Coffee maker, tea maker, beverage machine,c leaning device and so on.
Coffee maker, tea maker, beverage machine,c leaning device and so on.
|
Model
|
Rated Voltage
|
Rated Current
|
Free Flow
|
Pressure
|
Noise
|
Load
|
|
AJK-
B2709
|
DC 12.0 V
|
< 300 mA
|
> 1.0 LPM
|
-50~60 KPa
|
< 65 dB
|
Air/Vacuum
|
|
|
DC 12.0 V
|
< 700 mA
|
> 0.5 LPM
|
> 200 KPa
|
< 65 dB
|
Water
|
|
|
DC 24.0 V
|
< 450 mA
|
> 0.5 LPM
|
> 200 KPa
|
< 65 dB
|
Water
|
