Quick Details
-
Product Name ::
-

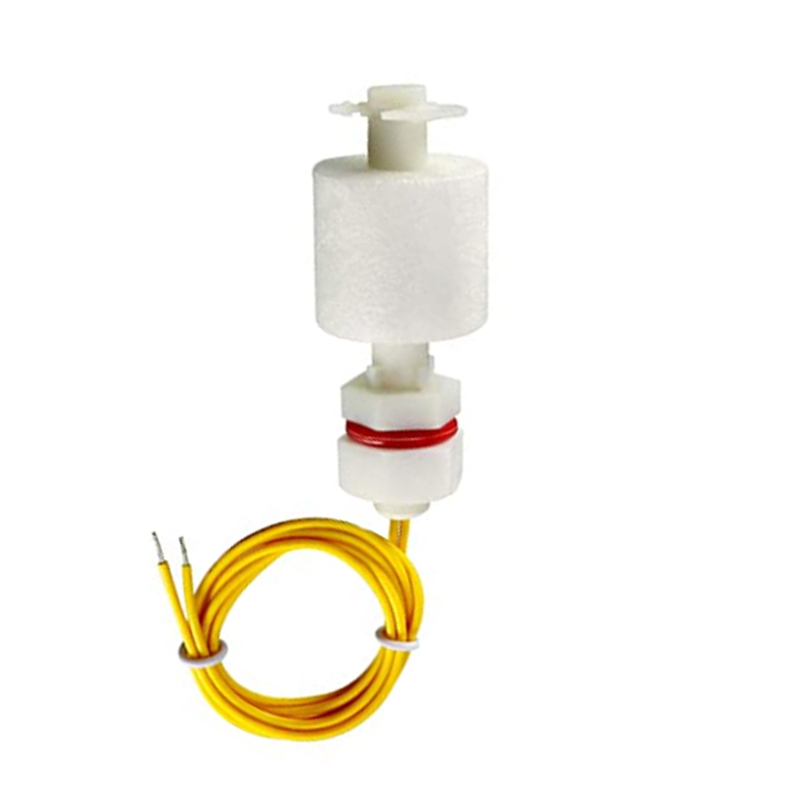

Water Level Sensor
-
Model No. ::
-
ZP4510
-
Max Contact Rating ::
-
10W
-
Max Switching Voltage ::
-
220V DC/AC
-
Max Switching Current ::
-
1.5A
-
Max Carry Current ::
-
3A
-
Temperature Rating ::
-
-10 / +85
-
Float Ball Material ::
-
P.P
-
Cable Length ::
-
36CM / 14.2"
-
Net Weight ::
-
70g
Quick Details
-
Model Number:
-
OKYN401-7
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Product Name ::
-
Water Level Sensor
-
Model No. ::
-
ZP4510
-
Max Contact Rating ::
-
10W
-
Max Switching Voltage ::
-
220V DC/AC
-
Max Switching Current ::
-
1.5A
-
Max Carry Current ::
-
3A
-
Temperature Rating ::
-
-10 / +85
-
Float Ball Material ::
-
P.P
-
Cable Length ::
-
36CM / 14.2"
-
Net Weight ::
-
70g
|
Description:
1.SA float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device. 2.It can be easily converted from normally open to normally close by inverting the float. Note: 1.Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here. 2.to product batch is different, cable color may be different, we will random shipment. Specification: 1.Product Name : Water Level Sensor 2.Model No. : ZP4510 3.Max Contact Rating : 10W 4.Max Switching Voltage : 220V DC/AC 5.Max Switching Current : 1.5A 6.Max Breakdown Voltage : 300V DC/AC 7.Max Carry Current : 3A 8.Max Contact Resistance : 100M ohm 9.Temperature Rating : -10 / +85 10.Float Ball Material : P.P 11.Thread (Approx) : 9.5MM / 0.374" 12.Switch Body Size : 23.3 * 57.7MM / 0.9" * 2.27"(Max D*H) 13.Cable Length : 36CM / 14.2" 14.Color : White 15.Net Weight : 70g Package Including: 5PCS * Water Level Sensor |
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
Product packaging
Our company
Okystar Technology Co., Ltd
is subsidiary of Okystar Technology Group Co., Ltd, which holds 4 subsidiary companies and more than 1500 skilled workers,50 technicians.Okystar Tech Co.,Ltd was built in 2004.We mainly manufacture and export 3D Printer, Board&shield, sensor module, Smart Car Robot, Smart DOF Robot, Servo, DIY toys ,Science toys, Mainboard,etc.
After 15 years development, our company has grown into a large high-tech group corporation integrating industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules.
Payment
FAQ
1 . What is the delivery time?
Normally, 1-5 workdays after payment;
Special requirement order s, delivery time is negotia ble.
2. If the product s can’t work after receiving it,what should I do?
We will replace new items for you at once, and respect your final decision for wrong goods.
3. If the products don’t meet my demand after I received it,can I return it?
Yes,no problem.
You can return back to us, we will refund your full payment.
4.what is the warranty?
1-2 years warranty according to different products.
1-3 months to replace new items for free.
All products are tested strictly for 2-3 times before leaving factory. we have earned very good reputation in quality,Certified by the ISO9001.
