lab ultrasonic herb extract machine with different capacity

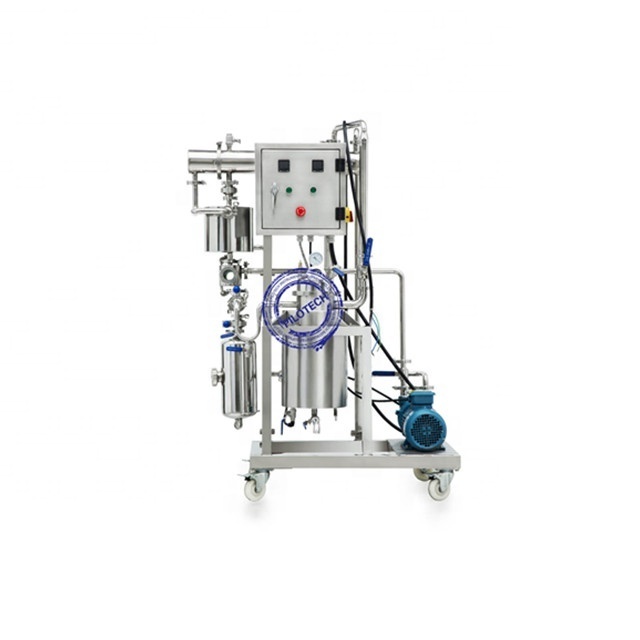

YC-010 Lab multi-functional extracting and concentration tank can be used for extracting and concentration of herbs and natural products (water and organic solvents) and recovery of volatile aromatic oil with a concentration ratio of 1.1-1.38. The unit consists of extracting tank, reflux condenser, reflux cooler, volatile aromatic oil collector, filters, tubular heater, evaporator, recovery condenser, recovery cooler, collecting tank, stainless steel rack and connecting pipe valves, and meters, etc.

Water extraction or alcohol extraction from herbs and natural products, normal pressure hot reflux water extraction or alcohol extracting, normal pressure outer circulation concentration, atmospheric concentration, vacuum concentration, organic solvent recovery (online ultrasonic extraction function is optional).

1) Integrated and compact design allows less installation area(1m2).Works directly with water and power with a minimum inventory of 0.3KG and a maximum inventory of 2KG.

2) Extracting system is equipped with a reflux condenser, reflux cooler, oil-water separator that can recover aromatic oil in materials in an effective manner.

3)The system are equipped with outer circular evaporating concentrator with high concentrating efficiency, concentration ratio 1.1 ~ 1.38.

4) Circular heating of conduction oil (no pressure between lamination) and uniform heating. The heater is far away from the extraction tank which is more secure for organic solvent extraction and concentration.

5) Can be used to water, alcohol and solvent extraction for natural herb extraction. Suitable for extracting and concentration of herbal liquid and tea and fruit juice and recovery of organic solvents in research institutions, universities, hospitals, and food industry.

6) It combines multi-functional extracting tank, vacuum concentration tank and solvent recovery tank as a whole and simplify operations with functions of heat reflux circular extraction.

7) The contact part with the material is of qualified stainless steel of SUS304, meeting with GMP standard.

8) Low temperature concentration ensures the material property stability. Dynamic circular evaporation increases heat transfer efficiency, provides an effective solution to decreased heat transfer efficiency with increased concentration, reduce energy consumption and improves efficiency.

9) The extraction basket to improve deslagging efficiency.

10) Optional on-line ultrasonic extraction function: adopts energy-concentrating ultrasonic generator. The unique physical process and cavitation of ultrasonic wave can break or deform plant cell tissues and enhance the strength of solute particle vibration, acceleration shock and sound pressure. Local extreme high temperature and pressure formed on materials make large-volume Chinese herbal fully exposed to the ultrasound probe, which accelerates uniform precipitation of active ingredients and significantly increases extraction rate compared with traditional techniques. Ultrasonic extraction works under normal temperature and effectively reduces the loss of heat-sensitive components. Selectable frequency range contains 15KHz, 20KHz, 28 KHz, 30 KHz, 35 KHz, 40 KHz, 50 KHz, 60KHZ.
