Quick Details
-
Voltage:
-
380V/UPON
-
Power:
-
Accroding to model
-
Dimension(L*W*H):
-
Accroding to model
-
Weight (KG):
-
5000
-
Marketing Type:
-
Available
-
Name:
-
Dry Machine for Flowers
-
Item:
-
Dried Roselle Machine
-
Heating source:
-
Electricity
-
Advantage:
-
Low Consumption High Efficiency
-
Raw material:
-
304 Sainless Steel
-
Installation:
-
Engineer Guidance Installation
-
MOQ:
-
1 Set
-
Controller:
-
PLC
-
Dryig process:
-
Tobacco Leaves Dryer
Quick Details
-
Type:
-
Drying Oven
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Flysun
-
Voltage:
-
380V/UPON
-
Power:
-
Accroding to model
-
Dimension(L*W*H):
-
Accroding to model
-
Weight (KG):
-
5000
-
Marketing Type:
-
Available
-
Name:
-
Dry Machine for Flowers
-
Item:
-
Dried Roselle Machine
-
Heating source:
-
Electricity
-
Advantage:
-
Low Consumption High Efficiency
-
Raw material:
-
304 Sainless Steel
-
Installation:
-
Engineer Guidance Installation
-
MOQ:
-
1 Set
-
Controller:
-
PLC
-
Dryig process:
-
Tobacco Leaves Dryer

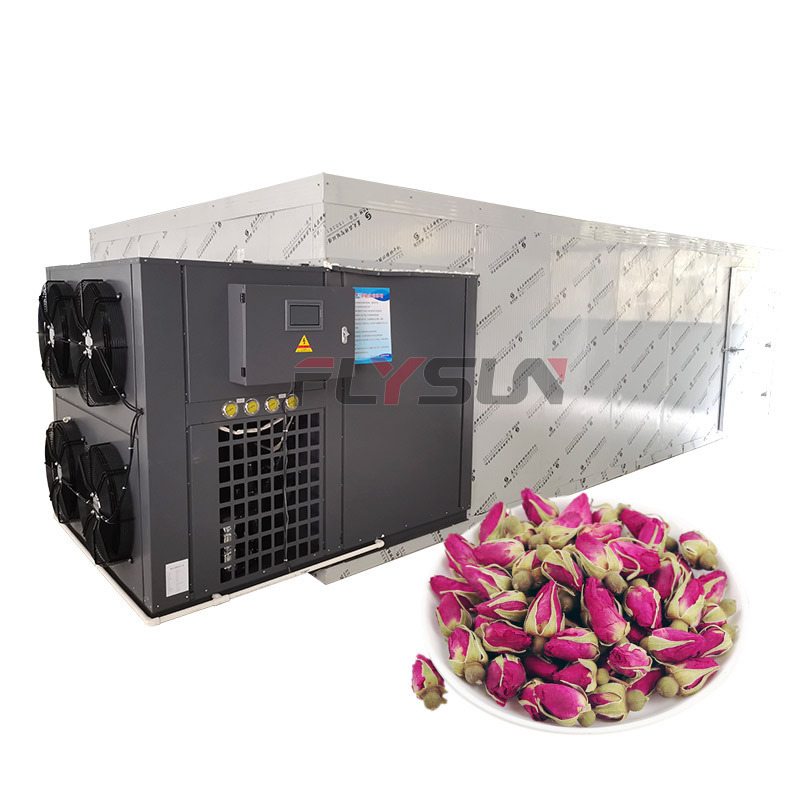

New type dry machine for flowers dried roselle machine tobacco leaves dryer
The drying equipment
has the characteristics of high efficiency, energy saving, safety and environmental protection, intelligent temperature control and so on.
Product Details
The drying equipment
is mainly composed of air energy heat pump, heat preservation drying room, circulating air system, heat recovery system, electronic control system, trolley, material rack, tray and other equipment.
Technical Parameters
The detailed parameter of
drying equipment
|
Model
|
FS-3P
|
FS-8P
|
FS-15P
|
FS-30P
|
|
Capacity
|
200-300kg
|
400-500kg
|
1000-1300 kg/batch
|
2000-2500kg/batch
|
|
Heat pump size
|
1820*900*1072mm
|
2015*1050*1470mm
|
2390*1210*1560mm
|
2390*1210*1560mm
|
|
|
|
|
|
|
|
Motor power
|
3.5 kw
|
7.5kw
|
15.2kw
|
30.4kw
|
|
Auxiliary heating
(optional,depend on the temperature) |
6
|
6
|
18
|
36
|
|
Drying oven size
(mm) |
3300*2000*2200
(75mm Polyurethane insulation board） |
5500*2100*2700
（75mm Polyurethane insulation board） |
8000*3000*2850
（75mm Polyurethane insulation board） |
8000*6000*2850
（75mm Polyurethane insulation board） |
|
Circulation Fan
|
2kw
|
3kw
|
9kw
|
13.5kw
|
|
Trolley size(mm)
|
860*810*1830
|
880*1200*1830
|
880*1200*1830
|
880*1200*1830
|
|
Quantity
(set) |
4
|
6
|
15
|
30
|
|
Fan frame
|
Frame:galvanize
Panel:201SS |
Frame:galvanize
Panel:201SS |
Frame:galvanize
Panel:201SS |
Frame:galvanize
Panel:201SS |
|
Tray size(mm)
|
430*730
|
600*800
|
600*800
|
600*800
|
|
Tray Quantity(pcs)
|
96
(material:PP) |
144
(material:PP) |
360
(material:PP) |
720
(material:PP) |
|
Total power (kw)
|
5.75+6(optional)
|
10.5+6(optional)
|
24.2+18(optional)
|
43.9+36(optional)
|
Customer Cases
Customer Cases of
drying equipment
1.Pakistan customer use
drying equipment
for capacity 3T/day;
2.America customer use
drying equipment
for capacity 3.5T/day;
3.India customer use
drying equipment
for capacity 10T/day;
.......
