Quick Details
-
Place of Origin:
-
Shaanxi, China, Shaanxi, China (Mainland)
-
Brand Name:
-
OEM, SIMO OEM
-
Model Number:
-
Z4-100-1
-
Torque:
-
0.004kg*m2
-
Certification:
-
CCC, CE, GOST, CCC, ce, Other
-
Mounting:
-
B3
-
Color:
-
Blue
-
cooling type:
-
IC06/IC17/IC37
-
Protection class:
-
IP21S
-
Winding:
-
100% cooper wire
-
Rotated speed:
-
According to customers
Quick Details
-
Speed(RPM):
-
1000rmp
-
Continuous Current(A):
-
13.4
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Shaanxi, China, Shaanxi, China (Mainland)
-
Brand Name:
-
OEM, SIMO OEM
-
Model Number:
-
Z4-100-1
-
Torque:
-
0.004kg*m2
-
Certification:
-
CCC, CE, GOST, CCC, ce, Other
-
Mounting:
-
B3
-
Color:
-
Blue
-
cooling type:
-
IC06/IC17/IC37
-
Protection class:
-
IP21S
-
Winding:
-
100% cooper wire
-
Rotated speed:
-
According to customers
|

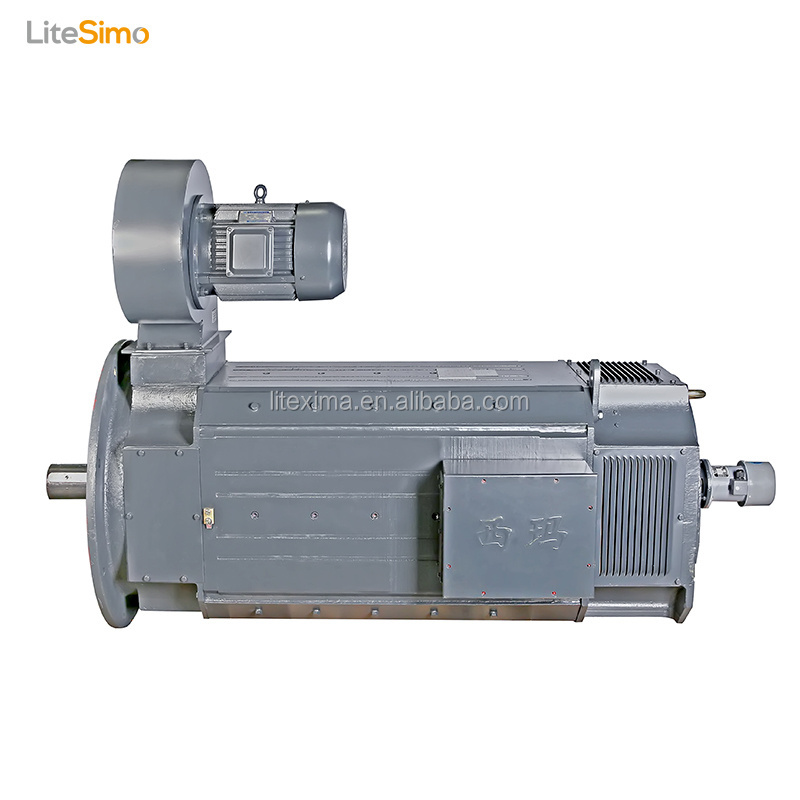

manufacturer supply high pressure 440v dc motor 10hp The DC Motor series Z4, Z4-100-1-4kw
|
||||||||
| Type |
Rated power |
Rated voltage |
Rated speed |
Rated current |
Speed with field weakened |
Exciting power |
Efficiency | Mass |
| KW | V | R/MIN | A | R/MIN | W | % | KG | |
| Z4-100-1 | 4 | 440 | 3000 | 10.7 | 4000 | 315 | 80.1 | 60 |
Drawing: Horizontal Mounting with feet
| Frame NO. | Mounting Dimension(mm) | Overall Dimension(mm) | ||||||||||||||||||||||||
| A | B | C | D | DA | E | EA | F | FA | G | GB | GD | GF | H | K | AB | AC | AA | BA | BB | AD | HA | HD | L | LC | L1 | |
| Z4-100-1 | 160 | 318 | 63 | 24 | 24 | 50 | 50 | 8 | 8 | 20 | 20 | 7 | 7 | 100 | 12 | 197 | 234 | 35 | 60 | 368 | 180 | 10 | 398 | 500 | 544 | 580 |
* In addition, we also provide IMB35 type installation of the DC MOTOR
