Projection Angle:
20° 60° 85°
Measurement range:
20°:0-2000\60°:0-1000\85°:0-160(GU)
Measuring spot
: 20°: 10x10\60°:9x15\85°:5x38
Storage capacity:
50000 test records can be stored at three angles.
Output:
USB communication interface, connect PC terminal glossiness multi-function color analysis software.
Suitable for:
coating, ink, baking paint, coating, wood products, marble, granite, vitrified polishing brick, ceramic brick, plastic, paper and other metal and non-metal material surface mirror glossiness measurement.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RT
-
Model Number:
-
WG68/WG60A/WG60G
-
Product name:
-
Gloss Meter
-
Function:
-
Surface mirror to glossiness measurement
-
Application:
-
Laboratory Factory
-
Language:
-
Chinese/English
Quick Details
-
Warranty:
-
6 Month
-
Power:
-
Electronic
-
Customized support:
-
No
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RT
-
Model Number:
-
WG68/WG60A/WG60G
-
Product name:
-
Gloss Meter
-
Function:
-
Surface mirror to glossiness measurement
-
Application:
-
Laboratory Factory
-
Language:
-
Chinese/English
Product Overview

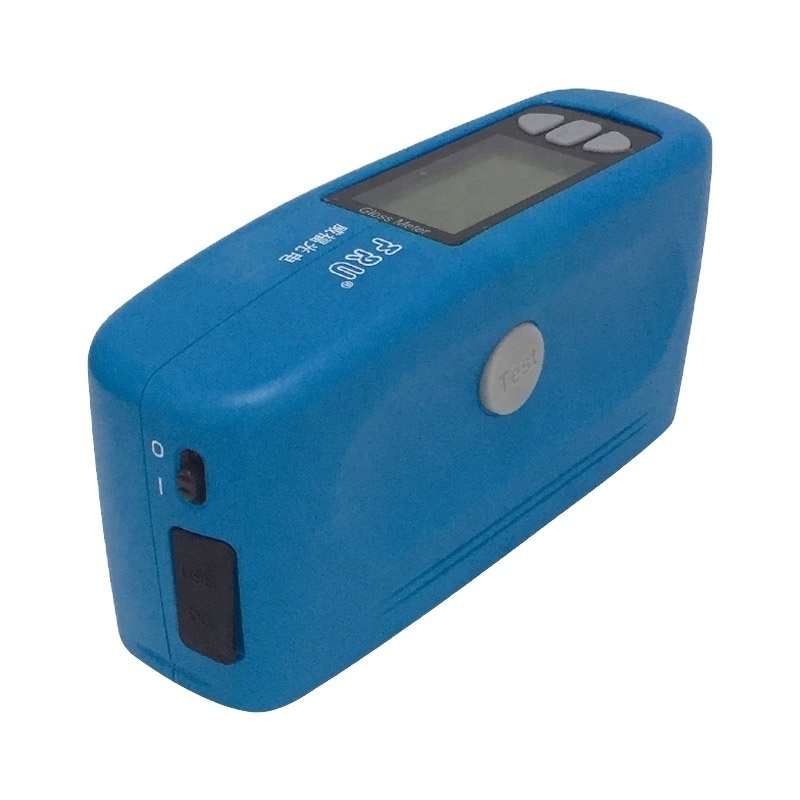

WG68
WG68
gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used coatings, printing ink, paint, paint, wood, marble, granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials to the surface of the mirror gloss measurement, more stable performance, more durable, more comfortable
|
Specification
|
Unit
|
Triangle Gloss Meter
|
|
Measuring Range
|
GU
|
20°:0-2000
60°:0-1000 85°:0-160 |
|
Measuring Spot
|
mm
|
20°: 10x10
60°:9x15 85°:5x18 |
|
Measuring Spot
|
GU
|
0-1000:0.1 1000-2000:1
|
|
Repeatability
|
GU
|
0-100:0.2 >100:0.2%
|
|
Indication Error
|
GU
|
±1.5
|
|
Zero Error
|
GU
|
0.2
|
|
Working Temperature Range
|
℃
|
10℃ - 40℃
|
|
Storage Temperature Range
|
℃
|
-10℃ - 70℃
|
|
Humidity Range
|
|
Relative humidity less than 85%,without condensation
|
|
Power Adapter
|
|
Section 2 5 alkaline batteries/power adapter
|
|
Dimension
|
mm
|
159*49*72
|
|
Weight
|
g
|
500
|
|
International standards
|
|
ISO-2813、ASTM-C584、ASTM-D523、DIN-67530、ASTM-D2457、JND-A60、JND-P60
|
Related product
WG60A
Click on the image for more product details !!!
Origin:
China
Range:
60 ° : 0-1000
Transmission Angle :
60°
Spot measurement:
(ellipse: long axis * short axis) 60°:9*15
Data storage :
5000 groups
Language:
Chinese /English
Output:
It can be connected to a miniature printer to realize real-time output of measured data.
Mainly applicable to paint:
ink, baking paint, paint, wood products, marble, granite, vitrified polishing brick, ceramic brick,Surface mirror gloss measurement of metal and nonmetal materials such as plastics, paper, etc.
WG60G
Click on the image for more product details !!!
Measuring range
:
0-2000
Projection Angle
:60°
Spot measurement
: (ellipse: long axis * short axis) 8mm X 4mm
Data storage
:500 groups
Output:
It can be connected to a miniature printer to realize real-time output of measured data.
Language:
Chinese /English
Suitable for:
coating, ink, baking paint, coating, wood products, marble, granite, vitrified polishing brick, ceramic brick and porcelain, plastic, paper, metal materials and other related products measurement.
