Quick Details
-
Nominal Diameter ::
-
254(10'')mm
-
Nominal Impedance ::
-
8 Ohm
-
RMS Power Input ::
-
300 w
-
MAX Power Input ::
-
600 w
-
Sensitivity (1W/1M) ::
-
94.8dB
-
Frequency Range ::
-
64-4.6kHz
-
Voice Coil Diameter ::
-
65(2.6'')mm
-
Voice Coil Winding Depth ::
-
16mm
-
Magnet ::
-
Ferrite Ring
-

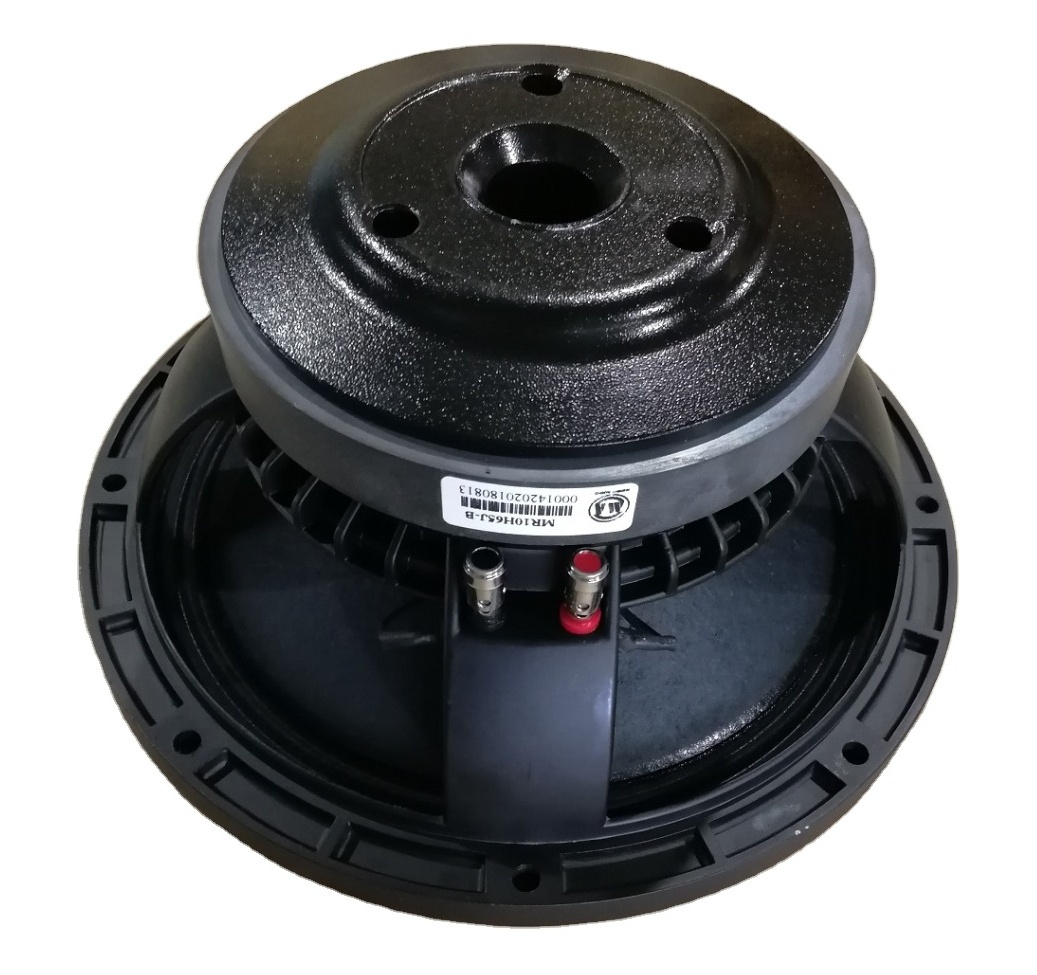

Product Name:
-
big woofer speaker 10"
-
Frequency Range (Hz):
-
64-4.6kHz
-
Power:
-
300w
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Merry Audio
-
Model Number:
-
MR10H65J-B
-
Nominal Diameter ::
-
254(10'')mm
-
Nominal Impedance ::
-
8 Ohm
-
RMS Power Input ::
-
300 w
-
MAX Power Input ::
-
600 w
-
Sensitivity (1W/1M) ::
-
94.8dB
-
Frequency Range ::
-
64-4.6kHz
-
Voice Coil Diameter ::
-
65(2.6'')mm
-
Voice Coil Winding Depth ::
-
16mm
-
Magnet ::
-
Ferrite Ring
-
Product Name:
-
big woofer speaker 10"
-
Frequency Range (Hz):
-
64-4.6kHz
-
Power:
-
300w
Products Description
|
Thiele & Small Parameters
|
|
|
|
|||
|
Resonance Frequency :
|
Fs
|
Hz
|
64
|
|||
|
DC Resistance :
|
Re
|
Ohm
|
5.7
|
|||
|
Mechanical Q Factor :
|
Qms
|
|
9.10
|
|||
|
Electrical Q Factor :
|
Qes
|
|
0.40
|
|||
|
Total Quality Factor :
|
Qts
|
|
0.40
|
|||
|
Equivalent Volume :
|
Vas
|
L
|
30.2
|
|||
|
Effective Moving Mass :
|
Mms
|
g
|
34.4
|
|||
|
Mechanical Compliance :
|
Cms
|
μm/N
|
177.4
|
|||
|
BL Factor :
|
BL
|
T.m
|
14
|
|||
|
Effective Piston Area :
|
Sd
|
cm²
|
346.4
|
|||
|
η(Eta Zero) :
|
η0
|
|
1.90%
|
|||
|
Max.Linear Excursion :
|
Xmax
|
mm
|
±4
|
|||
|
Mounting Information
|
|
|
|
|||
|
Overall Diameter :
|
|
mm
|
262
|
|||
|
Mounting Holes Diameter :
|
|
mm
|
248
|
|||
|
Bolt Circle Diameter :
|
|
mm
|
8xΦ7
|
|||
|
Baffle Cut-Out Diameter :
|
|
mm
|
230
|
|||
|
Overall Depth :
|
|
mm
|
123
|
|||
|
Net Weight :
|
|
kg
|
3.52
|
|||
|
Shipping Weight :
|
|
kg
|
3.82
|
|||
|
Shipping Box(Single) :
|
|
cm
|
26.5*26.5*14
|
|||
|
Shipping Weight (4 Unit) :
|
|
kg
|
16.3
|
|||
|
Shipping Box (4 Unit) :
|
|
cm
|
55*28*33
|
|||
