Quick Details
-
Brand Name:
-
Times Power
-
Model Number:
-
TP-C003
-
Work Time (h):
-
24h
-
Max PV Voltage:
-
18V
-
Certificate:
-
CE
-
Warranty:
-
1 year
-
Product name:
-

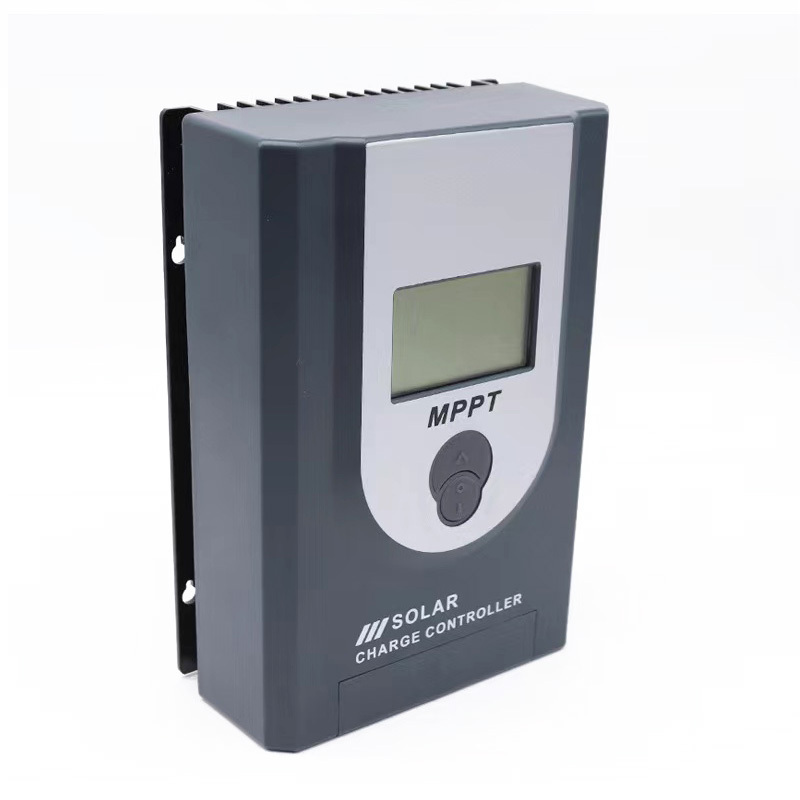

MPPT Solar Charger Controller
-
Rated charging current:
-
10A 20A 30A 40A 50A 60A
-
Peak open circuit voltage:
-
100V
-
System voltage:
-
12V24V automatic identification
-
Battery voltage range:
-
8-32V
-
High voltage protection:
-
lead-acid battery 16V
-
Light control point voltage:
-
5V/10V
-
Temperature compensation coefficient:
-
-4mV/C/2V(25℃)
-
Protection class:
-
IP30
-
Ground Type:
-
Positive Ground
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Collector Controller, Solar System Controller, special for RV
-
Place of Origin:
-
Gansu, China
-
Brand Name:
-
Times Power
-
Model Number:
-
TP-C003
-
Work Time (h):
-
24h
-
Max PV Voltage:
-
18V
-
Certificate:
-
CE
-
Warranty:
-
1 year
-
Product name:
-
MPPT Solar Charger Controller
-
Rated charging current:
-
10A 20A 30A 40A 50A 60A
-
Peak open circuit voltage:
-
100V
-
System voltage:
-
12V24V automatic identification
-
Battery voltage range:
-
8-32V
-
High voltage protection:
-
lead-acid battery 16V
-
Light control point voltage:
-
5V/10V
-
Temperature compensation coefficient:
-
-4mV/C/2V(25℃)
-
Protection class:
-
IP30
-
Ground Type:
-
Positive Ground
Product Description
|
Description of technical parameters
|
|
|
|
|
||||
|
Rated charging current
|
10A
|
20A
|
30A
|
40A
|
||||
|
Input
|
|
|
|
|
||||
|
Solar panels Peak open circuit voltage
|
100V
|
|
|
|
||||
|
System voltage
|
12V24V automatic identification
|
|
|
|
||||
|
Battery voltage range
|
8-32V
|
|
|
|
||||
|
PV panel peak power
|
130W(12V) 240W(24V)
|
260W(12V)
520W(24V)
|
390W(12V)780W(24V)
|
520W(12V)1040W(24V)
|
||||
|
Output
|
|
|
|
|
||||
|
Battery type
|
User-defined, sealed lead-acid, flooded battery, gel battery, lithium iron phosphate, ternary lithium
|
|
|
|
||||
|
Equalizing charging voltage
|
Maintenance-free lead-acid battery: 14.6V Colloid: None; Lead Acid Rich Liquid Battery: 14.8V Duration: 2 Hours
|
|
|
|
||||
|
Improve charging voltage
|
Maintenance-free lead-acid battery: 14.4V Colloid: None; Lead Acid Rich Liquid Battery: 14.6V Duration: 2 Hours
|
|
|
|
||||
|
Float voltage
|
Maintenance-free lead-acid battery, gel, lead-acid flooded battery: 13.8V
|
|
|
|
||||
|
Load recovery output voltage
|
Maintenance-free lead-acid battery, gel, lead-acid flooded battery: 12.6V
|
|
|
|
||||
|
Load shutdown voltage
|
Maintenance-free lead-acid battery, gel, lead-acid flooded battery: 10.8V
|
|
|
|
||||
|
Static loss
|
≤50mA
|
|
|
|
||||
|
High voltage protection
|
lead-acid battery 16V
|
|
|
|
||||
|
Light control point voltage
|
5V/10V
|
|
|
|
||||
|
Temperature compensation coefficient
|
-4mV/C/2V(25℃)
|
|
|
|
||||
|
Discharge circuit voltage drop
|
≤2V
|
|
|
|
||||
|
Display temperature range
|
-20°C to +70°C
|
|
|
|
||||
|
Working ambient temperature
|
-20°C to +55°C
|
|
|
|
||||
|
Storage ambient temperature
|
-30°C to +80°C
|
|
|
|
||||
|
Working environment humidity
|
≤90% non-condensing
|
|
|
|
||||
|
Protection class
|
IP30
|
|
|
|
||||
|
Ground Type
|
Positive Ground
|
|
|
|
||||
|
Voltage parameters are all 12V (ambient temperature 25 degrees, 24V system parameters x2
|
|
|
|
|
||||
