European Touch screen light switch 3 gang for smart home
Features:
BRT-114 is a glass touch screen timer switch which is controlled by a micro controller unit and has timing
capability for three separate loads. It is designed for easy installation and retrofit, directly fit into standard wall
box with no need for the neutral.
l High quality glass as faceplate, luxury and elegant;
l Control over up to 3 loads. Each load can have a delay-off time of 30 seconds or instant on/off;
l Easy to use. A gentle touch will turn on or turn off the load;
l Good for all kind of loads (an additional adaptor is needed for capacitive loads);
l Can be used as night light. All the buttons are always lit by blue backlights, so they are easy to find even in
the dark;
l Costume color and pattern available;
l ABS-V0 flame resistance material; and
l Classical 86 series design and high quality build.
Front View and Back View:

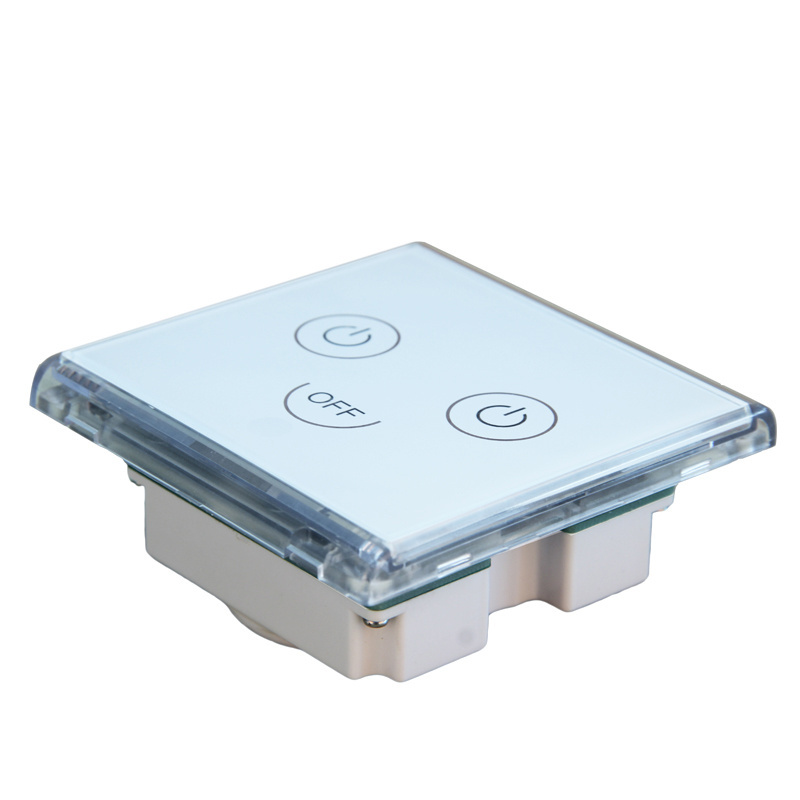

Fig. 1 and 2 show the front view and back view of the BRT-114 glass touch screen timer switches respectively.
Fig. 1 Front View Fig. 2 Back View
There are three on/off buttons and one Off button on the front, and there are wiring terminal blocks on the back.
The buttons are backlit with blue lights.
Specification Parameters:
|
Input Voltage |
180~250V(50Hz/60Hz) |
Operating Temperature |
-20℃~55℃ |
|
Wattage |
500W/Load |
Relative Humidity |
No-condensation 20-90% RH |
|
Mounting Hole
|
60mm |
Matching
|
75mm x 75mm x 50mm |
|
Dimension |
86mm x 86mm x 38mm |
Weight |
150g |
Wiring Diagram and Installation Guide:
BRT-114 glass touch screen timer switch only requires hot wire for installation:
Hot wire (ACL): Coming from the power line with 220V;
Load wires: Going to the load.
Fig. 3 BRT-114 Wiring Diagram
Warning: Please make sure power is turned off before starting installation!
Fig. 3 shows wiring diagram and Fig. 4 shows step-by-step installation instructions. There are three easy steps:
Step one: Use a screwdriver to pry off the front plate in position A;
Step two: Wiring according to the diagram and the labelled ports of the switch; and
Step three: Install the switch to the wall box using screws and put back the front plate.
Fig. 4 BRT-114 Installation Guide
BRT-114 Operation Guide:
l Switch on/off the load: After BRT-114 is powered on, touching each of the 3 on/off buttons will turn on or
turn off the loads respectively, when the delay-off function is not setup. Touching the Off button will turn
off all the loads in the same time.
When a load is turned on, the corresponding button will become brighter in blue.
Fig. 5 Dip Switches for Activating Delay-off Time
l Set up delay-off function: Use a screwdriver to pry off the front plate to access the dip switches as shown in
Fig.5. Switching the first 3 dip switches to on will set up each on/off button for delay-off operation respectively.
The delay-off time is set at 30 seconds at factory. Please talk to our sales representative if other customized
settings are required.
l Activate delay-off function: Once the delay-off function is set up, touching the on/off button once will turn on
the load, and touching the on/off button the second time will trigger delay-off for the load. The blue LED indicator
will blink until the load is automatically turned off after 30 seconds.
During the delay-off time countdown, touching the On/Off button will turn off the load immediately.
Applications:
BRT-114 glass touch screen timer switch can be used for automatically turning on and/or turning off various loads
such as fans, lights, appliances, or other kinds of electrical equipment. They are perfect for saving energy and
bringing convenience and safety to our daily life and work.
They have wide applications at various locations such as homes, hotels, schools, laboratories, hospitals, offices, etc.
