Quick Details
-
Type:
-
Lockmsith Tool
-
MOQ:
-
1pcs
-
Key words:
-
Key Cutting Machine Duplicating
-
Function:
-
Key Cuting
-
Color:
-
Red +silver
-
Feature:
-
Durable
-
Weight:
-
25.8KG
-
Package:
-
Carton
-
Warranty:
-
1 Year
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Che Suo Hui
-
Model Number:
-
CSH-006
-
Type:
-
Lockmsith Tool
-
MOQ:
-
1pcs
-
Key words:
-
Key Cutting Machine Duplicating
-
Function:
-
Key Cuting
-
Color:
-
Red +silver
-
Feature:
-
Durable
-
Weight:
-
25.8KG
-
Package:
-
Carton
-
Warranty:
-
1 Year
Overview
Essential details
Place of Origin: Hunan, China Brand Name:Che Suo Hui
Model Number: CSH-006 Voltage:220V/50HZ, 110V/60HZ
Power: 250W Temperature Range:0-50°
Dimension: 36*33*26cm Net Weight:25.8kg
Spindle Speed: 1400Rpm Usage:Manual/Residential/Commercial Keys
Humidity Range: 10-90% Moving distance in X-direction:55mm
Power: 250W Temperature Range:0-50°
Dimension: 36*33*26cm Net Weight:25.8kg
Spindle Speed: 1400Rpm Usage:Manual/Residential/Commercial Keys
Humidity Range: 10-90% Moving distance in X-direction:55mm
Product Description

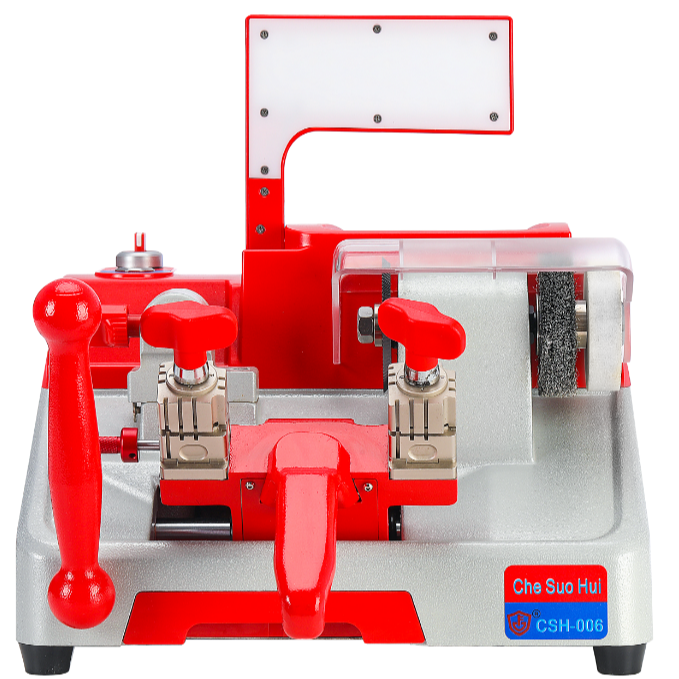

CSH 006 horizontal key cutting machine is a flat milling manual machine, it can cut almost all standard keys with the four-way jaw.
The fixture spacing is 90mm. No need remove the handle when clamp an extended car key with a grip.
Feature of Che Suo Hui 006 horizontal key cutting machine
*
Ergonomic design, beautiful, atmospheric
*
Square rotary fixture, practical and convenient
*
Support flat milling keys, change keys' length, width, etc
*
Super wide jig spacing, no need to remove the folding key handle
*
High strength all aluminum structure machine body
*
Differential ruler high precision tool setting
*
Multi-gear switch control, key processing, grinding, deburring can be done in one time
*
Folding turnable LED lights can be adjusted to different angles according to demand
*
High safety operation guarantee, can prevent misoperation
Parts Schematic
Dimemsion for 006 horizontal key cutting machine
Main Components and Function Description
1.How to operate left-right swing handle and pick-up handle, see the arrows in the picture.
Machine Installation and Test
1.How to replace milling cutter
1、Insert a 5mm inner hex-wrench into the hole as shown
in the picture
2、Loosen the nut clockwise with an 18mm open end
wrench as shown in picture, and then replace milling cutter
2、On the right Loosen the screws with 4.0mm inner
hex-wrench
3.How to correct the misoperation of keys locating
block
1、As shown in the picture, when the key locating block is up, the whole fixture cannot be turned upward, so it is necessary to rotate the key locating block to the dotted line.
2、Hold the rotary reset block (as arrow points in the picture),
then the whole
fixture can be flipped upward.
4. How to adjust the LED light angle
1、LED light can be located at any angle during the
range of dotted line
2、Presse LED button, the LED light turns on
Motor Control Operation
1、Place 2pcs same key blanks in the fixture respectively, set
the position and tighten.
2、Put the key close to the milling cutter, turn the grinding
wheel, adjust the cutter shaft back and forth until the mill-
ing cutter scratches the key slightly, that is, level the mill-
ing cutter and set the cutter block.
Specification
|
Rated voltage
|
220V/50HZ，110V/60HZ
|
|
Overall dimension
|
36*33*26CM
|
|
Motor power
|
250W
|
|
Machine weight
|
25.8KG
|
|
Rational speed
|
1400RPM
|
|
Operating temperature
|
0-50°C
|
|
Working humidity
|
10-90%
|
|
Moving distance in X-direction
|
55mm
|
