This product makes the material jump in a directional manner through back and forth reciprocating motion and periodic
shaking.Materials smaller than the screen holes, and the remaining materials are discharge port through jumping motion,completing the screening work efficiently.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Yinxing
-
Voltage:
-
220V-480V
-
Dimension(L*W*H):
-
3550*1870*1845
-
Weight:
-
3900 KG
-
Product name:
-
Square swing sieve
-
Advantage:
-
High precision
-
Material:
-
SU304 or Q235A
-
Keyword:
-
Rotary Vibrating Screen Machine
-
Motor:
-
Vibrating machine
-
Layer(s):
-
1-10 Layers
-
quality:
-
Passed ISO9001:2008
-
Function:
-
Screening\separation\sorting\sieving
-
After-sales Service Provided:
-
Online support
-
Screen size:
-
1.2*3.0
Quick Details
-
Type:
-
Square
-
Marketing Type:
-
new type
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yinxing
-
Voltage:
-
220V-480V
-
Dimension(L*W*H):
-
3550*1870*1845
-
Weight:
-
3900 KG
-
Product name:
-
Square swing sieve
-
Advantage:
-
High precision
-
Material:
-
SU304 or Q235A
-
Keyword:
-
Rotary Vibrating Screen Machine
-
Motor:
-
Vibrating machine
-
Layer(s):
-
1-10 Layers
-
quality:
-
Passed ISO9001:2008
-
Function:
-
Screening\separation\sorting\sieving
-
After-sales Service Provided:
-
Online support
-
Screen size:
-
1.2*3.0
|
Model
|
Screen size
|
Effective screening area
|
Layers
|
Screen inclination
|
Sieve phase stroke
|
Power
|
|
YX-1230
|
1.2m×3.0m
|
3.6㎡
|
1-10
|
5°-10°
|
25mm-60mm
|
4kw
|
|
YX-1236
|
1.2m×3.6m
|
4.3㎡
|
1-10
|
5°-10°
|
25mm-60mm
|
4kw
|
|
YX-1536
|
1.5m×3.6m
|
5.4㎡
|
1-10
|
5°-10°
|
25mm-60mm
|
4-11kw
|
|
YX-2036
|
2.0m×3.6m
|
7.2㎡
|
1-10
|
5°-10°
|
25mm-60mm
|
7.5-11kw
|
|
YX-2040
|
2.0m×4.0m
|
8.0㎡
|
1-10
|
5°-10°
|
25mm-60mm
|
7.5-11kw
|
Products Description

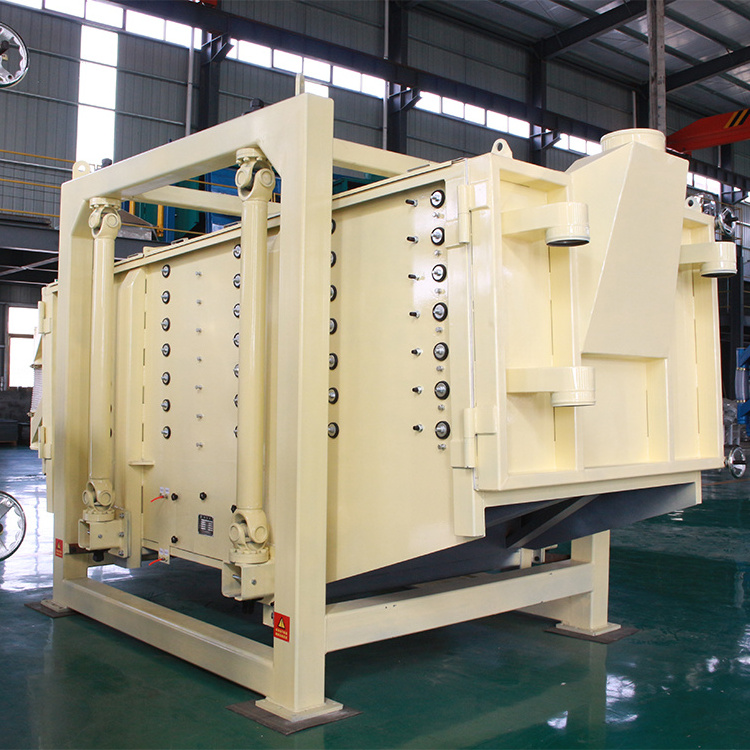

Square swing screen
★Multi-layer classification design, high screening efficiency, double output.
★Fully enclosed structure, dust suppression, small vibration, low noise.
★It is convenient to replace the screen, simple to operate, strong and reliable.
★Using electrostatic spraying process, excellent anti-rust performance.
★Has multiple patent protections and advanced technology.
★Fully enclosed structure, dust suppression, small vibration, low noise.
★It is convenient to replace the screen, simple to operate, strong and reliable.
★Using electrostatic spraying process, excellent anti-rust performance.
★Has multiple patent protections and advanced technology.
