Quick Details
-
Model Number:
-
PD02
-
Warranty:
-
2years, 2years
-
Type:
-
Body Sensor Switch
-
Power:
-
36W/72W
-
Sensing Range:
-
2-3m
-
Product name:
-
Body Sensor Module
-
Model:
-
PD02
-
Input Voltage:
-
DC12V-24V
-
Current:
-
3A
-
Max Load:
-
36W/72W
-
Detection range:
-
120°/2-3m
-
Size:
-
48*10*1.5mm
-
Delay time:
-
30s,10s,60s,180s
-
Application:
-
Cabinet Light
Quick Details
-
Voltage:
-
12V/24V
-
Place of Origin:
-
GUA
-
Brand Name:
-
FICLUX
-
Model Number:
-
PD02
-
Warranty:
-
2years, 2years
-
Type:
-
Body Sensor Switch
-
Power:
-
36W/72W
-
Sensing Range:
-
2-3m
-
Product name:
-
Body Sensor Module
-
Model:
-
PD02
-
Input Voltage:
-
DC12V-24V
-
Current:
-
3A
-
Max Load:
-
36W/72W
-
Detection range:
-
120°/2-3m
-
Size:
-
48*10*1.5mm
-
Delay time:
-
30s,10s,60s,180s
-
Application:
-
Cabinet Light
PD02 built-in touch switch with dimming function
and last state memory function, with a 10 mm spring on a
48x10
mm board.

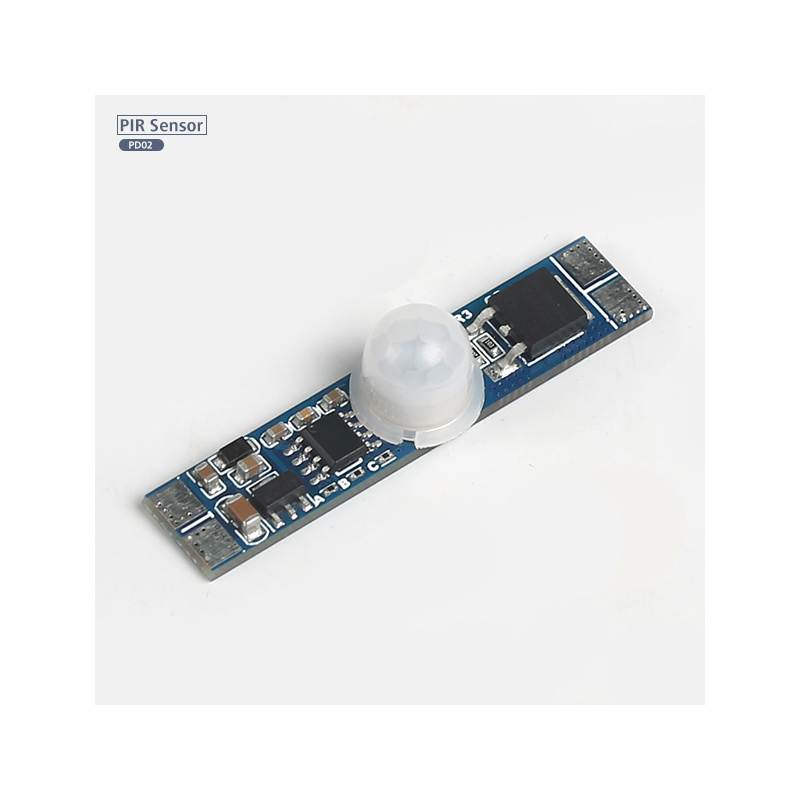

The PD02 body sensor switch has found wide application as a built-in switch in luminaires made on the basis of aluminum profiles with LED strip installed in them.
Scope Kitchen furniture, bedrooms, sliding wardrobes and other types of cabinet furniture.
|
Product Name
|
PIR Sensor Module
|
|
|
|
|||
|
Model No
|
PD02-A1/PD02-B2
|
PD02-A2/PD02-B2
|
PD02-A3/PD02-B3
|
PD02-A4/PD02-B4
|
|||
|
Delay Time
|
30s
|
10s
|
60s
|
180s
|
|||
|
Function
|
Hard on/off /
Fading on/off
|
Hard on/off+Dimming
|
Fading on/off
（Door control）
|
Fading on/off+Dimming
|
|||
|
Input/Output
|
DC 12V/24V
|
|
|
|
|||
|
Power
|
12V36W; 24V72W
|
|
|
|
|||
|
Current
|
3A Max
|
|
|
|
|||
|
Product Size
|
48*10*1.5mm
|
|
|
|
|||
|
Detection Range
|
2-3m
|
|
|
|
|||
|
Sensor Angle
|
< 120°
|
|
|
|
|||
|
Warranty Period
|
2years
|
|
|
|
|||
ATTENTION!
Install, connect, and maintain the switch only when the power is turned off.
ATTENTION!
Do not use acidic fluxes for solderin
g! This
puts the device out of service and is not a warranty case!
