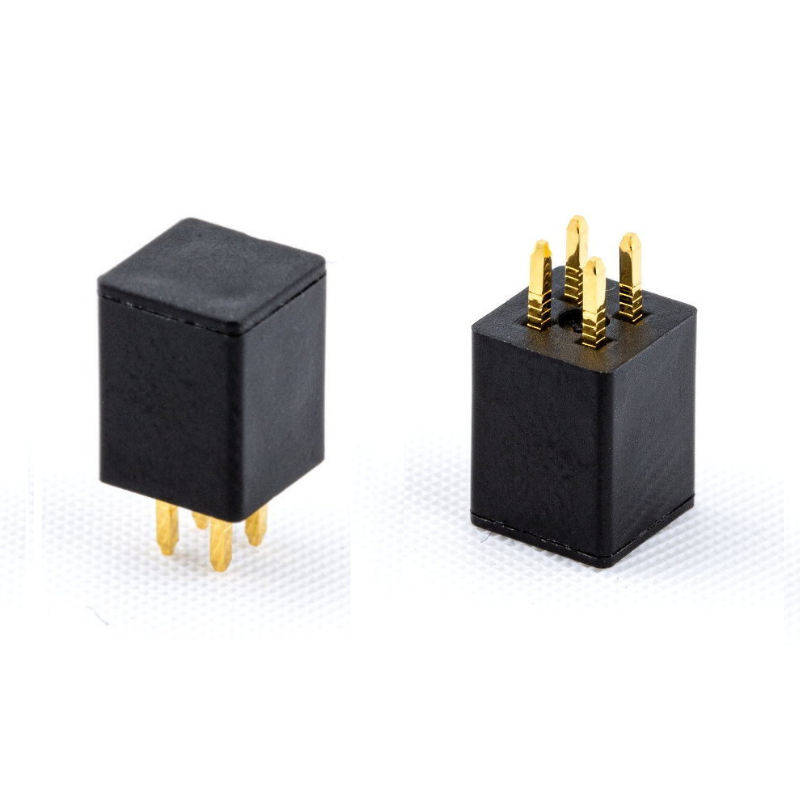

Quick Details
-
Model Number:
-
RBS070310
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
OncQue
-
Theory:
-
Ball Contact
-
Brand:
-
Rolling Ball Sensor Switch
-
Voltage - Supply:
-
5 V
-
Current - Supply:
-
10 mA
-
Operating Temperature:
-
-25°C ~ 85°C
-
Features:
-
An ideal substitute for mercury switch
-
Humidity Range:
-
40°C / 95%RH
-
Size:
-
DIP Normal close
-
Size / Dimension:
-
6.5*6.5*8.5
-
Measuring Range:
-
45° Tilt Detecting within a 360° radius
-
Sensing Range:
-
45° Tilt Detecting within a 360° radius
-
Function:
-
Simple ON and OFF signals, Up-Side Down Detecting
-
Sensing Object:
-
Ball-Contact
-
Application:
-
Automatically shut off for home appliances, Smart Home appliance /Entertainment Device
-
Certificate:
-
RoHS
-
Tilt Angles:
-
45+-15 degree
-
Specification:
-
Horizontal PCB
-
Production Process:
-
DIP
-
Type:
-
Tilt Ball-Contact sensor switch
-
Switch State:
-
Normal close
-
Dimension:
-
6.5 * 6.5 * 8.5mm
-
Quality:
-
MADE IN TAIWAN
Quick Details
-
Usage:
-
Tilt Sensor Switch
-
Mounting Type:
-
DIP, Soldering
-
Description:
-
Rolling Ball Sensor Switch
-
Model Number:
-
RBS070310
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
OncQue
-
Theory:
-
Ball Contact
-
Brand:
-
Rolling Ball Sensor Switch
-
Voltage - Supply:
-
5 V
-
Current - Supply:
-
10 mA
-
Operating Temperature:
-
-25°C ~ 85°C
-
Features:
-
An ideal substitute for mercury switch
-
Humidity Range:
-
40°C / 95%RH
-
Size:
-
DIP Normal close
-
Size / Dimension:
-
6.5*6.5*8.5
-
Measuring Range:
-
45° Tilt Detecting within a 360° radius
-
Sensing Range:
-
45° Tilt Detecting within a 360° radius
-
Function:
-
Simple ON and OFF signals, Up-Side Down Detecting
-
Sensing Object:
-
Ball-Contact
-
Application:
-
Automatically shut off for home appliances, Smart Home appliance /Entertainment Device
-
Certificate:
-
RoHS
-
Tilt Angles:
-
45+-15 degree
-
Specification:
-
Horizontal PCB
-
Production Process:
-
DIP
-
Type:
-
Tilt Ball-Contact sensor switch
-
Switch State:
-
Normal close
-
Dimension:
-
6.5 * 6.5 * 8.5mm
-
Quality:
-
MADE IN TAIWAN
Function
-
45° Tilt Detecting within a 360° radius
- Up-Side Down detecting
Specification
Tilt Angle : 45° ±15°
Type : DIP
Suitable to use for Horizontal PCB
Switch State : Normal Close
Description: Ball-Contact
Feature
-
Housing made of high insulation plastic material, free from electric conduction and rust problem.
- Gold-plated ball and terminals, low possibility of oxidization.
- All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
- Simple ON and OFF signals, easy for design.
- RoHS compliance, an ideal substitute for mercury switch.
- A more economical tilt and rotation detection option than IC design solution.
Current / Voltage Suggested
|
Input Current (mA)
|
Operating Voltage (V)
|
Condition
|
|
1.0
|
5
|
--
|
Electrical Characteristics
|
Contact Rating
|
10 mA, 5VDC
|
|
Contact Resistance
|
10Ω max.
|
|
Insulation Resistance
|
1000 MΩ min., 100 VDC
|
|
Dielectric Strength
|
500 VDC min., 1 minute
|
|
Capacitance
|
5 pF max.
|
|
Conductive Rate
|
90% min.
|
Mechanical Characteristics
|
Operating Temperature
|
-25°C to 85°C
|
|
Storage Temperature
|
-40°C to 85°C
|
|
Humidity
|
40°C / 95% RH
|
|
Mechanical Life
|
2 Hz horizontal
1,000,000 times |
|
Electrical Life
|
100,000 times
|
Note
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.
Dimension
of RBS070310
All made in TAIWAN and EXAMINED before shipment
Packing of RBS070310
All made in TAIWAN and EXAMINED before shipment
|
Package
|
Quantity
|
Total Q'ty
|
Dimension(mm)
|
|
PE Bag
|
500 pcs
|
500 pcs
|
205L*145W
|
|
Inner Box
|
10 PE Bags
|
5,000 pcs
|
348L*191W*85H
|
|
Carton
|
3 Boxes
|
15,000 pcs
|
364L*278W*213H
|
Taiwan
U.S.A.
China
Application of RBS070310
1. Automatically shut off for home appliances
2. Wake up systems for power saving, such like remote controllers
3. Anti-theft / Anti-tamper devices
4. Rotation Detection for monitor
5. Alarm system
6. Earthquake detecting
7. Automatically shut off for Sporting equipment
8. Entertainment device: video game consoles, toys
What is Roll Ball Sensor Switch?
Roll Ball Sensor Switch operates using the same theory as any other mechanical switches: the turning on and off action is activated whenever the metal part of a switch is touched. As for the Roll Ball Switches, a tiny ball in the switch rolls when motion is detected, triggering a contact of metal terminals or an alteration of a light path. This will generate the conductive or non-conductive status.
A number of different kinds of Roll Ball Sensor Switches are available for various applications, including the Tilt Sensor Switch, Vibration Sensor Switch, Centrifugal Force Sensor Switch and Optical Roll Ball Switch.
The traditional way to detect the tilt and vibration is using mercury switches. As mercury switch is banned by more and more governments, the use of tiny balls to trigger mechanical touch actions becomes more widespread.
