Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
AOYCN
-
Dimension(L*W*H):
-
1.1x1.1x0.96m
-
Weight (KG):
-
55 KG
-
power:
-
1.1kw
-
water consumption:
-
5-10L
-
use area:
-
100-120m2
-
fan type:
-
axial
-
vent size:
-
660x660mm
-
controller:
-
single
-
diamension:
-
1100x1100x960mm
-
air curtain size:
-
67x77x10
-
net weight:
-
57kg
Quick Details
-
Type:
-

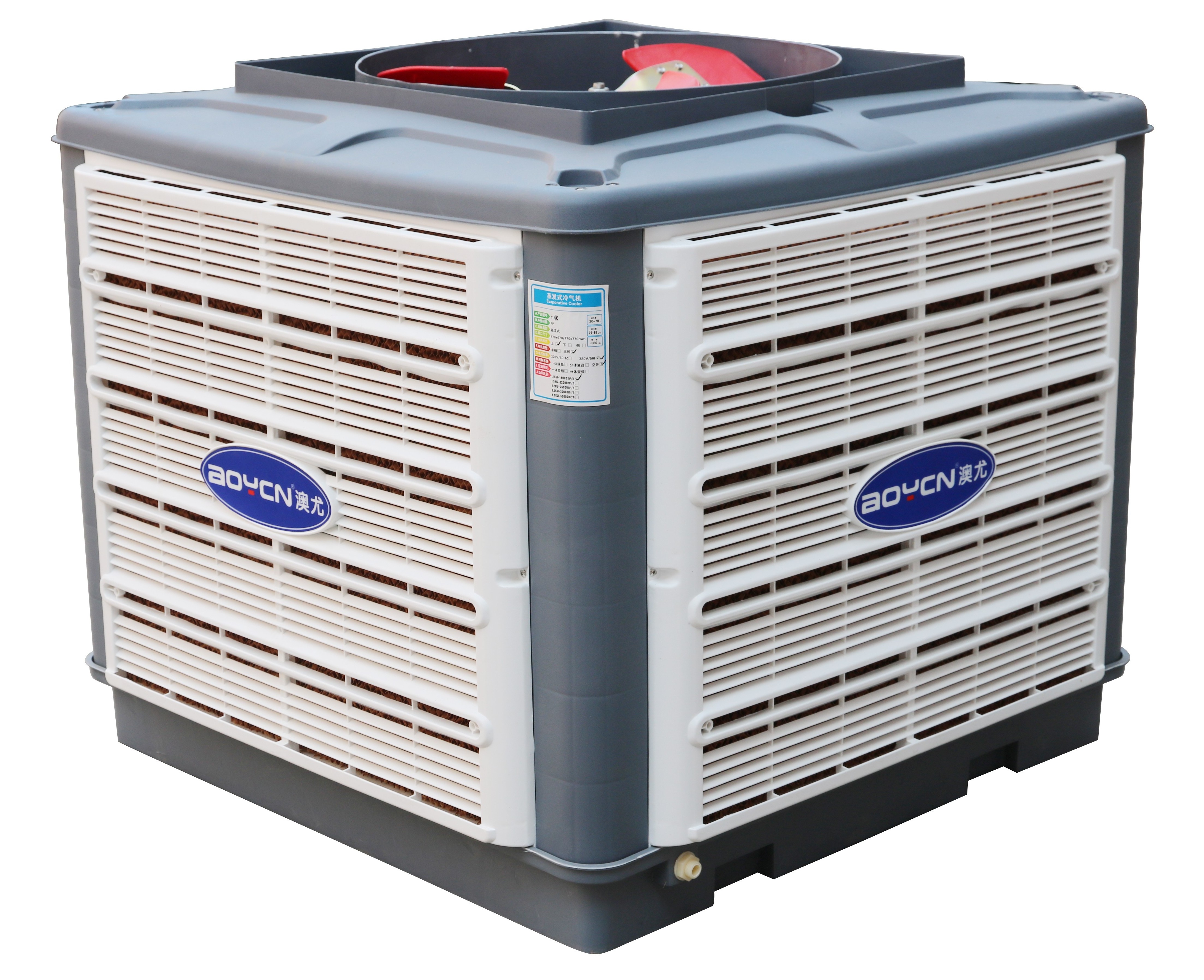

EVAPORATIVE AIR COOLER
-
Mounting:
-
Wall / Window Mount
-
Airflow:
-
18000, 18000cmh
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
AOYCN
-
Dimension(L*W*H):
-
1.1x1.1x0.96m
-
Weight (KG):
-
55 KG
-
power:
-
1.1kw
-
water consumption:
-
5-10L
-
use area:
-
100-120m2
-
fan type:
-
axial
-
vent size:
-
660x660mm
-
controller:
-
single
-
diamension:
-
1100x1100x960mm
-
air curtain size:
-
67x77x10
-
net weight:
-
57kg
|
Model/Specs
|
AY-Z18K
|
AY-Z18X
|
AY-3003B
|
AY-4001
|
|||
|
Discharge direction
|
Down Discharge
Up Discharge Side Discharge |
Up Discharge
Down Discharge Side Discharge |
Up Discharge
Down Discharge |
Up Discharge
Down Discharge |
|||
|
Dust Filter(Optional):
|
|
|
|
|
|||
|
Airflow (m3/h)
|
18000
|
22000
|
30000
|
50000
|
|||
|
Output power(KW)
|
1.1KW
|
1.5KW
|
3.0KW
|
4.0kw
|
|||
|
Electrial Source (V/Hz)
|
220V/60HZ
|
220V/60HZ
|
220V/60HZ
|
220V/60HZ
|
|||
|
Motor
|
220V/60HZ 3-phase
|
220V/60HZ 3-phase
|
220V/60HZ 3-phase
|
220V/60HZ 3-phase
|
|||
|
Fan Type
|
Axial
|
Axial
|
|
Axial
|
|||
|
Fan Speeds
|
Single-phase,
|
Single-phase,
|
Single-phase,
|
Single-phase,
|
|||
|
|
multi-speed
|
multi-speed
|
multi-speed
|
multi-speed
|
|||
|
Temperature-humidity control
|
Optional
|
Optional
|
Optional
|
Optional
|
|||
|
Pre-cooling
|
Optional
|
Optional
|
Optional
|
Optional
|
|||
|
Group-control
|
Optional
|
Optional
|
Optional
|
Optional
|
|||
|
Noise(dBA)
|
≤68
|
≤68
|
≤80
|
≤80
|
|||
|
Pad size (L*W*H) (mm)
|
670*770*100
|
670*770*100
|
880*890*100
|
1050*1000*100
|
|||
|
Vent size (L*W) (mm)
|
660*660
|
660*660
|
800*800
|
900*900
|
|||
|
Dimension(L*W*H) (mm)
|
1100*1100*980mm
|
1100*1100*980mm
|
1320*1320*1170
|
1500*1500*1450
|
|||
|
Loading quantity (1 40'HQ)
|
88 units (SKD packing)
|
88 units (SKD packing)
|
60 units (SKD packing)
|
45units (SKD packing)
|
|||
|
|
44 units (wholly packing)
|
44 units (wholly packing)
|
34 units (wholly packing)
|
|
|||
|
Character
|
1) Reduce the ambient temperature around 5-15 degree
2) Protection: pump will stop automatically to protect the pump when the water level is low and give warnings 3) Cooling pad easy to move and flush away, very convenient 4) Low running cost (save you over 80% electricity than traditional air conditioner) 5) Many many optional functions like pre-cooling function, auto-clean function, timing switch down/off, vent function, compulsively start pump, memory function, pre-dust filter, winter filter, ozone, motor filter, etc. |
|
|
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|||
100% copper wire motor
High-performance motor, high-quality copper wire, good heat dissipation and safer.
Motor protection rating: IP55. Supports voltage and frequency customized .
Motor protection rating: IP55. Supports voltage and frequency customized .
motor recket
aluminum alloy
fan blade
A variety of fan blade are available, low noise, high air volume,stable operation.Full plastic and with iron blades are supplied.
Blade quantity:three for 1.1/1.5kw, four for 2.2/3/4kw
A variety of fan blade are available, low noise, high air volume,stable operation.Full plastic and with iron blades are supplied.
Blade quantity:three for 1.1/1.5kw, four for 2.2/3/4kw
100% copper wire water pump
Low noise, energy saving, long using life.
Round shape and rectangle shape can be supplied.
12 speed frequency controller
1.5kw-220/380v
2.2kw-220/380v,3kw-380v, with remote and LCD, Temperature and humidity control can be optional
2.2kw-220/380v,3kw-380v, with remote and LCD, Temperature and humidity control can be optional
100% copper wire drain pump
Low noise, energy saving, long using life.
cooling pad
Strong water absorption, good evaporation effect, fan outlet temperature is reduced by 6-8℃.
model 7090 and 5090 can be choosen.
model 7090 and 5090 can be choosen.
dust filter
Prevent dust and impurities in the air from being sucked into the machine，Filter the dust in the air
float
new pp material
OPTIONIAL PARTS OF INDUSTRIAL AIR COOLER
motor drain valve
vertical pump
vertical pump
LCD CONTROLLER
1 SPEED CONTROLLER
FREQUENCY CONTROLLER
Installation Instructions
AIR COOLER MOULD
AIR COOLER PARTS MOULD
NEW PP MATERIAL
INJECTION SHOP
AIR COOLER INJECTION
AIR COOLER ASSEMBLE
AIR COOLER ASSEMBLE
AIR COOLER ASSEMBLE
Loading Images
CKD PACKING
AIR COOLER BODY LOADIND
CKD PACKING
AIR COOLER SIDE PANEL LOADING
CKD PACKING
AIR COOLER MOTOR LOADING
SKD PACKING
SKD PACKING
portable air cooler
portable air cooler
Certifications
