Quick Details
-
Brand Name:
-
PYM
-
Application:
-
Plastic Recycling
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
4000*1800*3800mm
-
Weight (T):
-
3
-
Applicable Industries:
-
Plastic machinery
-
After-sales Service Provided:
-
Online support
-
Brand name:
-
PYM
-
Model:
-
SJ-90
-
Screw Diameter:
-
90
-
Screw L/D Ratio:
-
20:1-22:1
-
Screw Rotary Speed:
-
10-100r/min
-
Main Motor Power:
-
22kw
-
Output:
-
68kg/hr
-
Machine weight:
-
3000kg
-
Cover Dimension:
-
4000*1500*1800
Quick Details
-
Machine Type:
-
PP PE Bottle Washing Line
-
Max.Production Capacity (kg/h):
-
500
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PYM
-
Application:
-
Plastic Recycling
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
4000*1800*3800mm
-
Weight (T):
-
3
-
Applicable Industries:
-
Plastic machinery
-
After-sales Service Provided:
-
Online support
-
Brand name:
-
PYM
-
Model:
-
SJ-90
-
Screw Diameter:
-
90
-
Screw L/D Ratio:
-
20:1-22:1
-
Screw Rotary Speed:
-
10-100r/min
-
Main Motor Power:
-
22kw
-
Output:
-
68kg/hr
-
Machine weight:
-
3000kg
-
Cover Dimension:
-
4000*1500*1800

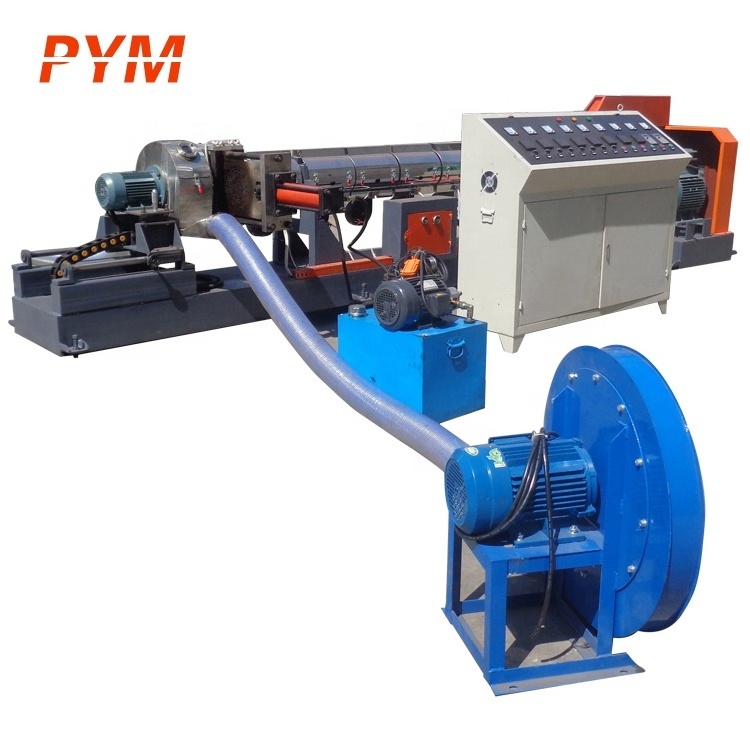

Plastic bottle recycling machine or waste plastic recycling
1. Recycling machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE and PP, etc. Its equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control .
2. The granulating crusher uses adjustable speed motor, pelleting with and extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and favorable economic benefit .
Main technical parameters:
|
Model |
SJ-B90 |
SJ-B100 |
SJ-B110 |
SJ-B120 |
|
Type Diameter of Screw Stem |
φ90 |
φ100 |
φ110 |
φ120 |
|
Major Diameter Ratio of Screw Stem |
L/D 20:1 -22:1 |
L/D 20:1 -22:1 |
L/D 20:1 -22:1 |
L/D 20:1 -22:1 |
|
Rational Speed of Screw Stem |
10-100r/min |
10-100r/min |
10-100r/min |
10-100r/min |
|
Main Motor Power |
22kw |
30kw |
37kw |
45kw |
|
Output |
68kg /h |
95kg /h |
120kg /h |
135kg /h |
|
Weight of overall(kg) |
2600kg |
2800kg |
3000kg |
3200kg |
|
Cover dimensions (l×w×h) (mm) |
4000×1500×1800 |
4000×1500×1800 |
4000×1500×1800 |
4000×1500×1800 |
We have more than one year guarantee, if there is any problem,you can contact with us at any time, we will reply you as soon as possible !
