- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
bobet
-
Model Number:
-
BLDC60-300WRV30
-
Torque:
-
60NM
-
Name:
-

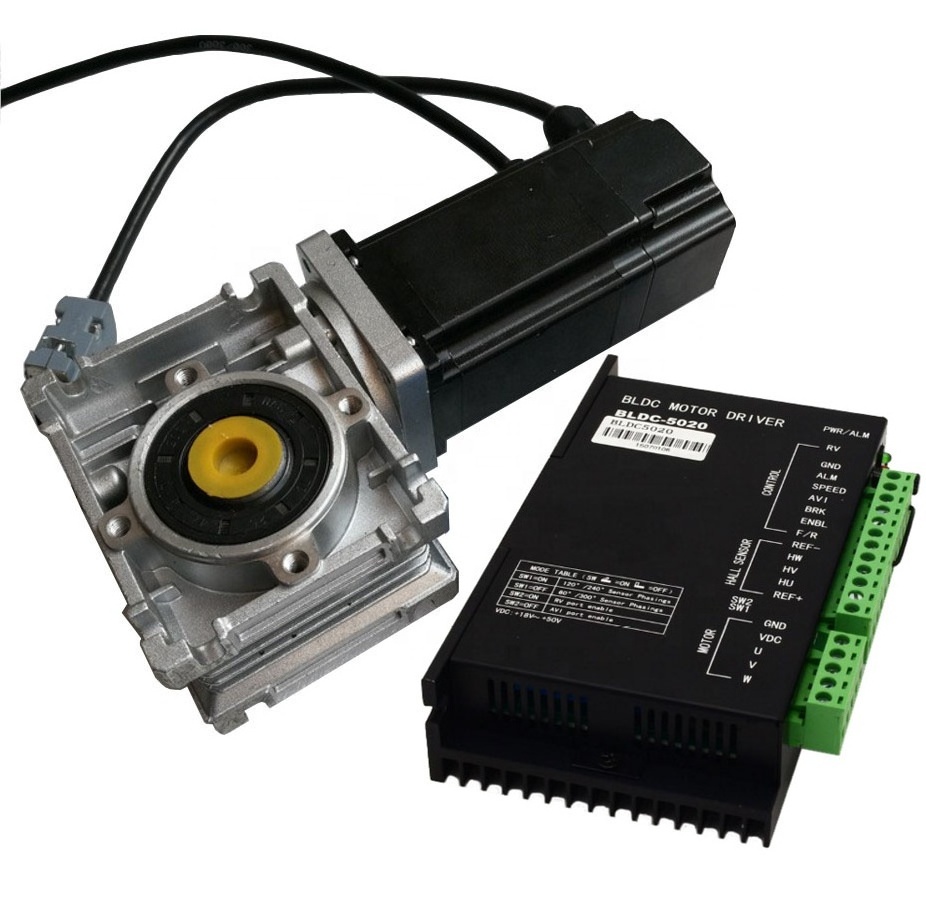

36V 300W brushless dc motor with nmrv reducer
-
Product name:
-
Nema 24 worm geared bldc motor
-
torque:
-
600kgcm
-
key words:
-
brushless dc motor,geared bldc motor 300w
-
Application:
-
industrial cnc,agv,automatic machine
-
Frame:
-
Nema 24 (60*60mm)
-
No of leads:
-
3/5
-
power:
-
300w
-
gearbox:
-
NMRV30
-
Ratio:
-
5-80
Quick Details
-
Speed(RPM):
-
3000/200
-
Continuous Current(A):
-
12
-
Efficiency:
-
IE 4
-
Place of Origin:
-
China
-
Brand Name:
-
bobet
-
Model Number:
-
BLDC60-300WRV30
-
Torque:
-
60NM
-
Name:
-
36V 300W brushless dc motor with nmrv reducer
-
Product name:
-
Nema 24 worm geared bldc motor
-
torque:
-
600kgcm
-
key words:
-
brushless dc motor,geared bldc motor 300w
-
Application:
-
industrial cnc,agv,automatic machine
-
Frame:
-
Nema 24 (60*60mm)
-
No of leads:
-
3/5
-
power:
-
300w
-
gearbox:
-
NMRV30
-
Ratio:
-
5-80
Electric agv modbus rtu remote communication vary speed and direction with hall brushless dc motor 300w
Product details
| Product title | Electric agv modbus rtu remote communication vary speed and direction with hall brushless 24V 36V 48V dc motor 300w |
| Motor application | household electrical appliances,smart machine,smart cars,agv,car,cart,lock,robot |
| Motor Feature | high torque,low noise,good quality |
| Product Keywords | Widely used for electric car and agv speed adjustable modbus 485 remote control 3phase with hall brushless 48v dc motor 400w,36v 24v or 60v 90v,220v are available |
| Motor Alias name | dc engine,400w dc motor,375w 2500rpm dc motor,3000rpm 12kgcm brushless dc motor |
The model in red is standard type for us,other parameters can be customized.
| Model name |
Rated voltage (VDC)
|
No load speed (RPM) |
Rated torque (N.m) |
Noimal power (Watt) |
Noimal current (Amp.) |
Weight (kg) |
Shaft size (DxL) |
|
BLDC60-300-36
|
36 | 3000 | 0.93 | 300 | 10 | 1.5 | customizable |
|
BLDC60-300-48
|
48 | 3000 | 0.95 | 300 | 7.5 | 2 | customizable |
Gearboxes for such electric bldc motors,
