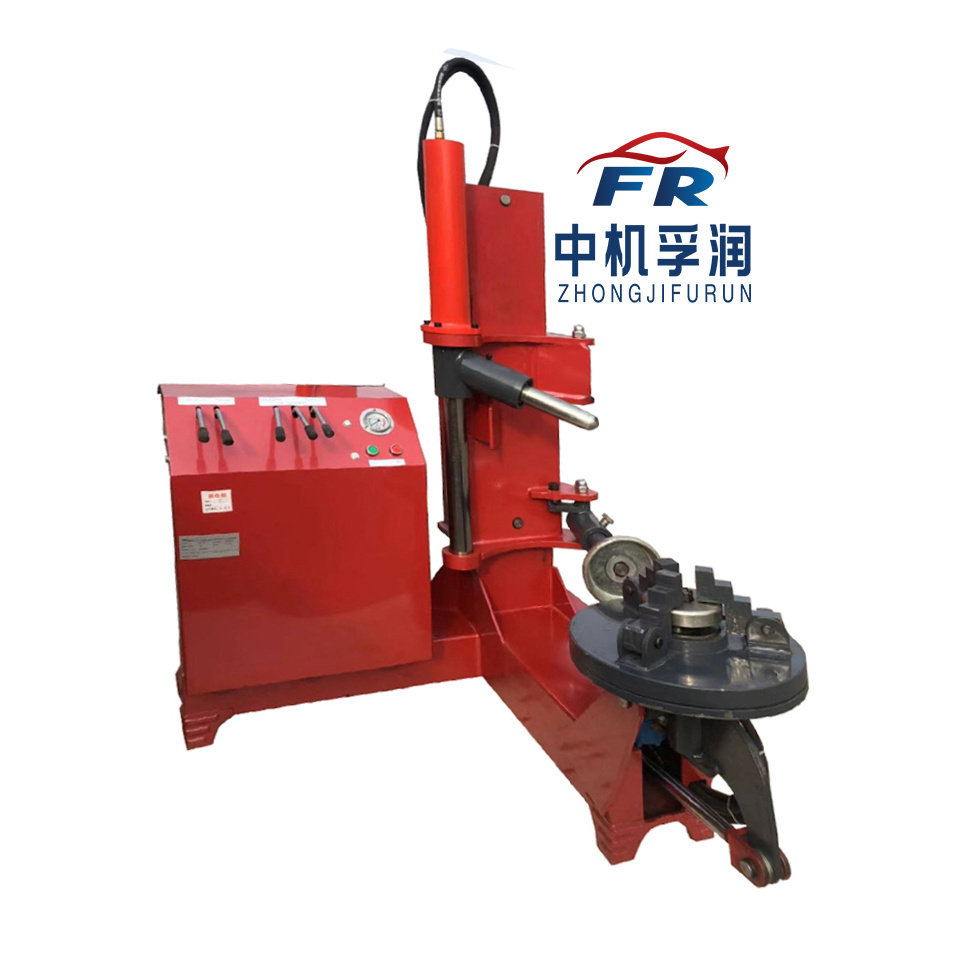

This tire changer can dismantle various models tires of various heavy duty vehicles, it is suitable for tires with junk ring and
mound layer, tires of agricultural vehicles and engineering vehicles, like Dongfeng, Liberate, Yellow river,the North, golden
dragon, Volvo,etc. This tire changer is with character of saving time and labour, high working efficiency, it does not damage the tire mouth and rim, it is an ideal equipment for tire repairing and maintenance.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
zhongjifurun
-
Model Number:
-
BTJ-2
-
Warranty:
-
12 Months Months
-
Color:
-
Red
-
Max. wheel diameter:
-
22.5 Inch
-
Weight:
-
425kg
-
Function:
-
Heavy Duty Truck Tire Changer
-
Packing:
-
Wooden Case
-
Delivery Time:
-
15-30days
-
Dimension(L*W*H):
-
1200MM*1200MM*2300MM
Quick Details
-
Motor Power:
-
3kw
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
220V/380V, 380V, 50Hz
-
Place of Origin:
-
China
-
Brand Name:
-
zhongjifurun
-
Model Number:
-
BTJ-2
-
Warranty:
-
12 Months Months
-
Color:
-
Red
-
Max. wheel diameter:
-
22.5 Inch
-
Weight:
-
425kg
-
Function:
-
Heavy Duty Truck Tire Changer
-
Packing:
-
Wooden Case
-
Delivery Time:
-
15-30days
-
Dimension(L*W*H):
-
1200MM*1200MM*2300MM
Product Description
Multiple Function Tyre Changing Machine Car Tyre Changer
Detailed Images
Features:
1.Three-way hydraulic system with fast response speed and wide application range
2. Can pull out 22.5 vacuum tires, chuck tires, use labor and labor
3. The use of mechanical tire pressure, no harm to the tires and rims, to ensure the life of the tires and steel rims
Instructions:
1. First connect the machine to a 380V point source, and start the switch to ensure that the machine can work normally
2.Check if the tire frame is deformed before replacing the tire
3. Unscrew the air valve to release the tire air pressure, press the turn-down control switch, put the tire card down, put the tire on the chuck, fix the disc card, and control the switch to return the chuck to position.
4. Control the lowering switch, use the tire pressure lever to press the tire first, and press the rotation button to make the tire rotate for one week, and then press the tire completely
5. Use the tire hook and control switch to hook the tire. Turn the tire so that the tire is slowly hooked out along with the rotation. When the tire is all hooked out, stop turning and complete the tire removal.
6, tire installation, using a tire pressure rod, press on the tire, rotate the tire, and install the tire on the rim with rotation.
1.Three-way hydraulic system with fast response speed and wide application range
2. Can pull out 22.5 vacuum tires, chuck tires, use labor and labor
3. The use of mechanical tire pressure, no harm to the tires and rims, to ensure the life of the tires and steel rims
Instructions:
1. First connect the machine to a 380V point source, and start the switch to ensure that the machine can work normally
2.Check if the tire frame is deformed before replacing the tire
3. Unscrew the air valve to release the tire air pressure, press the turn-down control switch, put the tire card down, put the tire on the chuck, fix the disc card, and control the switch to return the chuck to position.
4. Control the lowering switch, use the tire pressure lever to press the tire first, and press the rotation button to make the tire rotate for one week, and then press the tire completely
5. Use the tire hook and control switch to hook the tire. Turn the tire so that the tire is slowly hooked out along with the rotation. When the tire is all hooked out, stop turning and complete the tire removal.
6, tire installation, using a tire pressure rod, press on the tire, rotate the tire, and install the tire on the rim with rotation.
Size Information
Size Chart of This Design
|
Supply voltage
|
380V
|
|
This product is only suitable
|
for large vacuum tire R22.5
|
|
Cart tire with inner tube
|
10.00 means the tire section width 10in R means the radial tire
20 means rim diameter 20in 1in = 2.54cm |
|
Motor Power
|
3kw
|
|
Applicable tire range
|
Vacuum tire 22.5
Chuck tire 10.0r20 |
|
product weight
|
450kg
|
|
Product size (length width height)
|
Product size (length width height)
|
|
product material
|
45 steel
|
