single station (hydraulic type, climb type ) double station ( non stop auto splicing system, non stop manual splicing system ) as option
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
31000*3700*4500mm
-
Weight:
-
25000 KG
-
Product name:
-
BOPP coating machine
-
MOQ:
-
1 set
-
Dry way:
-
Hot air
-
After Warranty Service:
-
Video technical support
Quick Details
-
Applicable Industries:
-
Other
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BENYUE
-
Dimension(L*W*H):
-
31000*3700*4500mm
-
Weight:
-
25000 KG
-
Product name:
-
BOPP coating machine
-
MOQ:
-
1 set
-
Dry way:
-
Hot air
-
After Warranty Service:
-
Video technical support
|

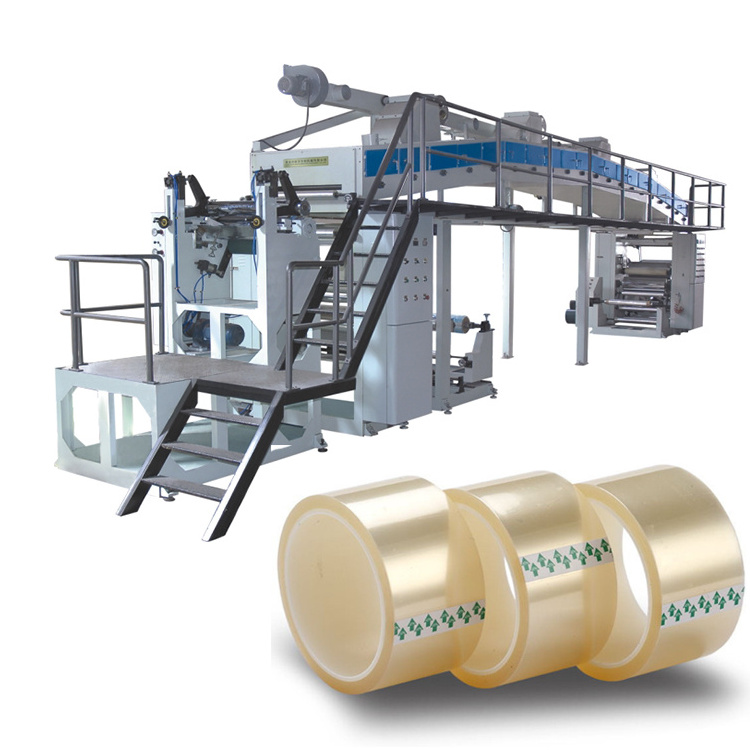

Model
|
TB600-2500 BOPP coating machine
|
|
Coating method
|
comma blade coating / gravure roller coating/ mayer bar coating /air knife coating / five roller coating / blade coating / slot die coating /micro gravure coating （Can be customized）
|
|
Coating width
|
600-2500MM （Can be customized）
|
|
Unwinding diameter
|
600-1500MM （Can be customized）
|
|
Winding diameter
|
600-1500MM （Can be customized）
|
|
Coating thickness
|
2-300g/square meter
|
|
Coating speed
|
10-300m / min (depending on material)
|
|
Heating method
|
Electric heating, oil heating and natural gas heating
|
Suitable for pvc tape、medical tape、bopp tape、double side tape、paper masking tape and so on
Rewinding
Coating
comma blade coating / gravure roller coating/ mayer bar coating /air knife coating / five roller coating / blade coating / slot
die coating /micro gravure coating （Can be customized）
die coating /micro gravure coating （Can be customized）
Oven heating
oven heating method: electric heating, conduction oil heating, gas heating, steam heating etc can be choosed by customer
Cooling
high presicion up press traction device, steel roller cooling adopt water cycle to make the film surface more smooth and neat. to reach good cooling effect.
Unwinding:
single station (hydraulic type, climb type ) double station ( non stop auto splicing system, non stop manual splicing system ) as option
Accumulator
Touch screen
Splicing table
Machine Spec.
:
1. The whole machine is controlled by 5 frequency conversion motor, and the tension of the whole machine (unwinding, coating, traction and winding) is automatically controlled by Western door PLC system. The reliability of the tension of the whole machine is improved through man-machine interface touch screen control and display.
2. The discharge rack is in the form of hydraulic lifting single station and adopts magnetic powder automatic tension control.
3. The clutch adjustment of comma scraper roll adopts pneumatic swing arm type. The swing arm is equipped with micro adjustment device for control, and the thickness of glue is controlled by feeler gauge.
4. Anilox coating mode: the coating scraper shaft adopts heavy-duty double shaft mechanical independent swimming. The scraper adjustment mode is manual with pneumatic, and the angle can be adjusted arbitrarily. The coating amount depends on the mesh line of the anilox roll. The anilox roll with different mesh line can be changed for different coating amount.
5. The oven is 18m, with independent temperature control in 9 sections. The heating adopts heat transfer oil circulation heating, hot air entering drying system and adjustable internal circulation suction and exhaust device. The air inlet and exhaust wind is strong and the drying is complete.
6. The guide wheel in the oven is actively synchronized with the host, and the transmission adopts synchronous belt wheel transmission to reduce material tension and deformation. The air cylinder open top oven and membrane piercing operation platform make it easy for operators to work.
7. The intermediate tension of coating roll - traction steel roll is synchronized with floating swing arm type, which is automatically controlled by PLC;
8. Automatic meter speed control device;
9. EPC edging machine is used for deviation correction to ensure the tidiness of material winding.
10. The key type inflatable shaft is used for retraction and release, which is convenient for loading and unloading operation.
11. High precision up pressure traction device, water circulation type is adopted for steel roll cooling, and the film is smoother, more scraped and more cooling effect is achieved through the cooling roll.
12. The material receiving rack is in the form of hydraulic lifting single station. The winding adopts frequency conversion motor, and the vector frequency converter is controlled by PLC computer system
