Quick Details
-
Product Name:
-
video wall displays controller
-
Resolution:
-
4096x2160@60Hz
-
Rotation Function:
-
90°,180°,270°
-
Features:
-
Seamless switching, screen cropping, etc.
-
Function:
-
POP,PIP,Roaming, Cross-screen, Zoom,ect
-
Control method:
-
Infrared remote control, serial port RS232, PC upper computer
-
Splicing mode:
-
16 stitching modes in 9 screens
-
Input:
-
4 HDMI2.0
-
Output:
-
9 HDMI1.3
-
Image effect adjustment:
-
Color, saturation, etc.
Quick Details
-
Model Number:
-
BIT-VP-U1-IC409Pro
-
Brand Name:
-
Bitvisus
-
Place of Origin:
-
China
-
Product Name:
-
video wall displays controller
-
Resolution:
-
4096x2160@60Hz
-
Rotation Function:
-
90°,180°,270°
-
Features:
-
Seamless switching, screen cropping, etc.
-
Function:
-
POP,PIP,Roaming, Cross-screen, Zoom,ect
-
Control method:
-
Infrared remote control, serial port RS232, PC upper computer
-
Splicing mode:
-
16 stitching modes in 9 screens
-
Input:
-
4 HDMI2.0
-
Output:
-
9 HDMI1.3
-
Image effect adjustment:
-
Color, saturation, etc.
Product Description

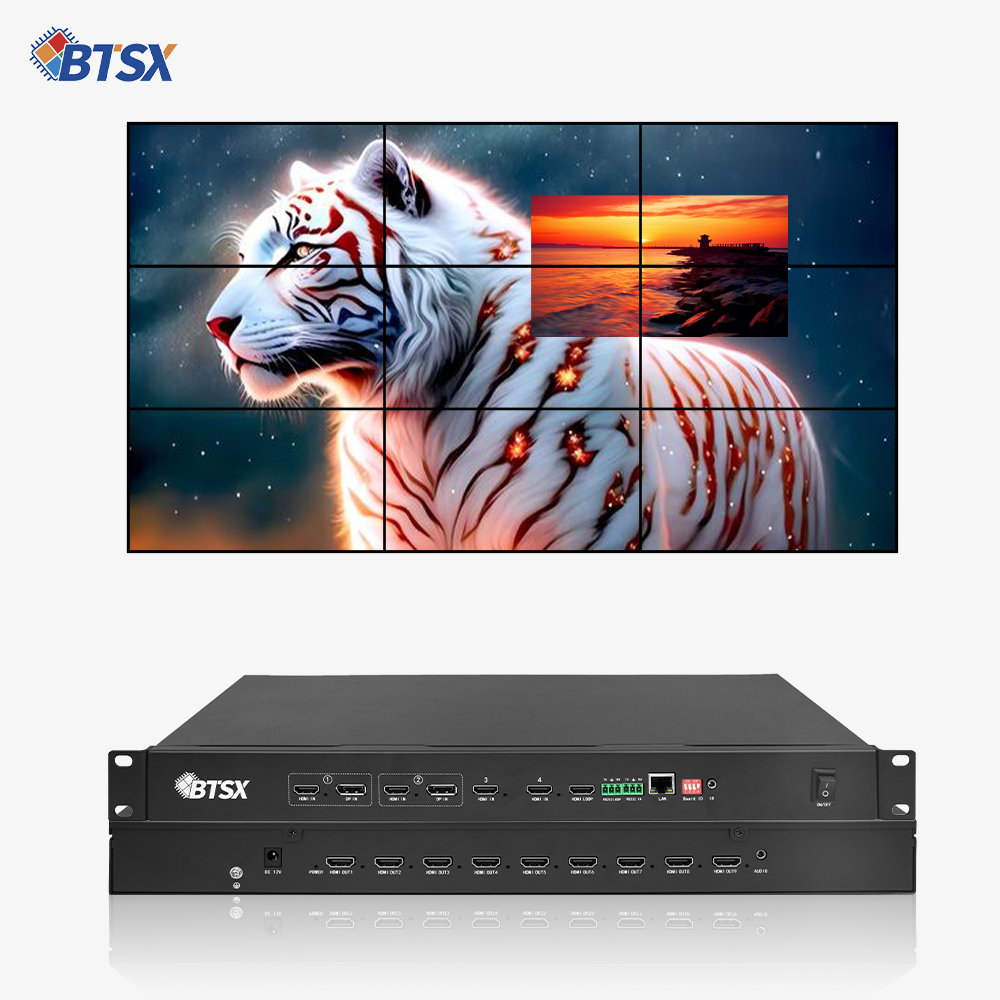

4k60 video processor HDMI switcher
☞
Supports 4 channels of
4K*2K@60
input,each input port burns different resolutions,and supports
EDID management
;
☞
Supports multi-window control,can realize various functions such as
POP
tile mode,
PIP
overlay mode,arbitrary picture overlay,roaming,cross-screen,zoom
,etc;
☞
Flexible control (infrared remote control, RS232 serial port control,TCP/IP control methods)
;
☞
One key to switch the signal source，Supports
seamless real-time switching
of signals;
☞
Supports 16 splicing modes such as horizontal screen,vertical screen,etc;
☞
Support DHCP，Support input can be
rotated 90°,180°,270°
,and the first line of output can be rotated 180°;
☞
Supports image effect color,saturation and other parameter adjustment functions;
☞
Audio separation (3.5mm audio port) + audio follow out;
☞
With screen freezing function and screen mirroring function,gamma mode and panel.
Typical application
Mainly used in ultra-high-definition video surveillance,ultra-large screen walls,large advertising screens in stores,large exhibition screens and other industry applications.
☞
Contact customers
Welcome to consult the project function requirements!
Product Details
Specification
|
Product Name
|
4K60 Video Wall Processor Controller
|
|
Product features
|
1.Support EDID
2.Seamless switching
3.Supports signal cropping function
4.Supports functions such as hot swapping，power-off memory
5.Supports host computer readback,plan saving
|
|
Accessories list
|
12V/5A power supply x1;
IR receiver x1;
Remote control x1;
Certificate x1;
Warranty card x1;
USB to RS232 serial cable(optional)
|
|
Functions
|
With screen freezing function and screen mirroring function,gamma mode and panel gamma mode
|
|
Audio
|
Audio output supports HDMI OUT1 or ALL ON or ALL OFF
|
|
Power supply
|
DC 12V/5A
|
|
Power consumption
|
36W
|
|
Product Size
|
290mm*184mm*28mm
|
|
Product Weight
|
2KG
|
|
Certification
|
CE,FCC,ROHS
|
|
Support
|
ODM,OEM
|
|
Warranty
|
3 year
|
